Most powerful and versatile saw in is category, with unrivalled accuracy.
Benefits
Unrivalled mechanics

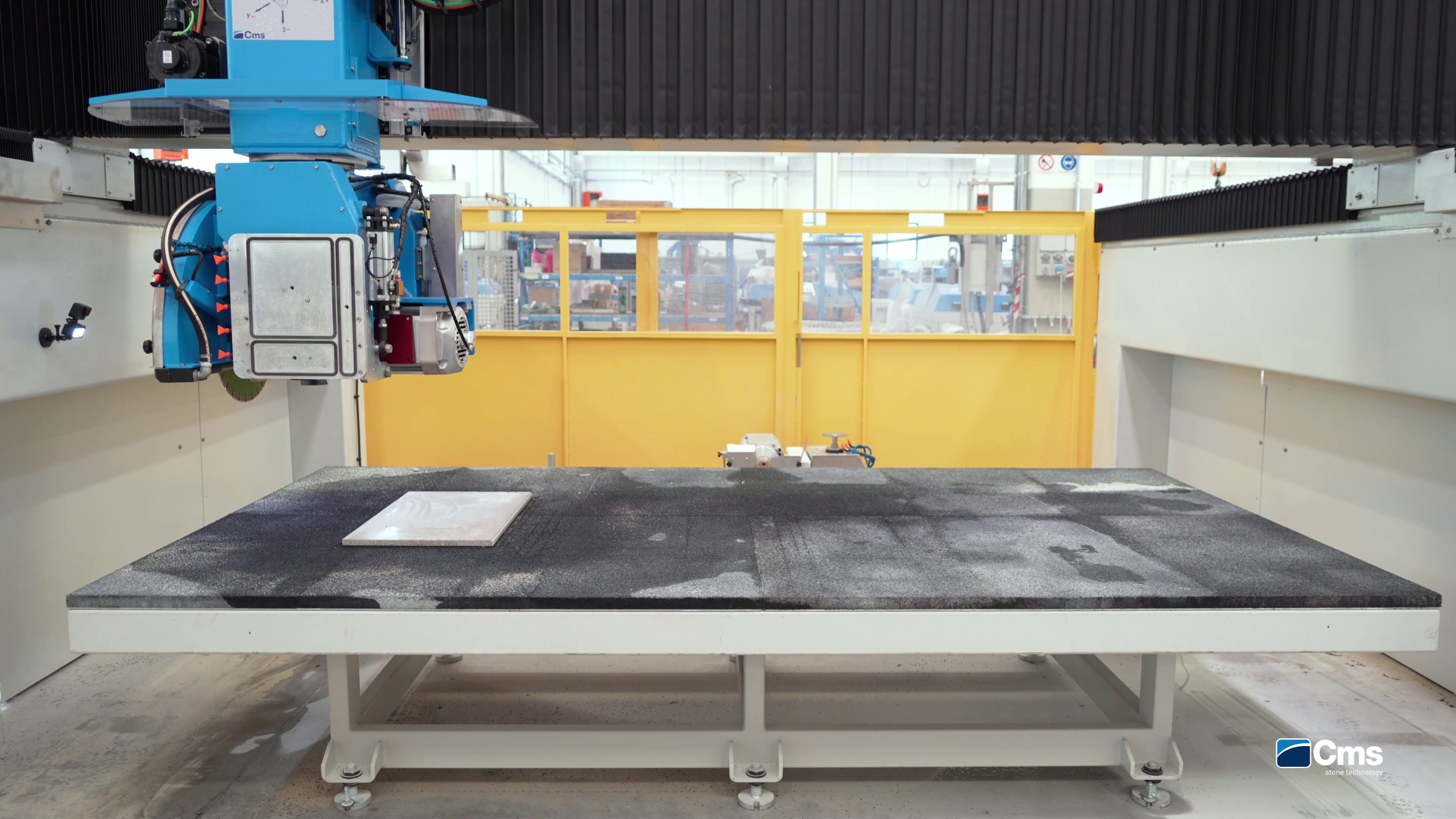

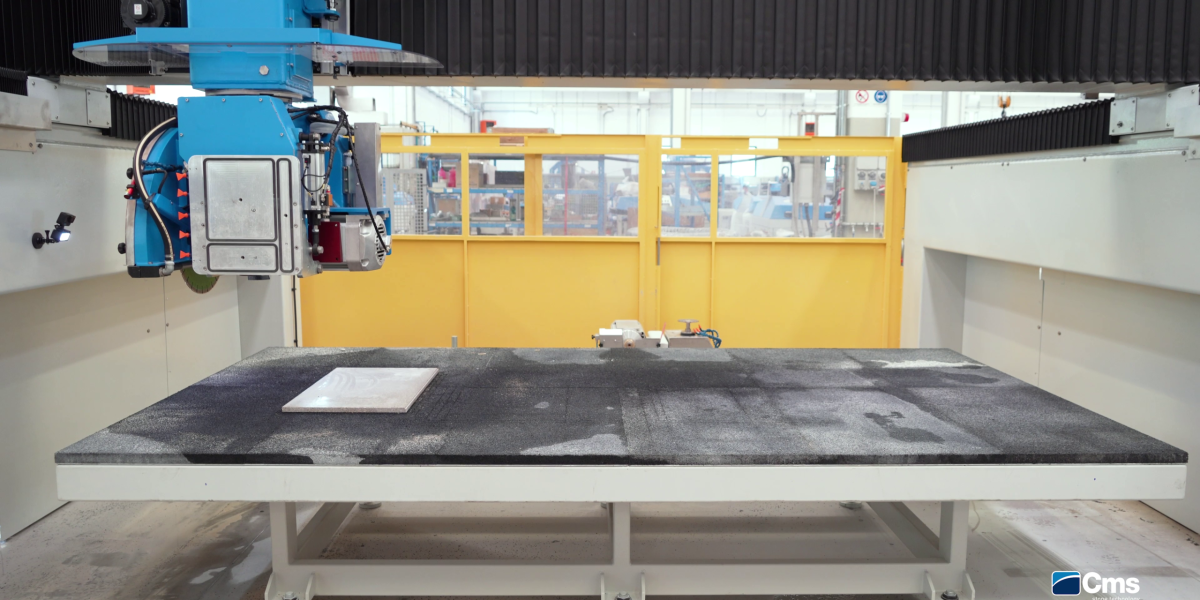

Open frame version, to install on concrete or carpentry shoulders guaranteeing stability and rigidity to accomplish the most difficult processing and to ensure long longevity.

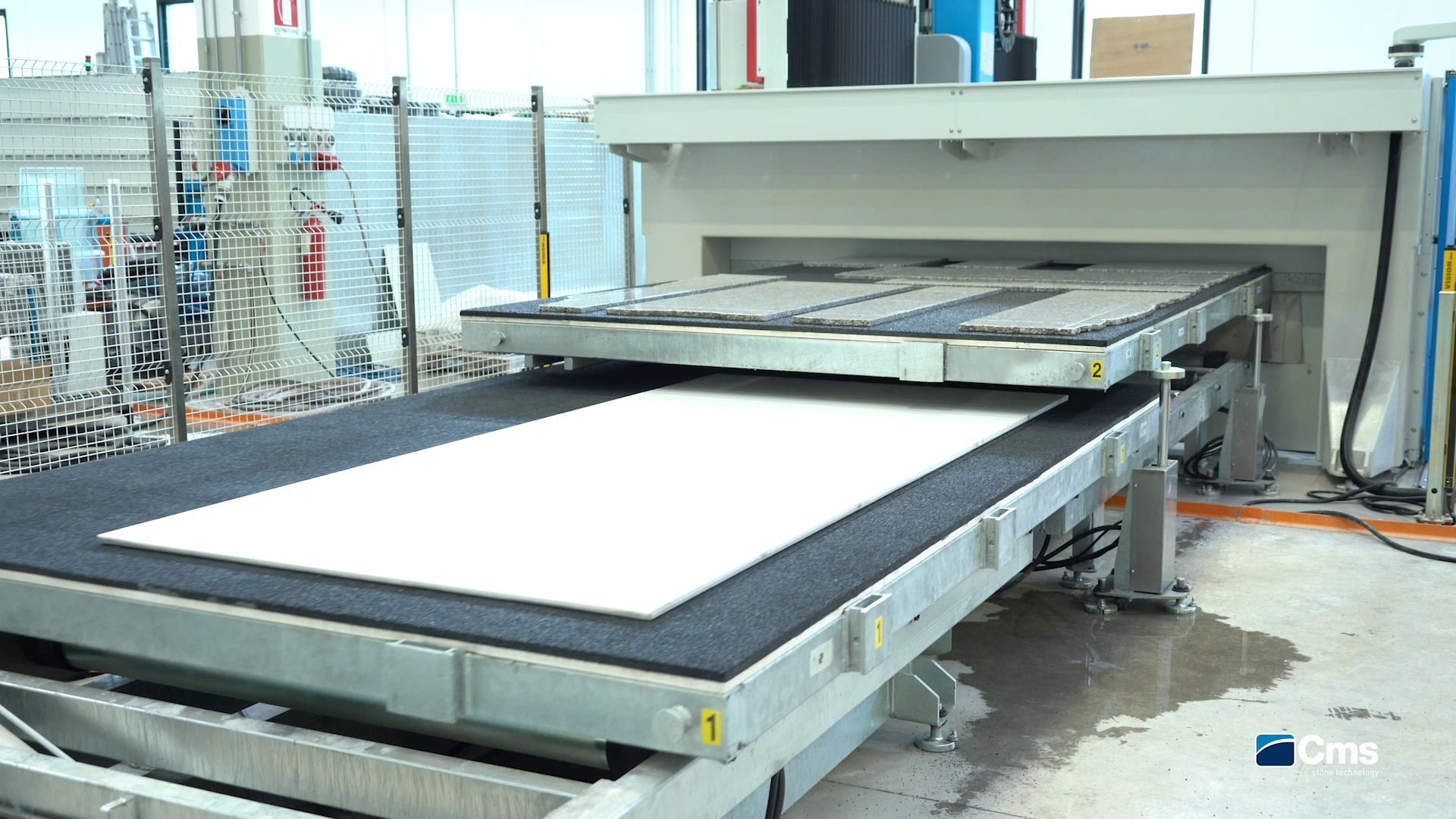

Modular design
The Formax is built on a flexible modular architecture, allowing multiple configurable options to be added or removed as needed. This design enables easy customization, scalability, and future expansion, ensuring the system adapts efficiently to different applications, evolving requirements, and technological advancements without compromising performance or reliability.

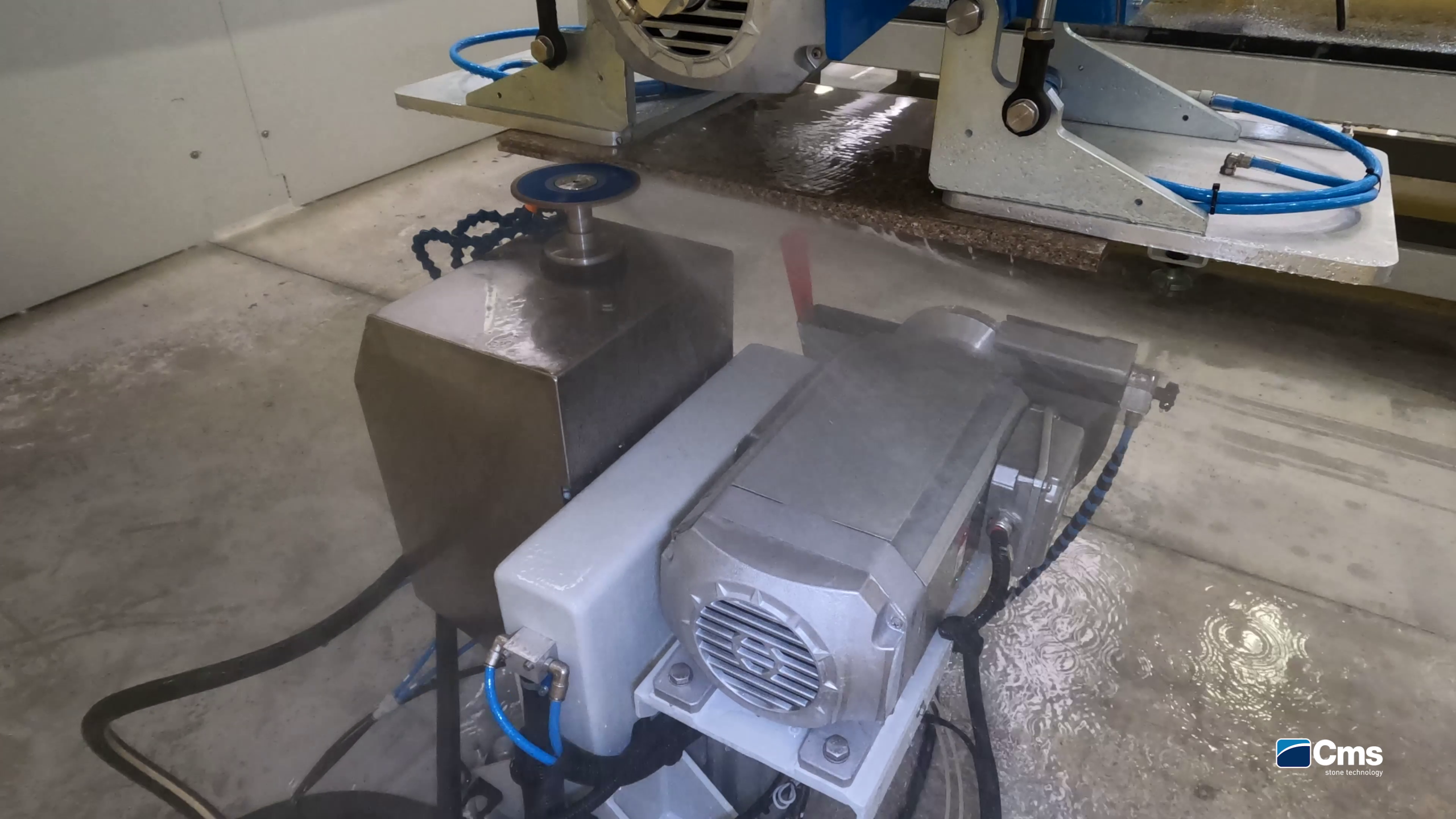

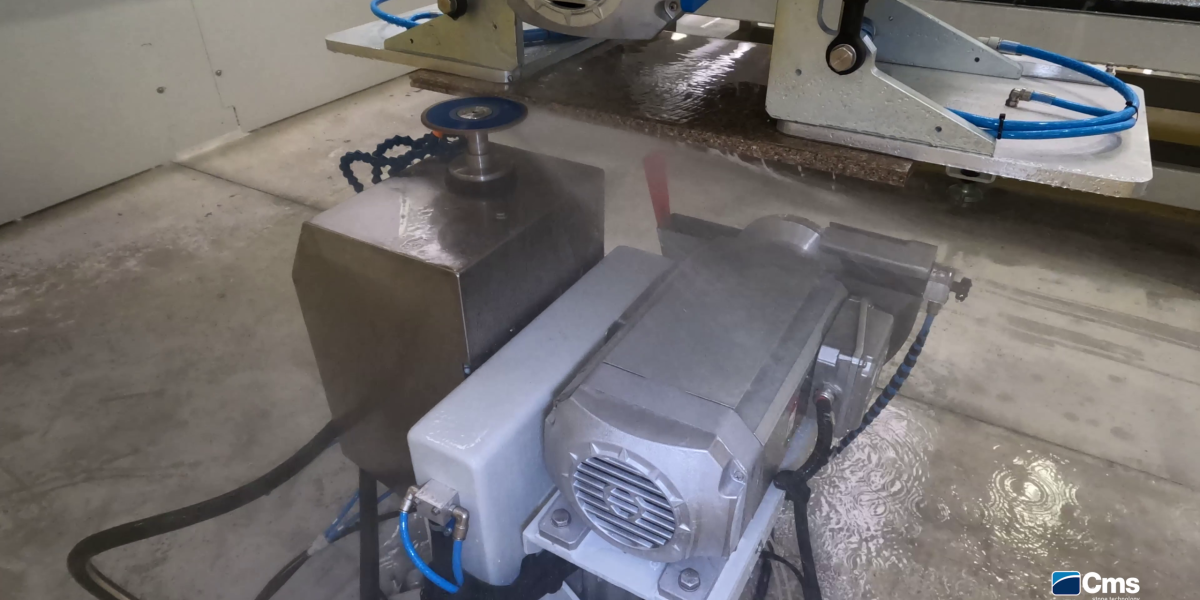

Optinial under spindle
The Formax can be equipped with an optional underside spindle, enabling simultaneous top and bottom machining operations. This option improves processing efficiency, reduces cycle time, and enhances accuracy by allowing complex operations to be completed in a single setup while maintaining high precision and consistent results.

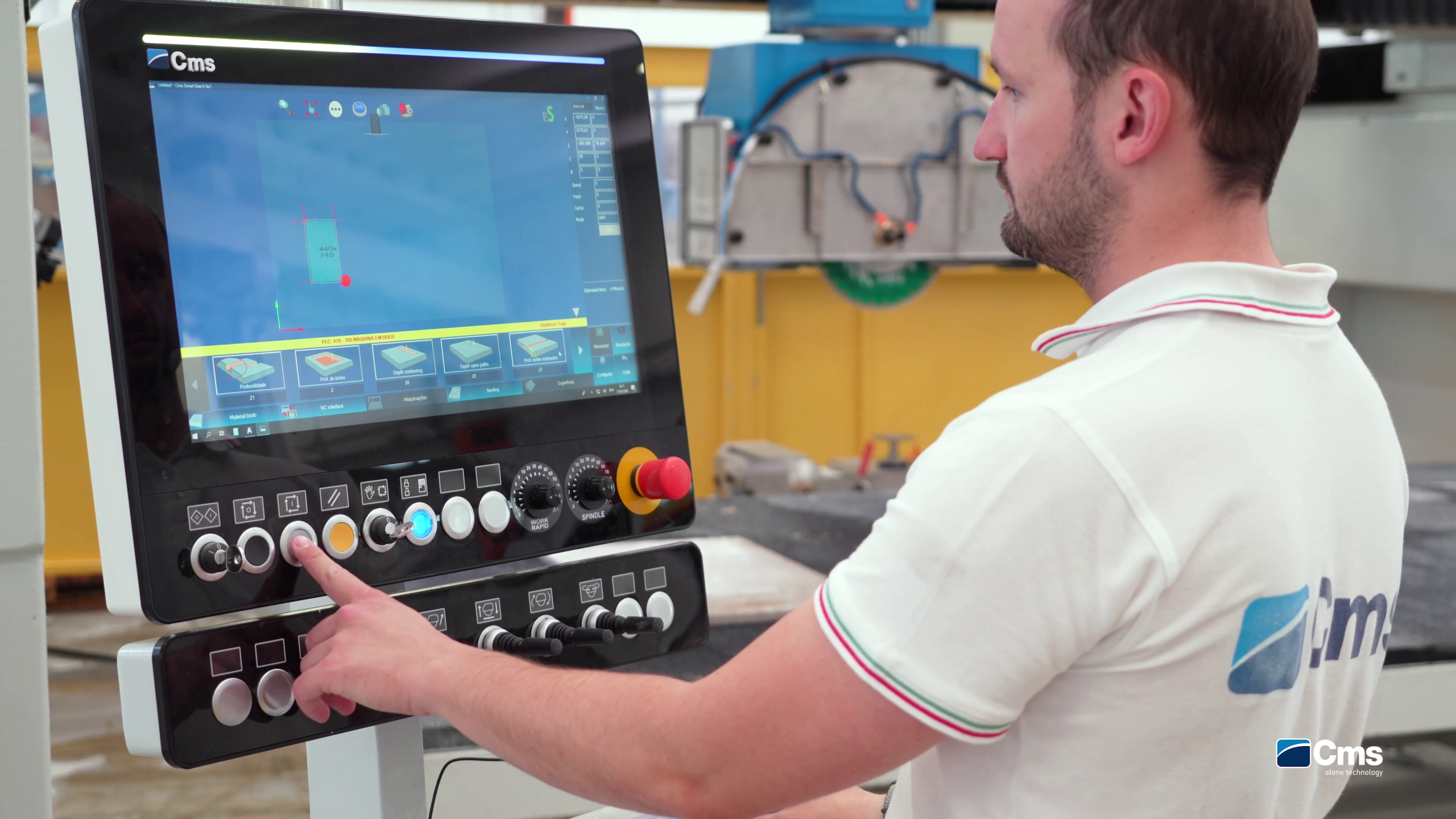

Easy programing
Simple and intuitive programming, thanks to the software installed on-board the machine.
brembana formax

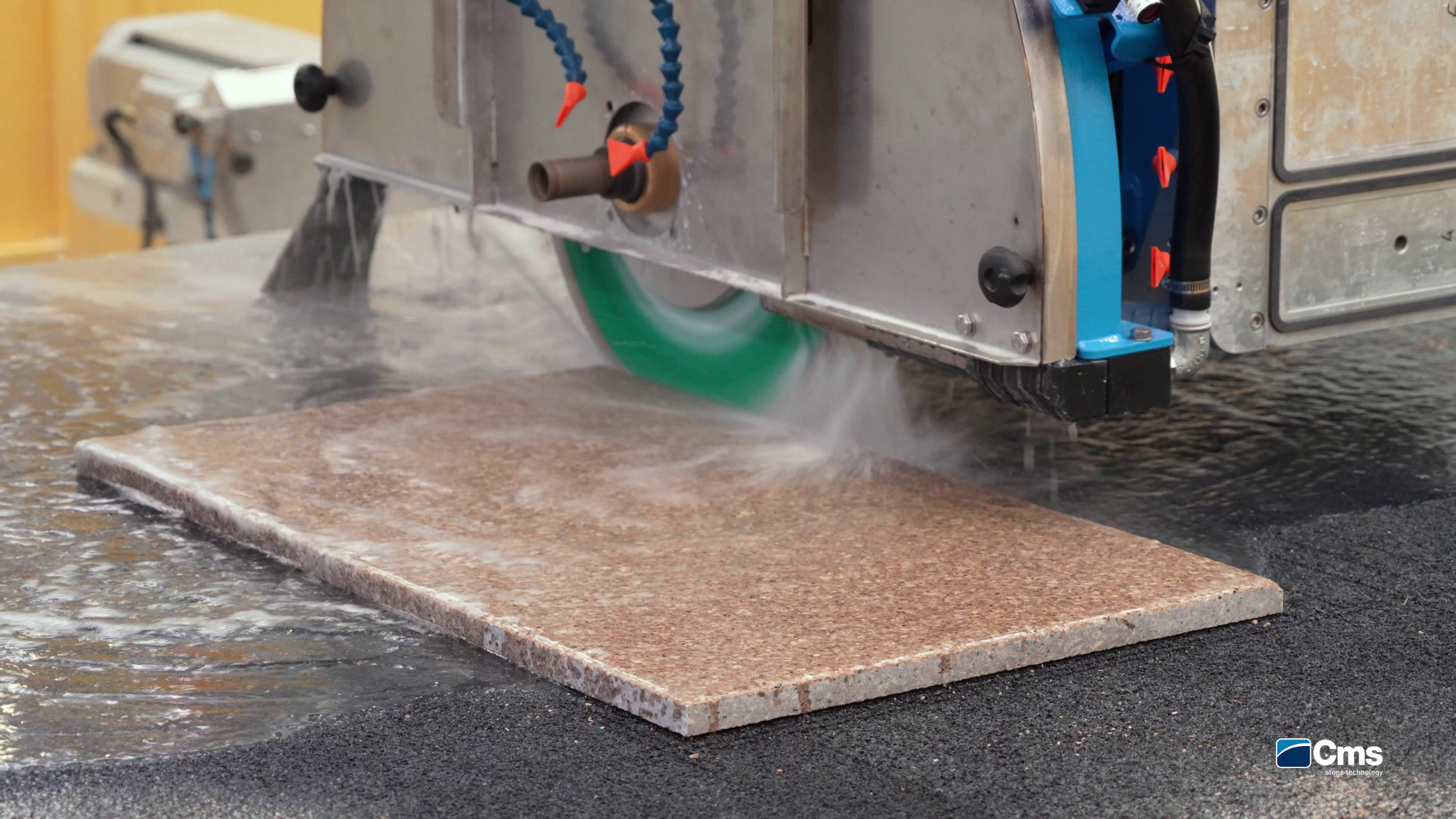

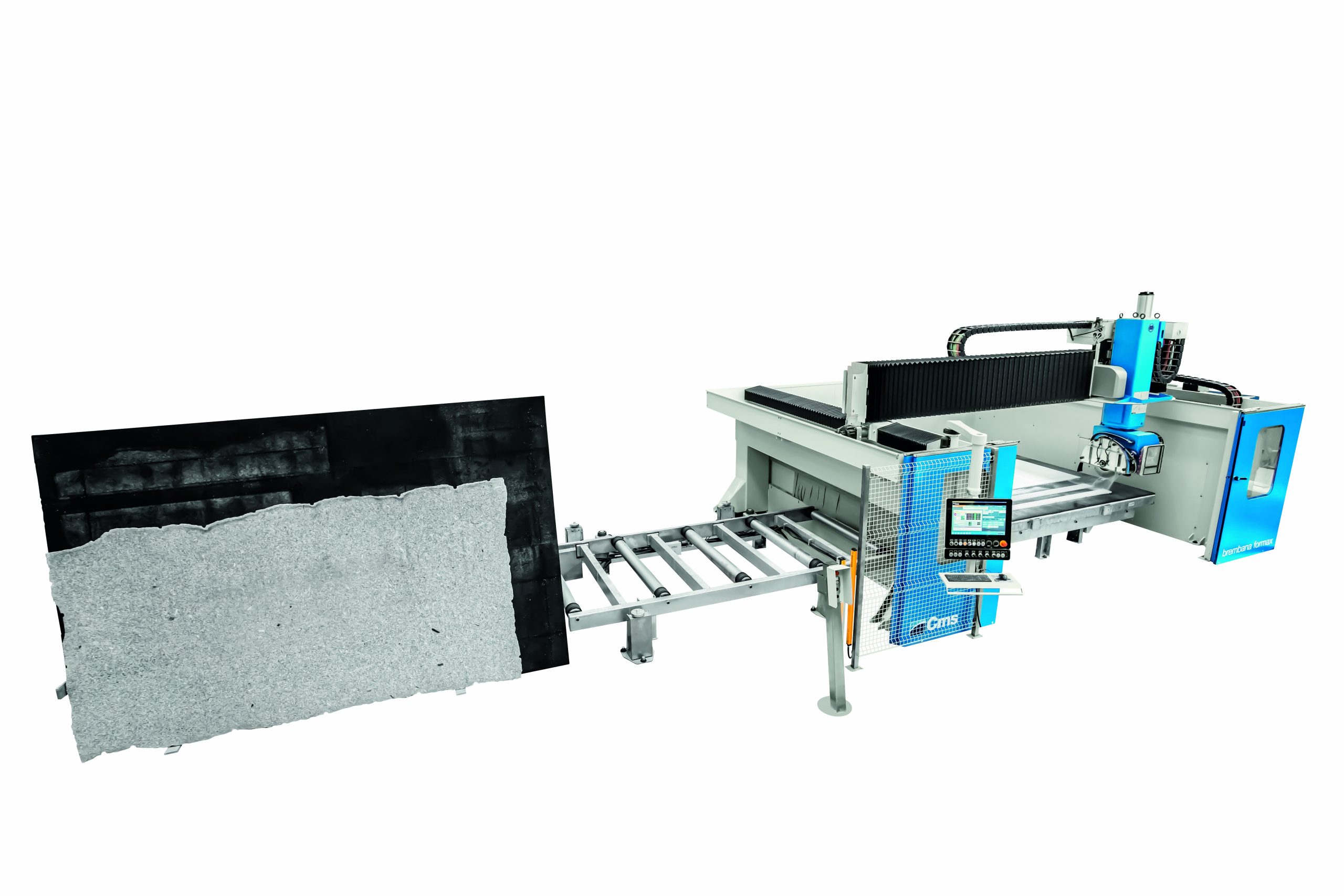

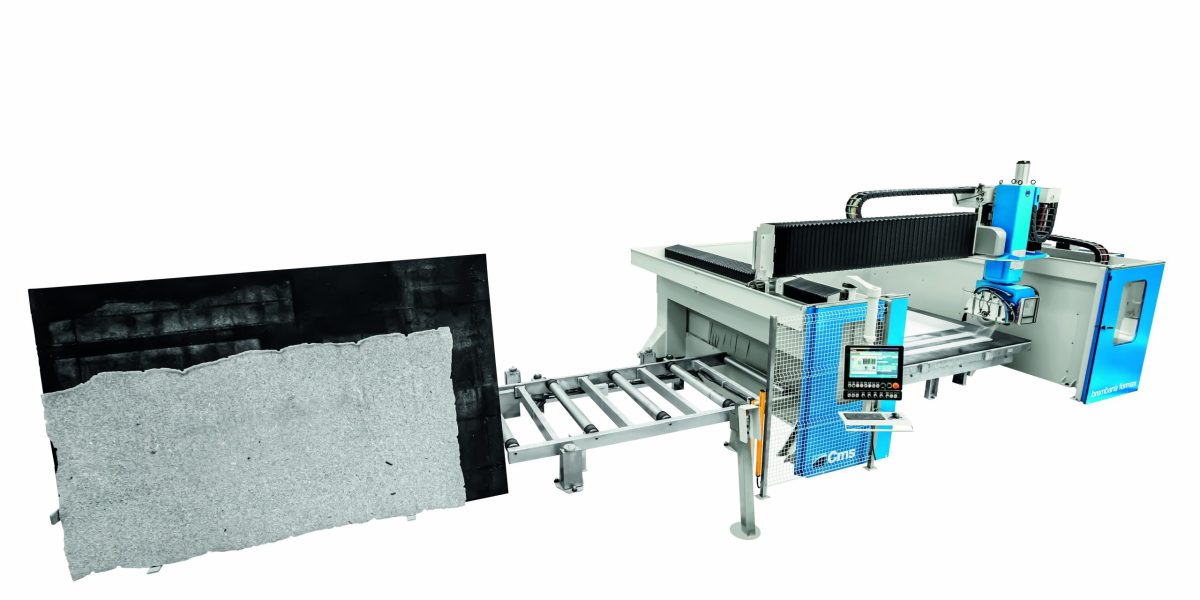

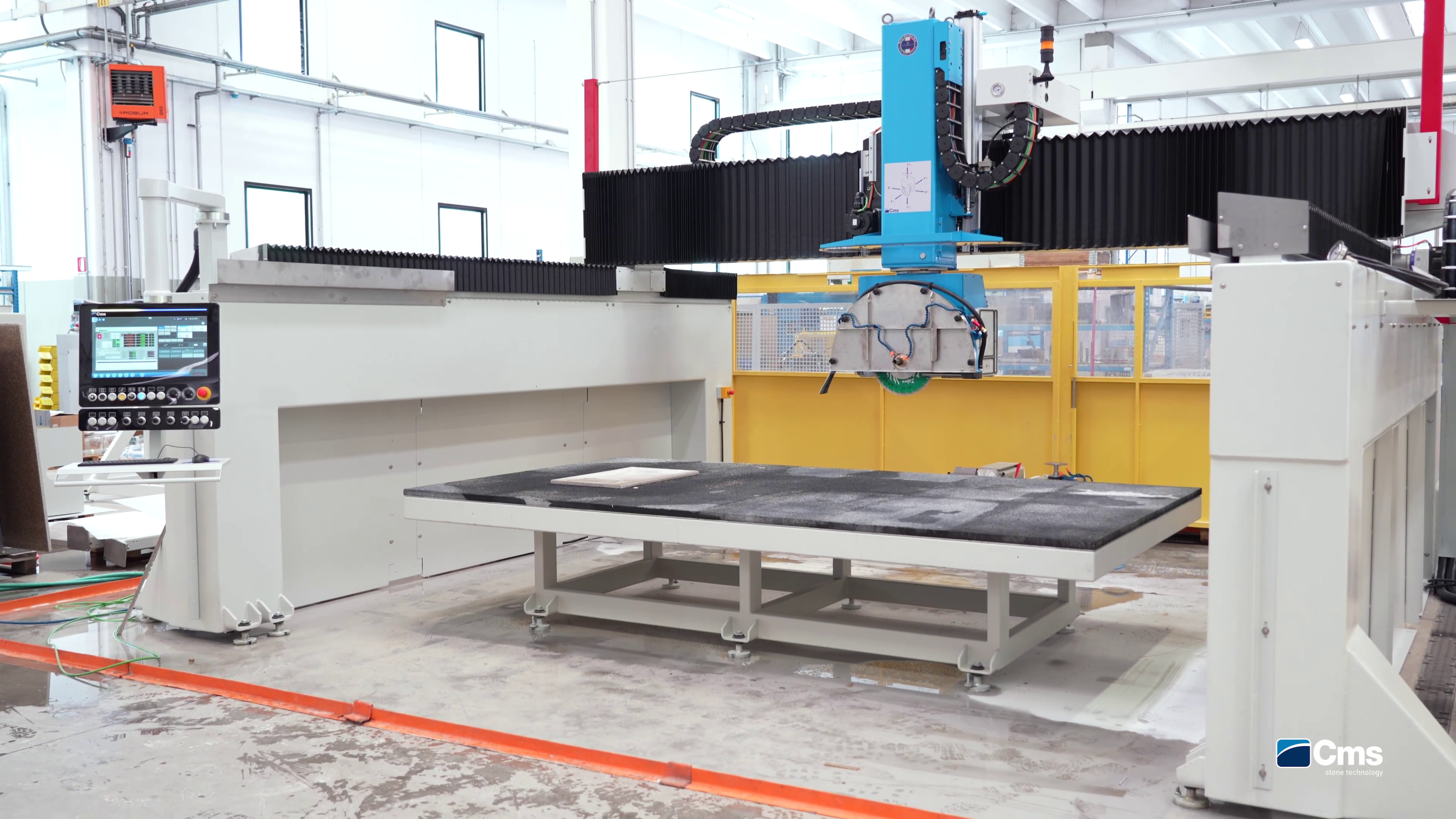

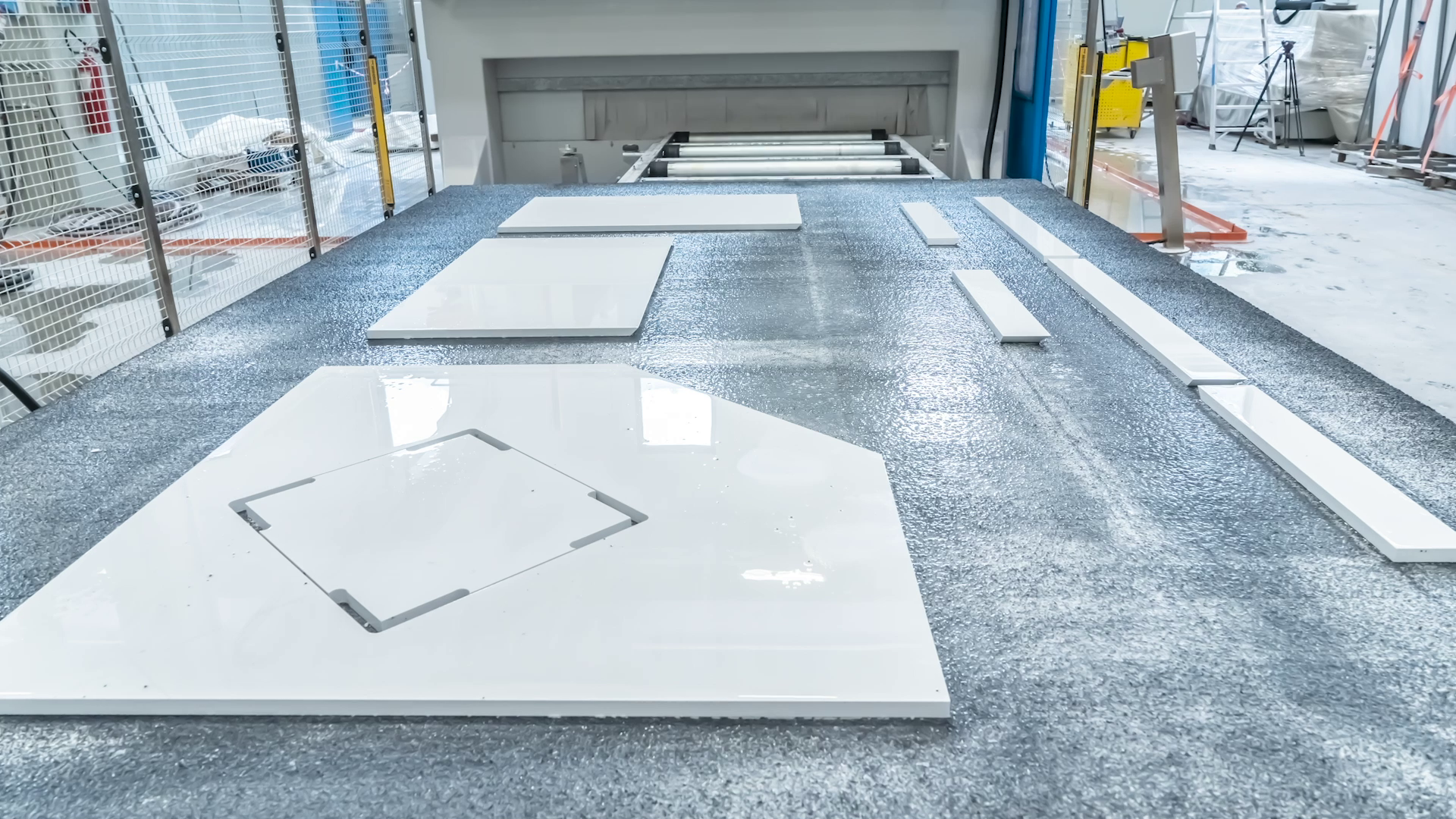

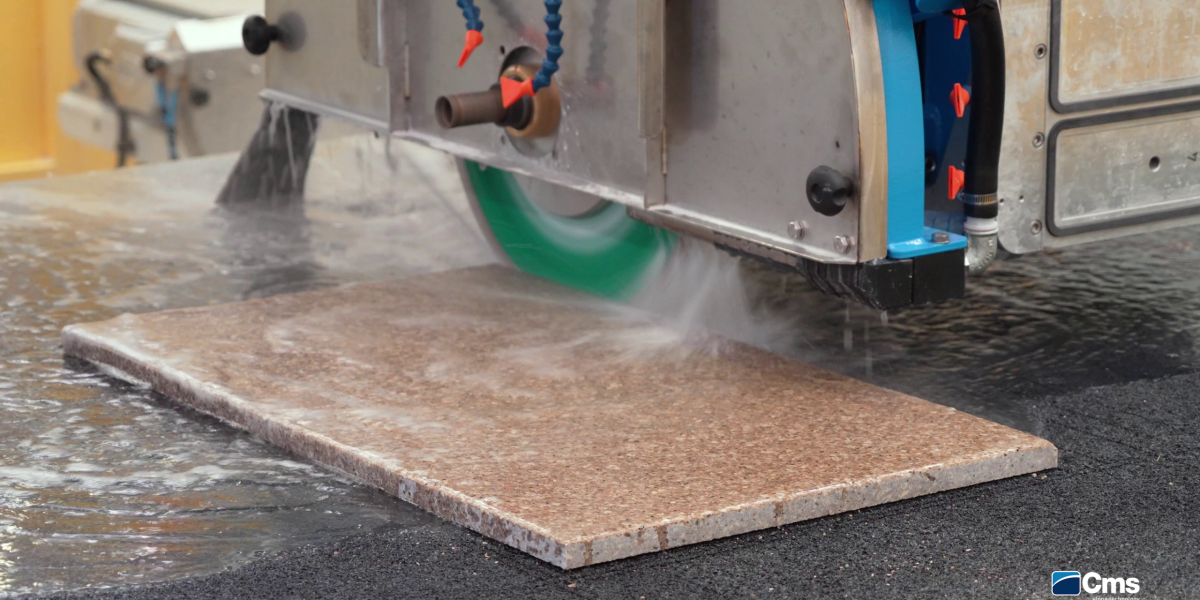

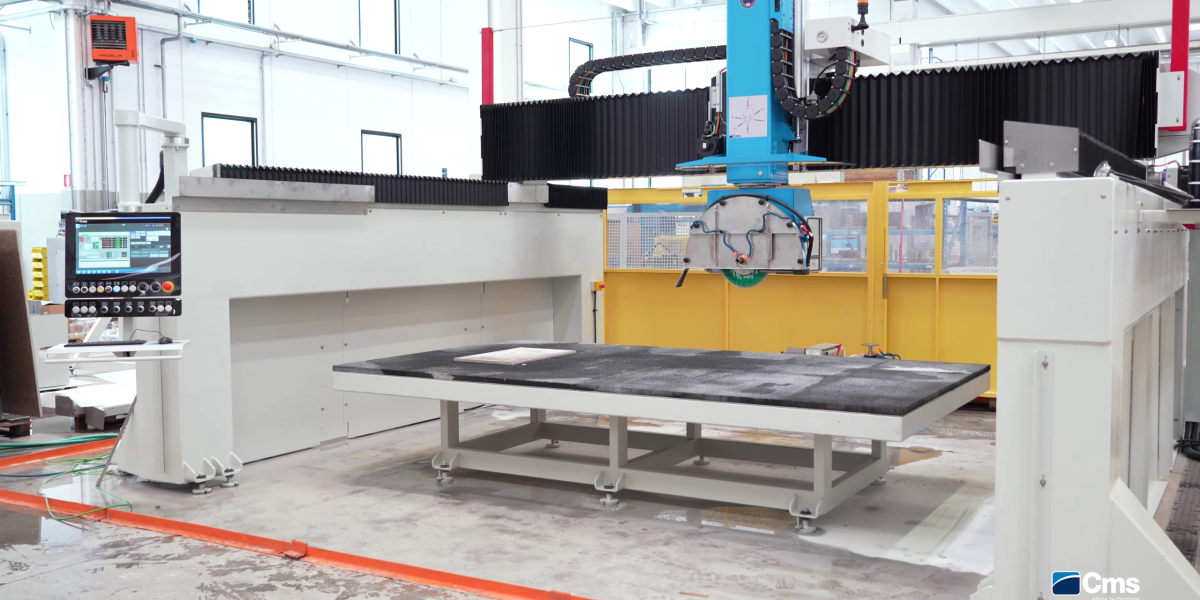

The Brembana Formax is a high-performance, numerically controlled 5-axis bridge saw designed for maximum versatility and precision. Featuring a tilting head and fixed table, it effortlessly handles straight or shaped cuts, vertical or inclined machining, advanced 3D profiling, and milling. Ideal for marble, granite, composite stone, ceramics, and stone blocks, Formax delivers exceptional accuracy, productivity, and reliability for demanding fabrication environments.
Technical data
| X AXIS STROKE | 3800 mm / 150 in |
| Y AXIS STROKE | 2550 ÷ 7200 mm / 100 ÷ 283 in* |
| Z AXIS STROKE | 700 mm / 27 in |
| HEAD REVOLUTION (C AXIS) | ± 270° (540°) |
| HEAD INCLINATION (A AXIS) | +8° – 90° |
| DISK DIAMETER | 350 ÷ 725 mm (optional 825 mm) / 14 ÷ 28 in (optional 32 in) |
| MOTOR | 18,5 kW / 25 HP – 25,5 kW / 34 HP |
| MOTOR REVOLUTION | 0 ÷ 5.000 rpm (optional 6,000 rpm) |
| WORKTABLE DIMENSIONS | 3600 x 2500 mm*/ 142×98 in* |
| OVERALL DIMENSIONS | 6560x4680x3490 mm / 258x184x137 in * |
