Revolutionary compact machining center with automatic suction and stop positioning
Benefits
Unrivalled mechanics
The sturdy structure of the machining center ensures optimal absorption of the stresses derived from machining, guaranteeing a high constant precision over time. The machine base fixed directly to the ground, without the need of building work, increases the stability and performance
Best-in-class power
CMS-designed and manufactured liquid-cooled electrospindle with power up to 30 KW, providing optimal operating conditions and a saving of up to 21% on cycle times
More productivity
With the same amount of floor space occupied, the machine will no longer have to wait for the worktable to be tooled, since it will do so itself in a very fast and fully automatic manner.

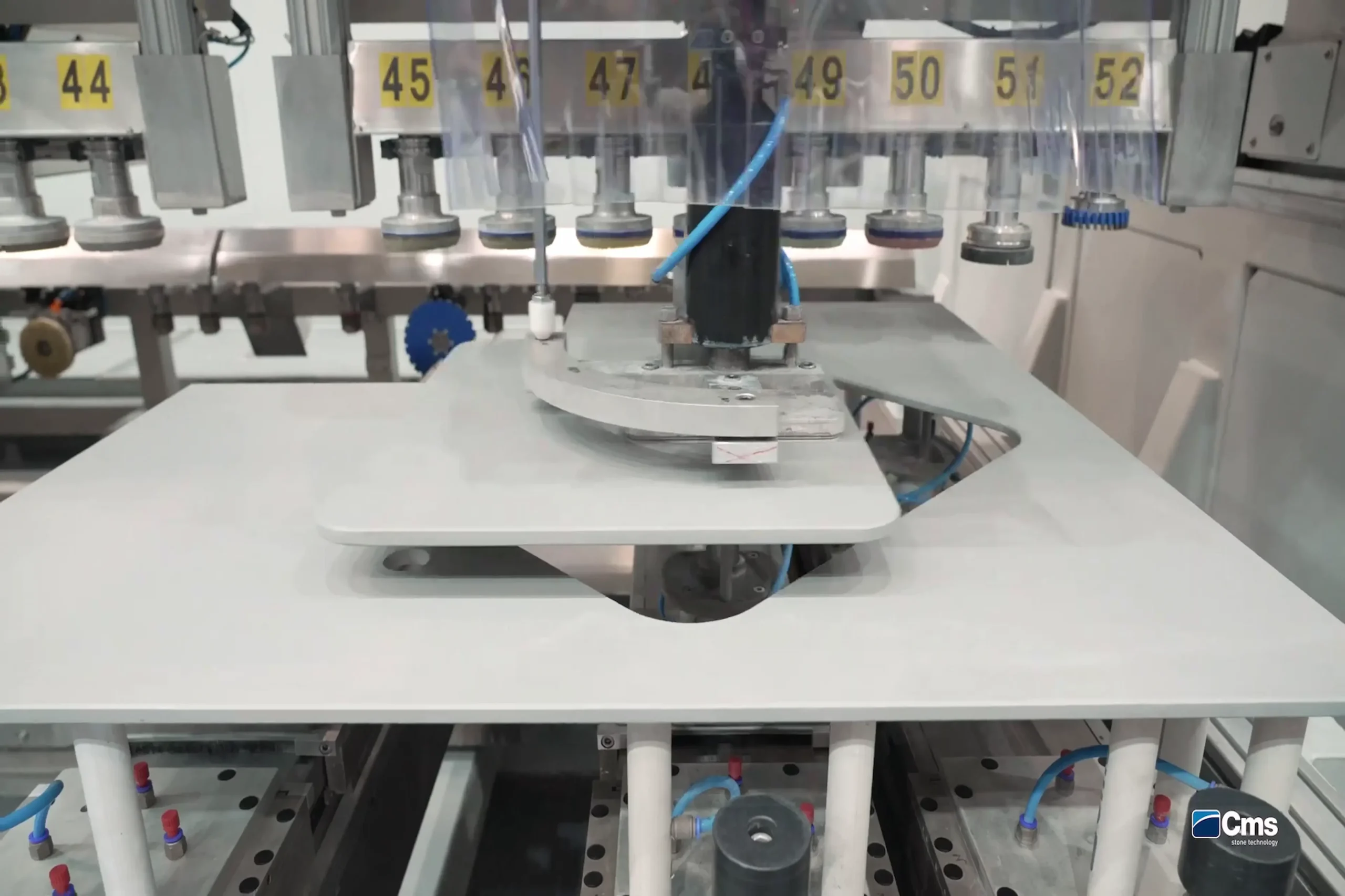

Automatic sink removal
The Brembana Sink Removal Tool eliminates manual sink center removal, saving time and labor. It provides faster, safer, and more efficient operation, delivering precise, seamless cuts without risk of damage.
brembana kartesia
brembana kartesia f is the most compact and revolutionary three/four-axis interpolated machining center operated by Numerical Control for processing marble slabs, granite, synthetic stone and ceramics. This machine is the ideal solution for quickly and accurately performing any kind of edge contouring, rough or polished, milling, drilling, countersinking, bas-reliefs and lettering.

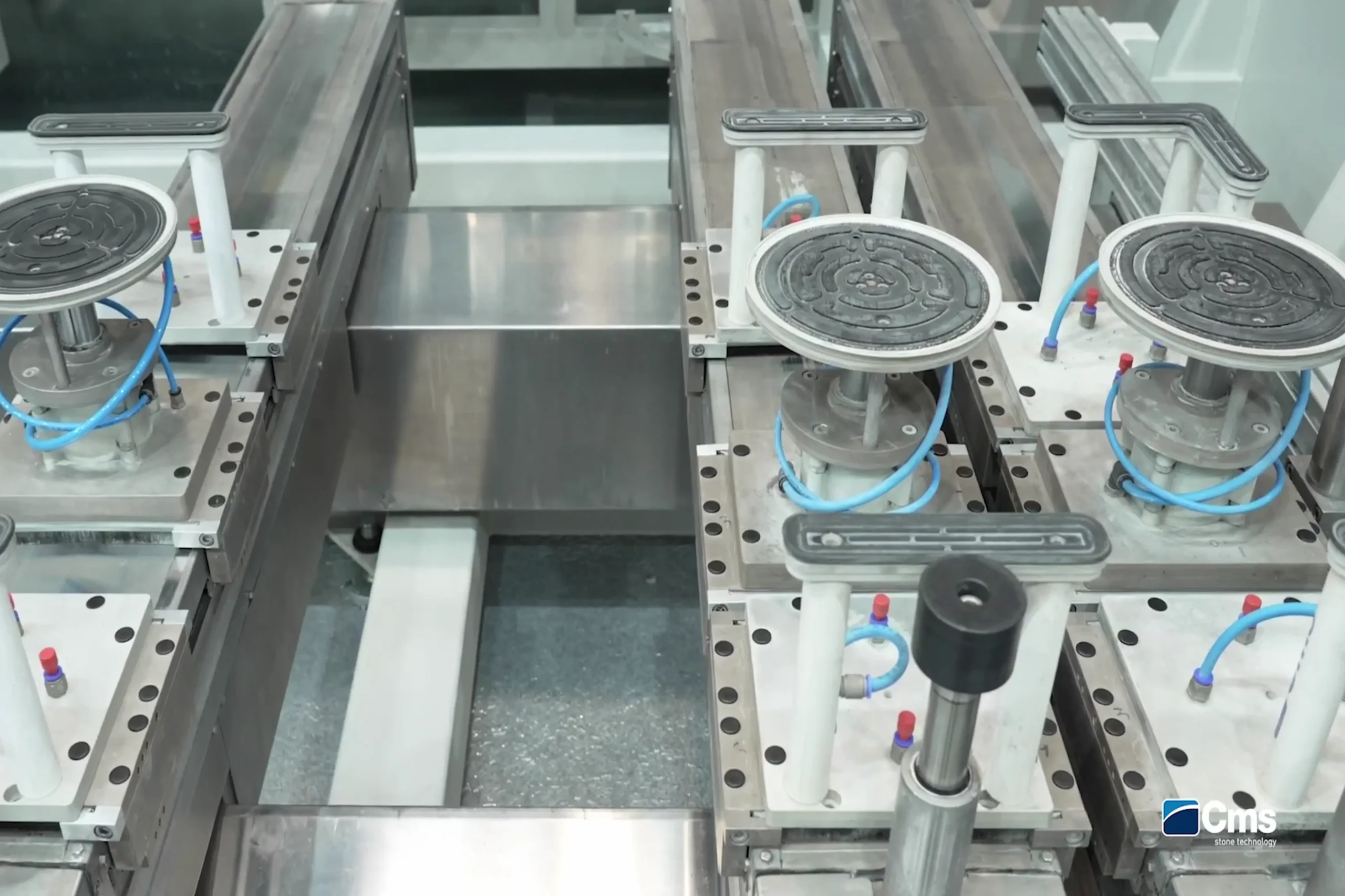

Worktable tooling is handled fully automatically by the machine and does not require any human intervention: this solution significantly increases productivity while ensuring a small footprint.
Technical data
| X AXIS STROKE | 3800 mm / 149 in |
| Y AXIS STROKE | 2300 mm / 90 in |
| Z AXIS STROKE | 520 mm / 20 in |
| ROTATING AXIS | C = 360° stepless |
| NO. STATIONS TOOL CHANGER | 28 – 52 |
| ELECTROSPINDLE | 13,5 KW / 18 Hp – 30 KW / 40 Hp 22 Nm at 6000 rpm – 39Nm at 6000 rpm ISO 40 |
| ELECTROSPINDLE REVOLUTION | 0 ÷ 15000 rpm |
| OVERALL MACHINE WEIGHT | 7,250 kg / 16000 lbs |
| MINIMUM SPACE FOR INSTALLATION | 6330x4230x2940 mm / 250x167x116 in |
