New generation of 5-axis monoblock bridge saw, fully controlled by a NC
Benefits
Unrivalled mechanics
The weight of the machine up to 5.100 kg ensures the optimal absorption of the stresses derived from machining, guaranteeing a high constant precision over time. This machine base fixed directly to the ground, without the need of building work, increases the stability and performance.

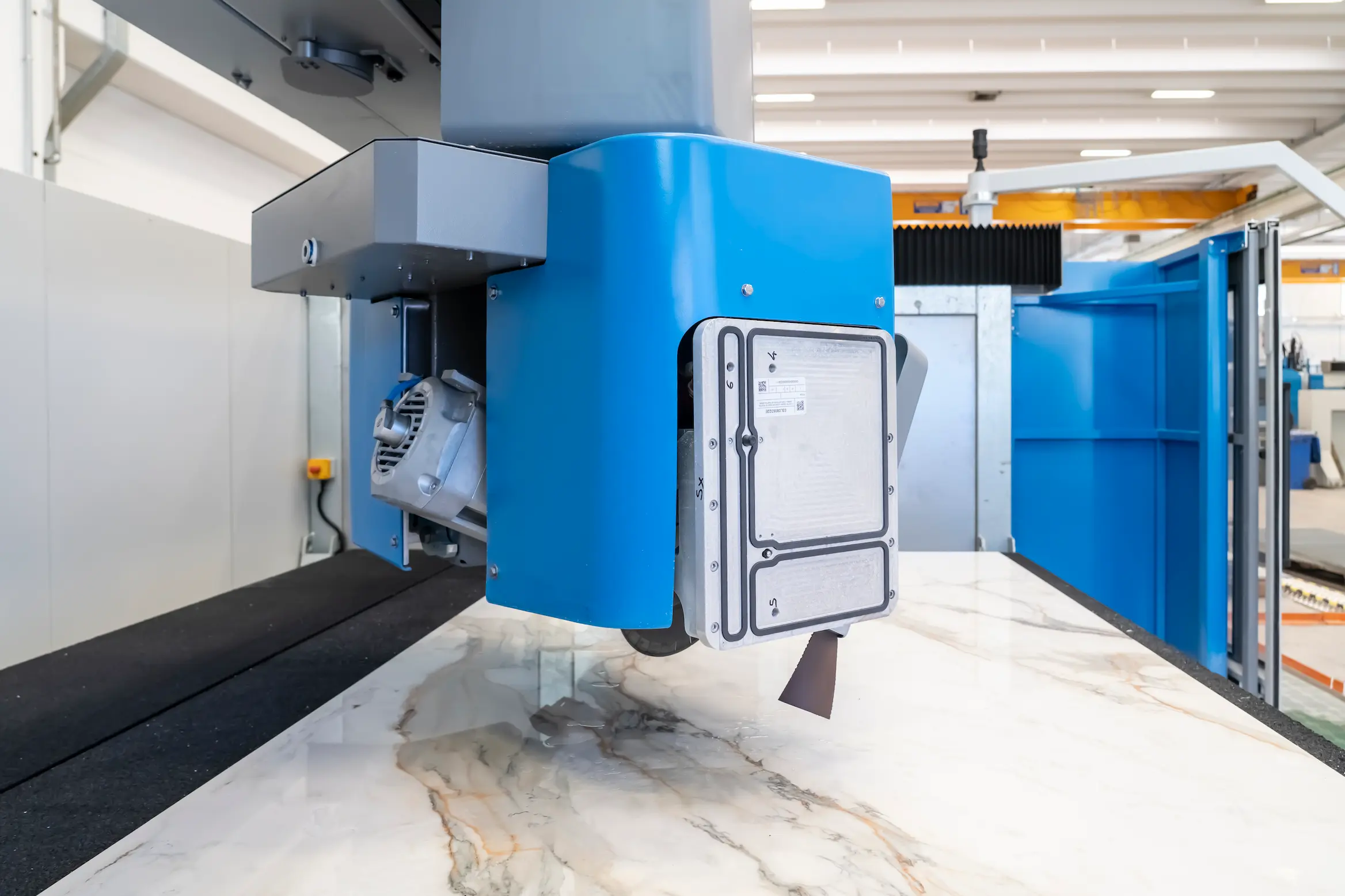

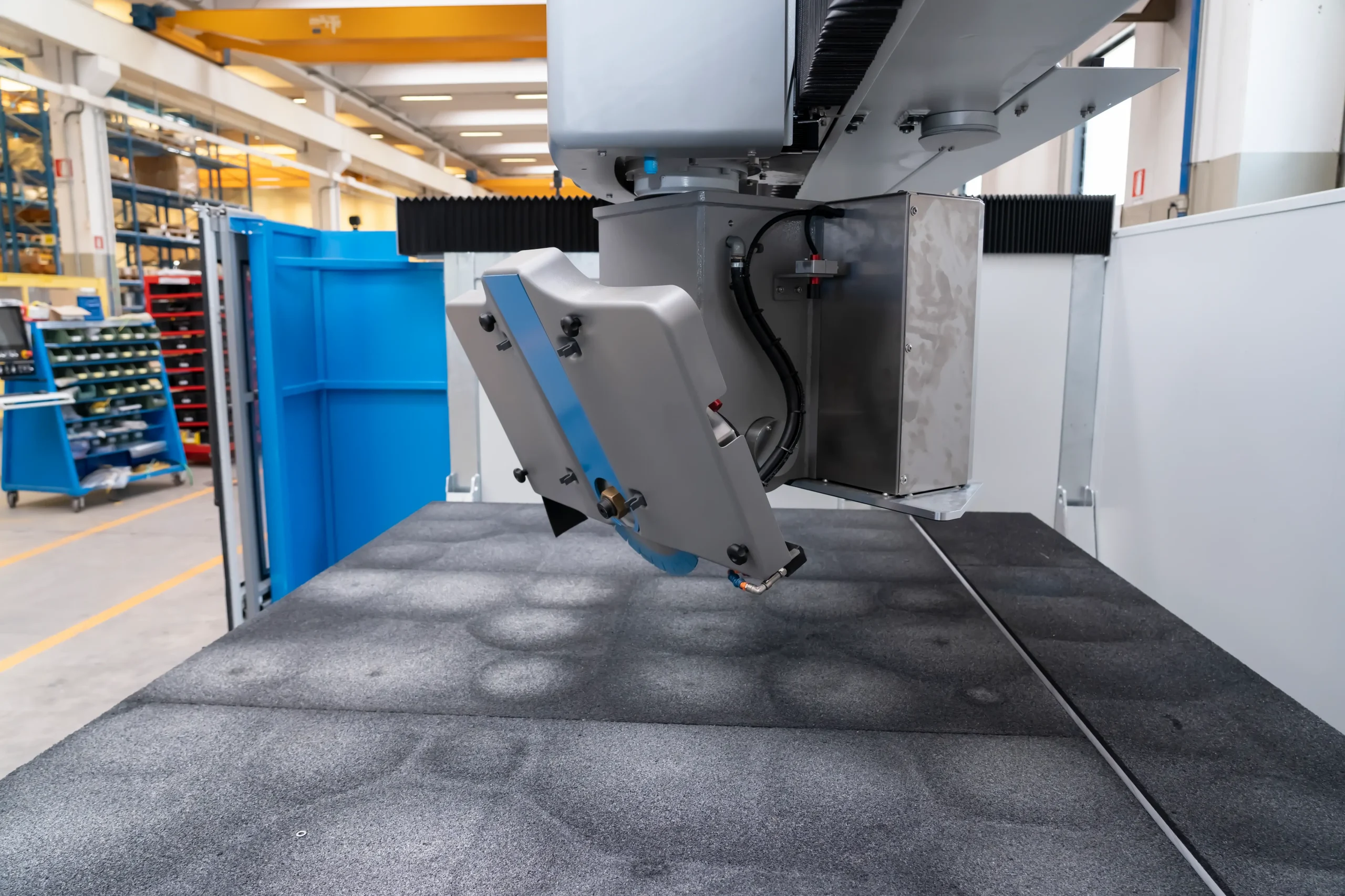

Suction surface
+80% suction surface compared to market average: improved manipulator is 2.6 Times larger than previous generation.
+107% lifting span compared to market average: lift even the thinnest slabs without breaking them, thanks to the wide reach of its two wings.

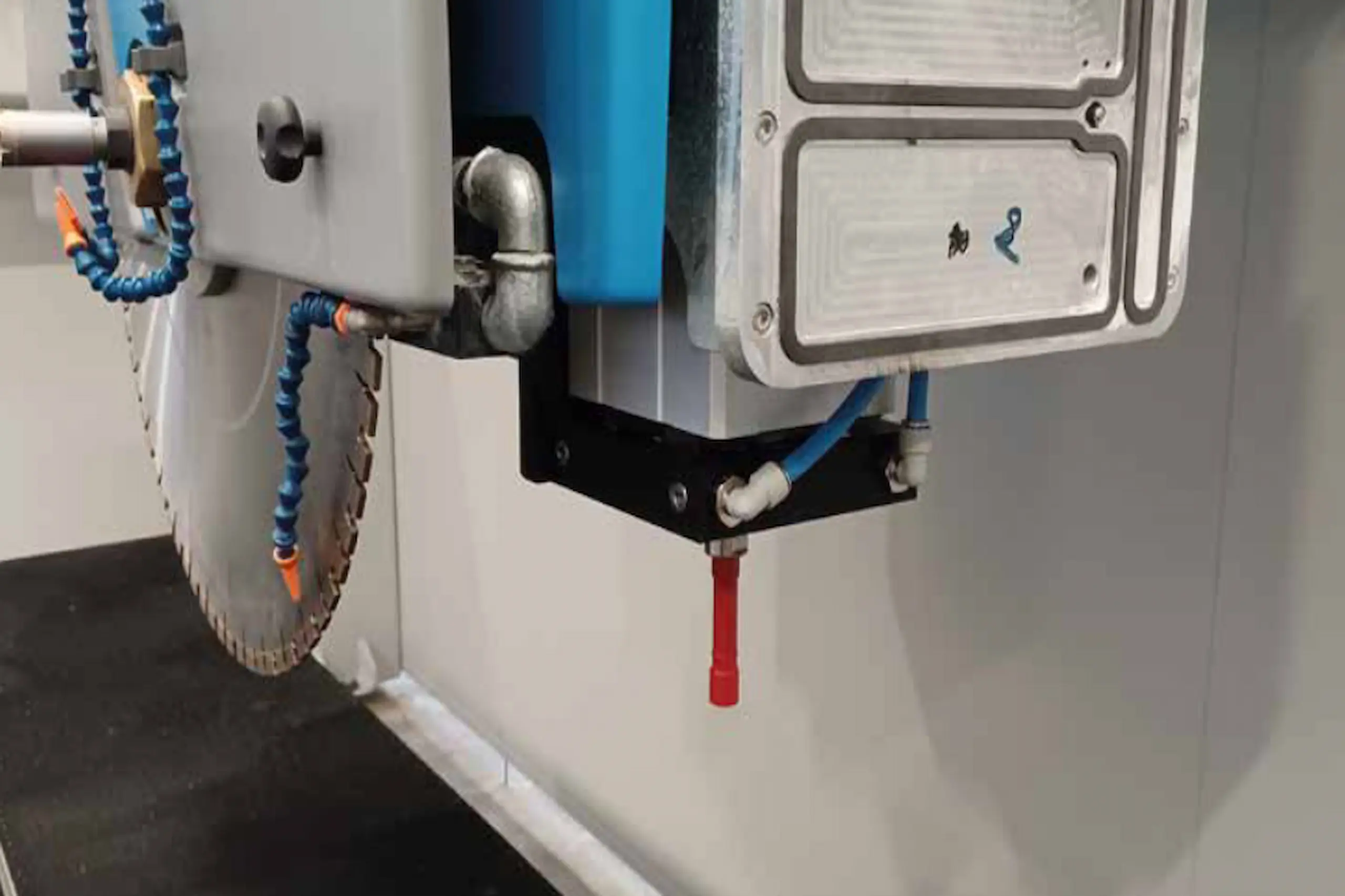

Optinial side spindle
Additional 3.7 kW 14,000 rpm side spindle with manual tool change. It allows an additional tool to perform milling, drilling, lettering, engraving and bas-reliefs without having to remove the tool from the main motor. It can be used for high-speed machining that cannot be handled with the blade motor alone.

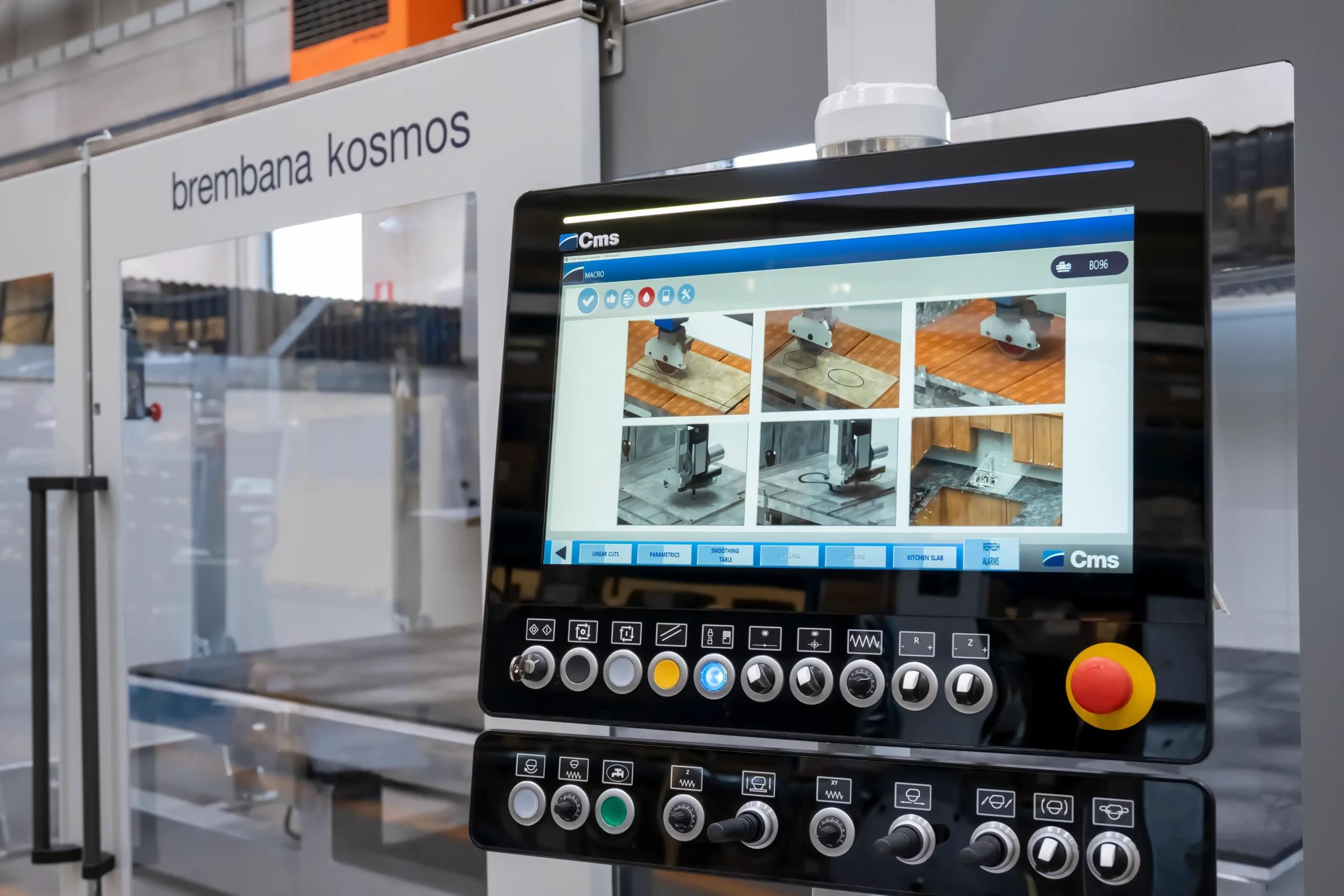

Easy programing
Simple and intuitive programming, thanks to the software installed on-board the machine.

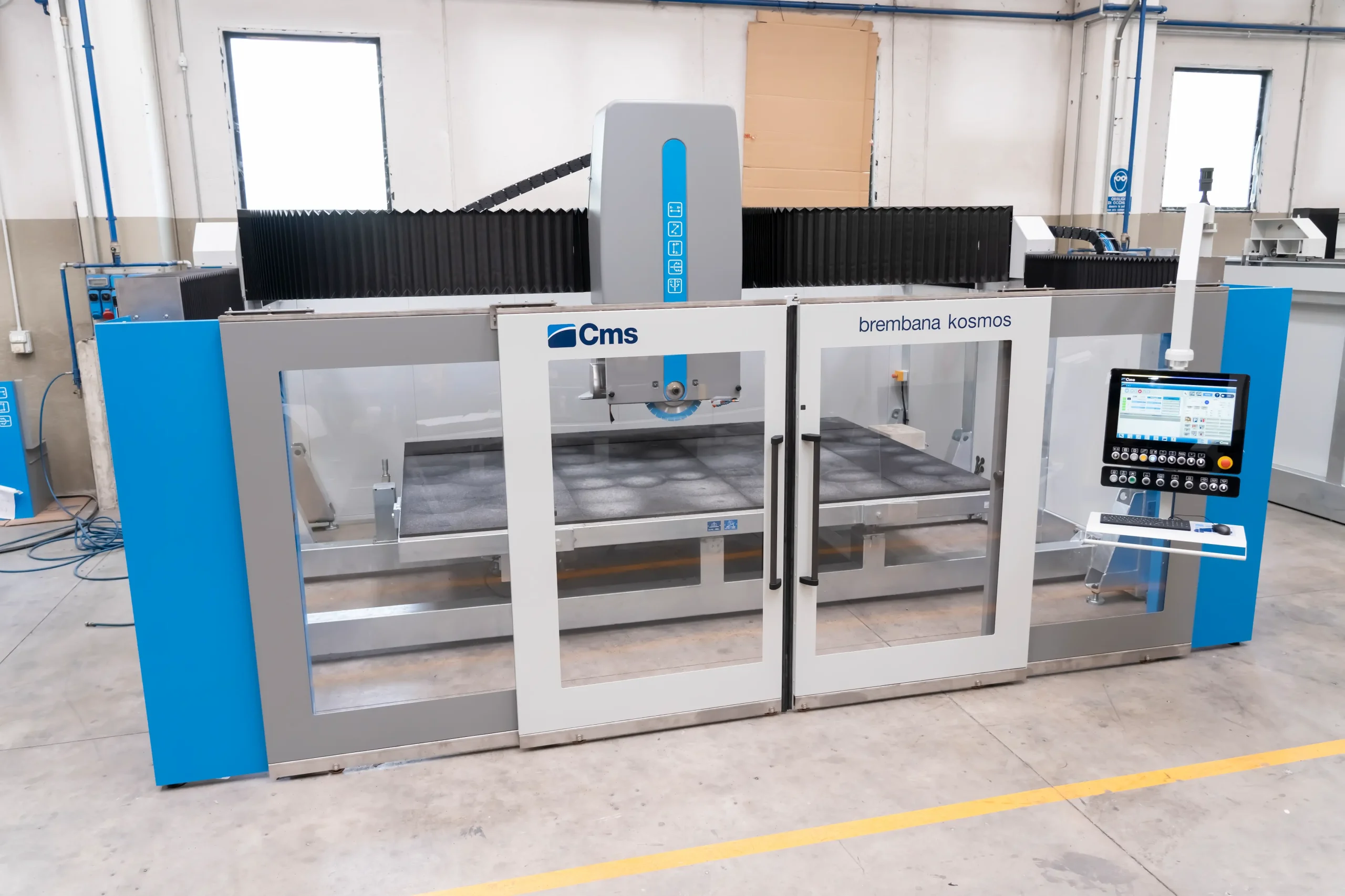

brembana kosmos
Compact and easy to install, it doesn’t require any foundations, even as a possibile re-installation. This machine is built with the needs of workshops in mind and it is used for cutting slabs up to 200 mm thickness with blade Ø 625 mm of natural stone, synthetic stone, and ceramic. It features a powerful blade motor capable of 25HP and 125Nm of torque, +34% higher than previous generation.
The weight of the machine, up to 5.1 tons, ensure perfect rigidity for the production of kitchen countertops, vanity tops, wall panels for interiors and exteriors, flooring, street furniture, doorsteps, staircases, and thresholds.
Technical data
| X AXIS STROKE | 3960 mm / 156 in |
| Y AXIS STROKE | 2450 mm / 97 in |
| Z AXIS STROKE | 400 mm / 16 in |
| HEAD REVOLUTION (C AXIS) | ± 180° (360°) |
| HEAD INCLINATION (A AXIS) | 0 – 90° |
| X AXIS SPEED | 30 m/min |
| Y AXIS SPEED | 25 m/min |
| Z AXIS SPEED | 8 m/min |
| MINIMUM DISK DIAMETER | 350 mm / 14 in |
| MAXIMUM DISK DIAMETER | 625 mm / 25 in |
| MAXIMUM WORKING THICKNESS (WITH DISK Ø625 MM) MOTOR | 200 mm / 8 in |
| MOTOR | 18,5 kW / 25 HP |
| MOTOR REVOLUTION | 0 ÷ 6.000 rpm |

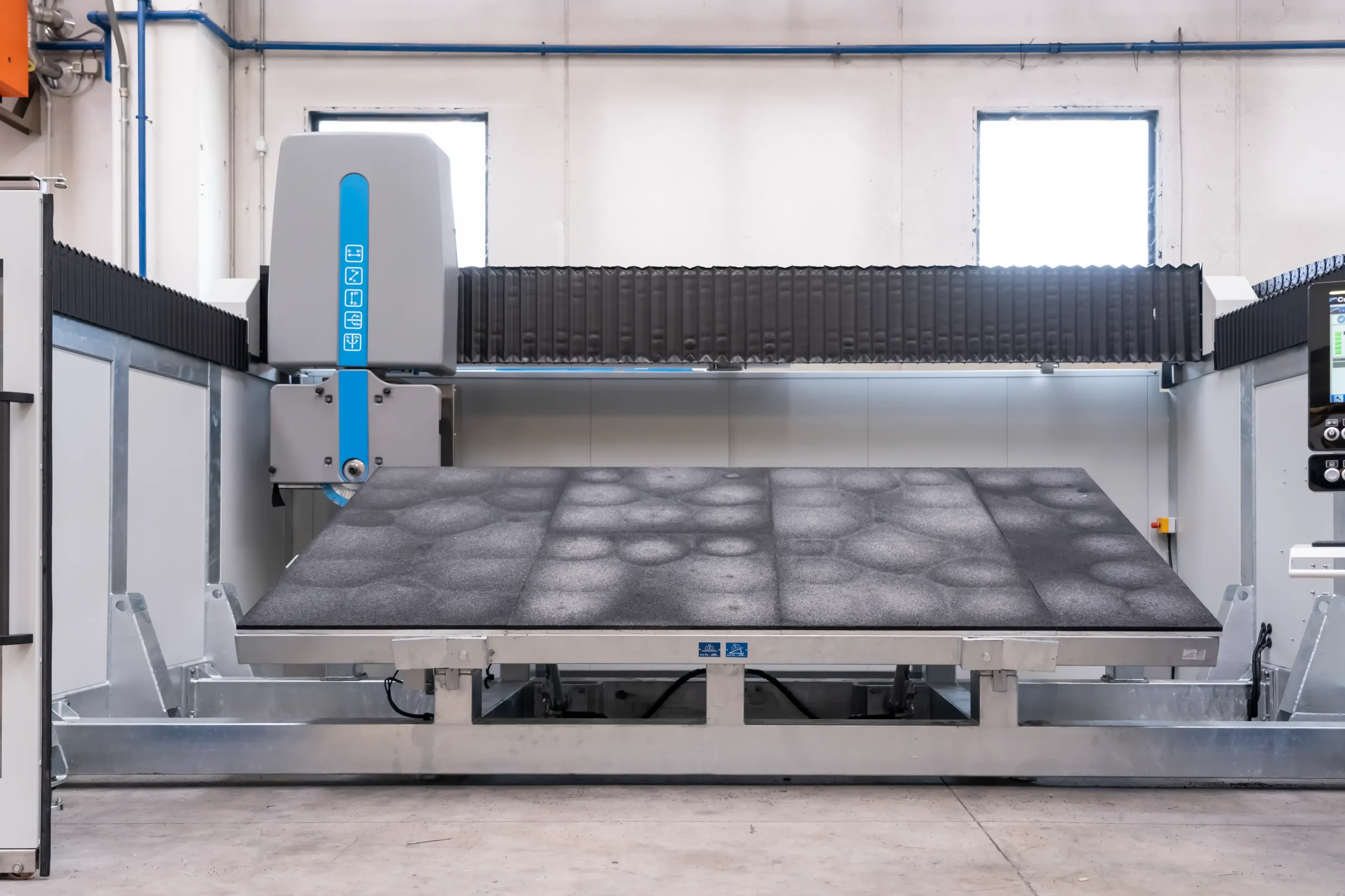

| WORKTABLE DIMENSIONS | 3600 x 2500 mm*/ 142×98 in* |
| WATER CONSUMPTION (3 BAR) | 40 l/min |
| AIR CONSUMPTION (6 BAR) | 17 l/min |
| OVERALL DIMENSIONS | 6650*x4300x3165 mm / 262*x169x125 in |
| OVERALL MACHINE WEIGHT | Up to 5.100 Kg / 11.240 lb |
*excluding space necessary for electrical cabinet access
