Best-in-class machining centers for the stone industries.
Benefits
Unrivalled mechanics
The sturdy structure of the machining center ensures optimal absorption of the stresses derived from machining, guaranteeing a high constant precision over time. The machine base fixed directly to the ground, without the need of building work, increases the stability and performance
Best-in-class power

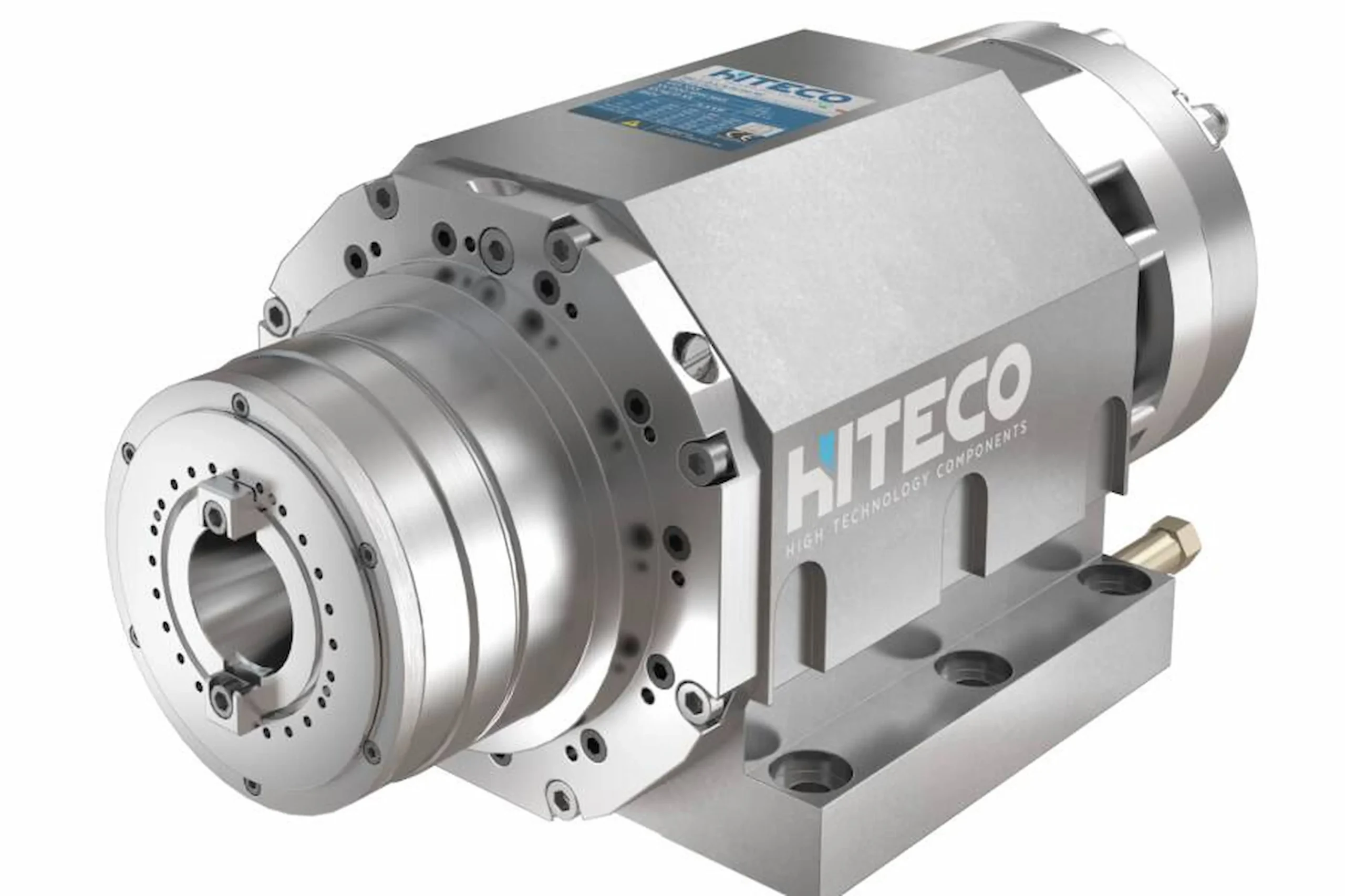

CMS-designed and manufactured liquid-cooled electrospindle with power up to 30 KW, providing optimal operating conditions and a saving of up to 21% on cycle times
Automatic process improvement
Dynamic feed adjustment and tool wear compensation to ensure best productivity and finish

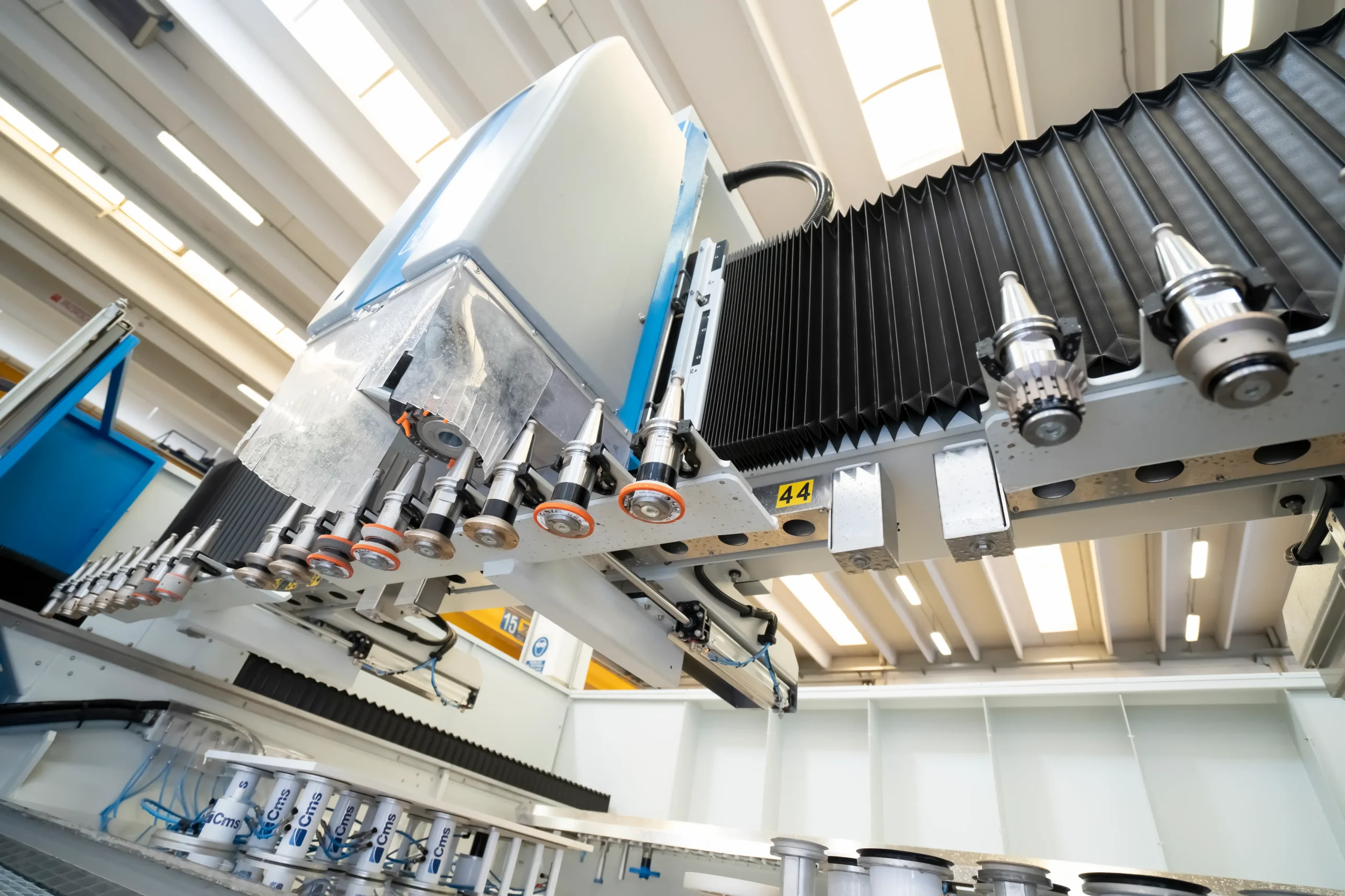

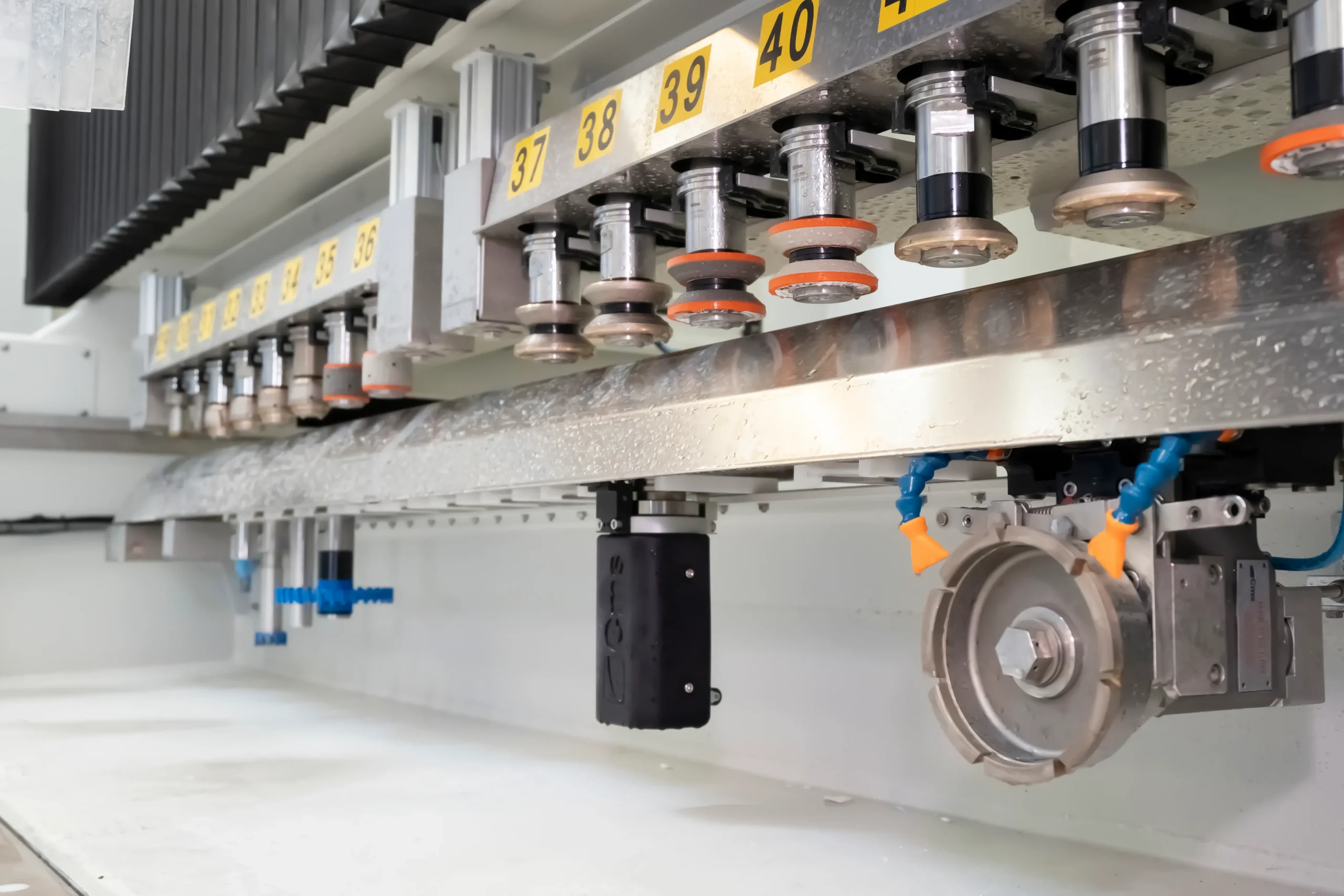

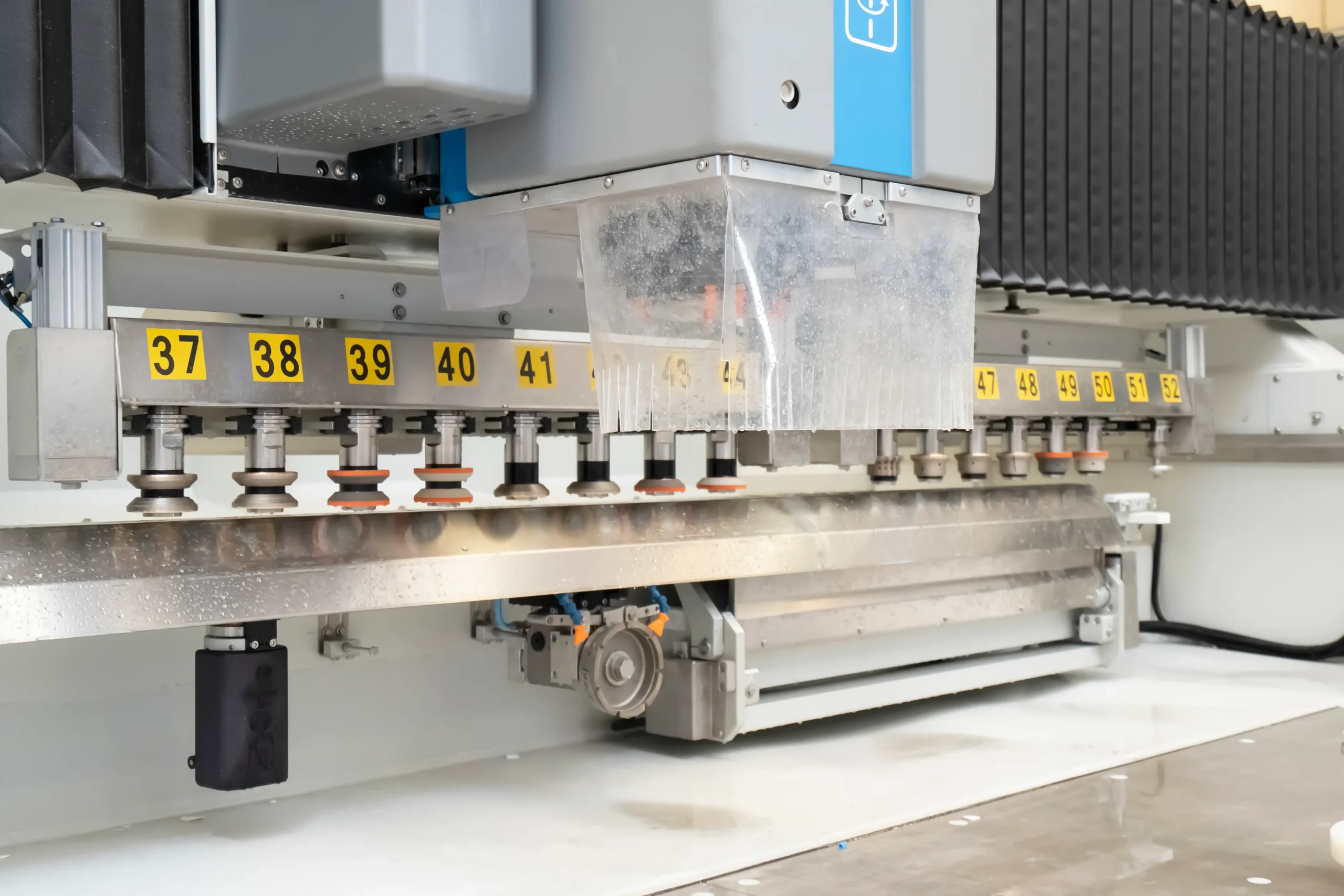

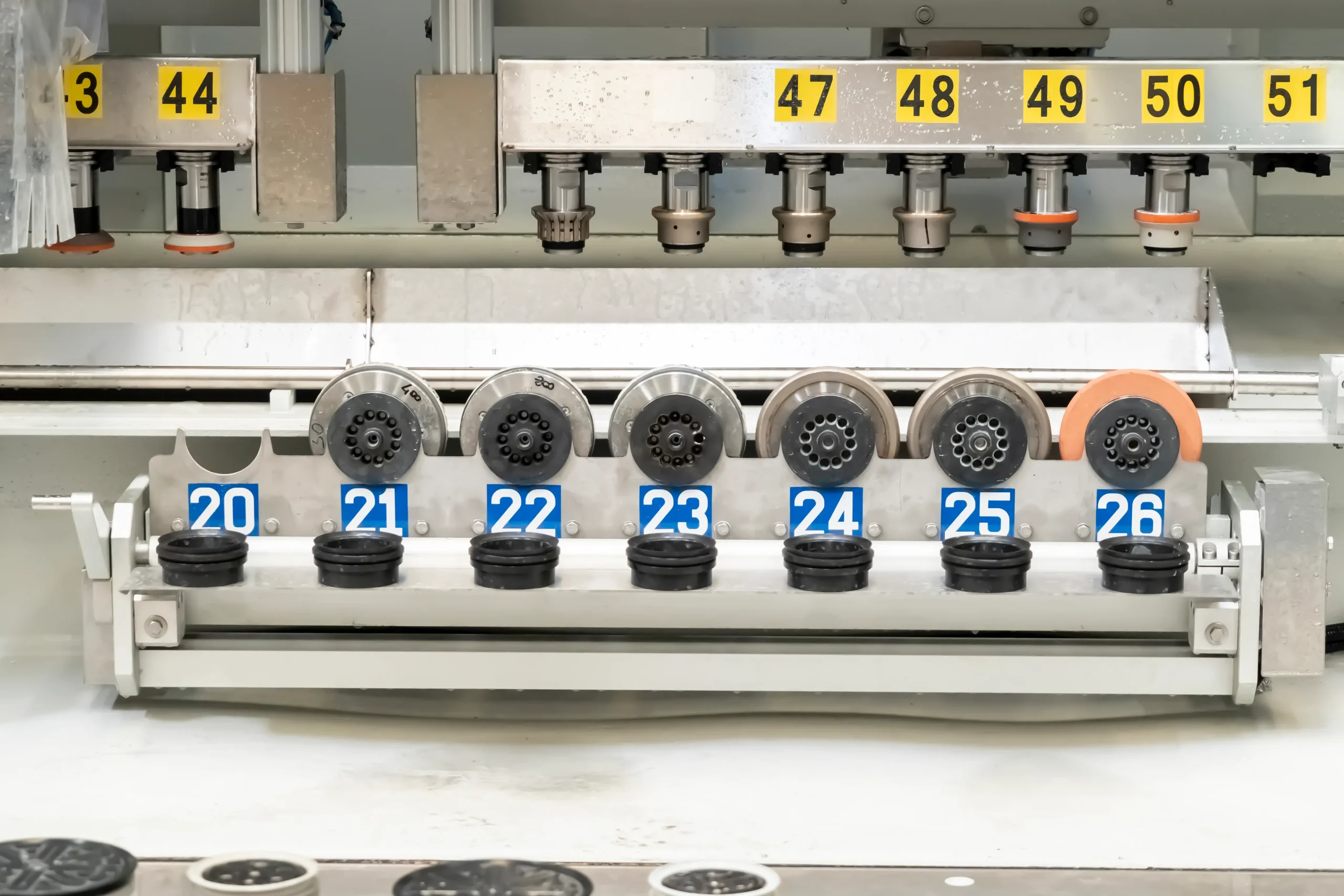

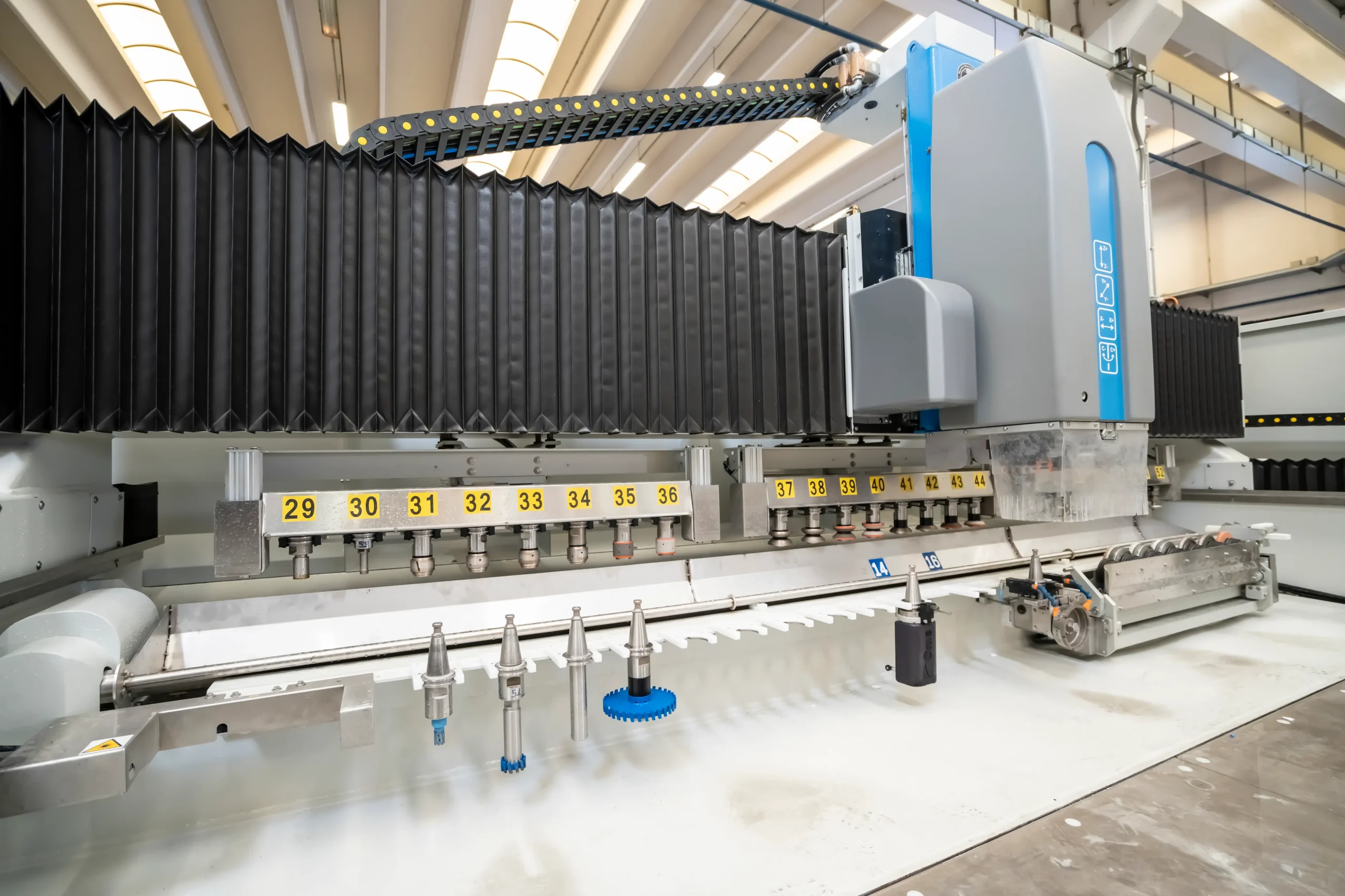

Up to 128 tools
Up to 128 installable tools, in in-line or under-beam magazines, to cover all workshop needs without retooling
brembana speed

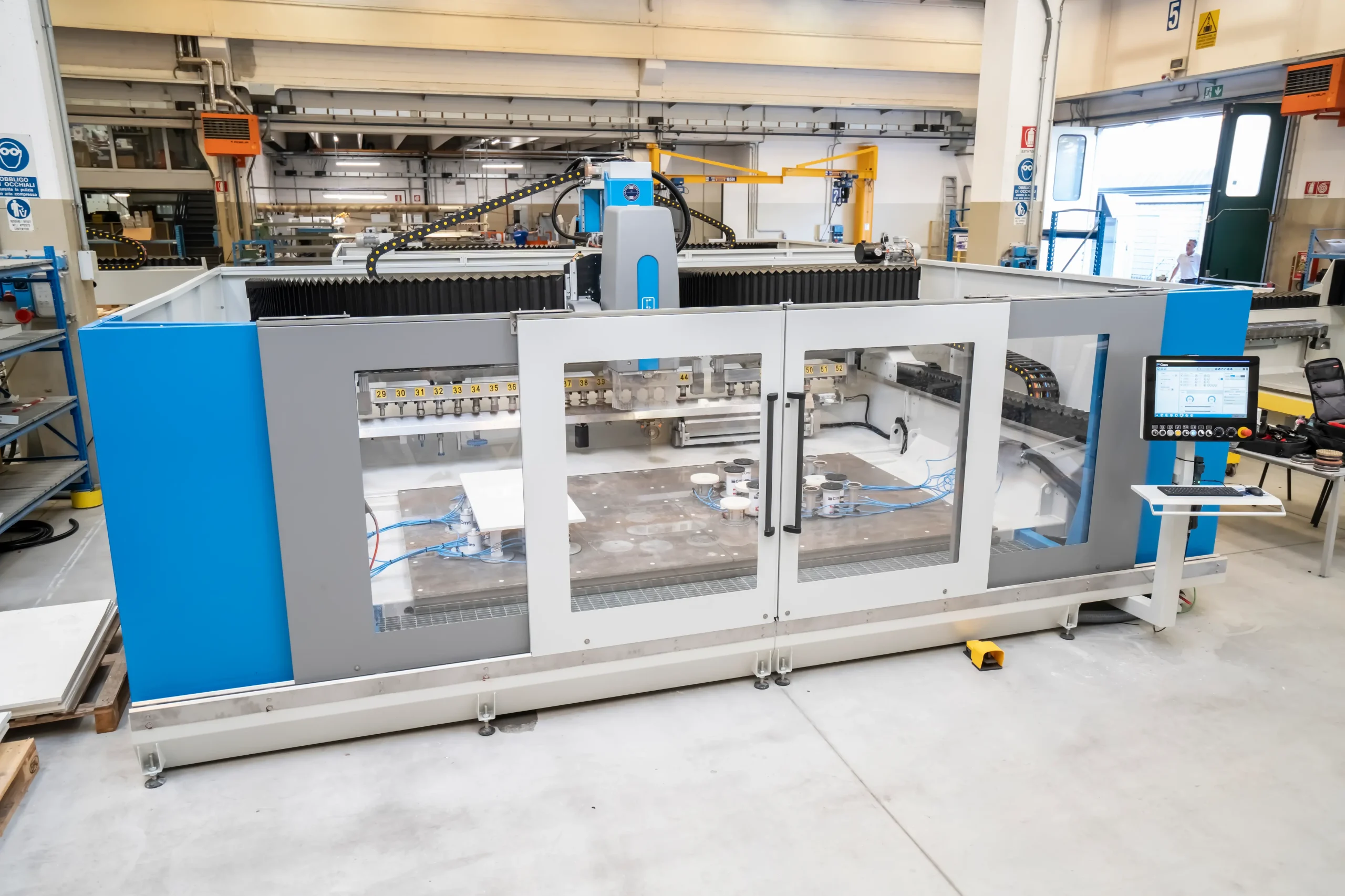

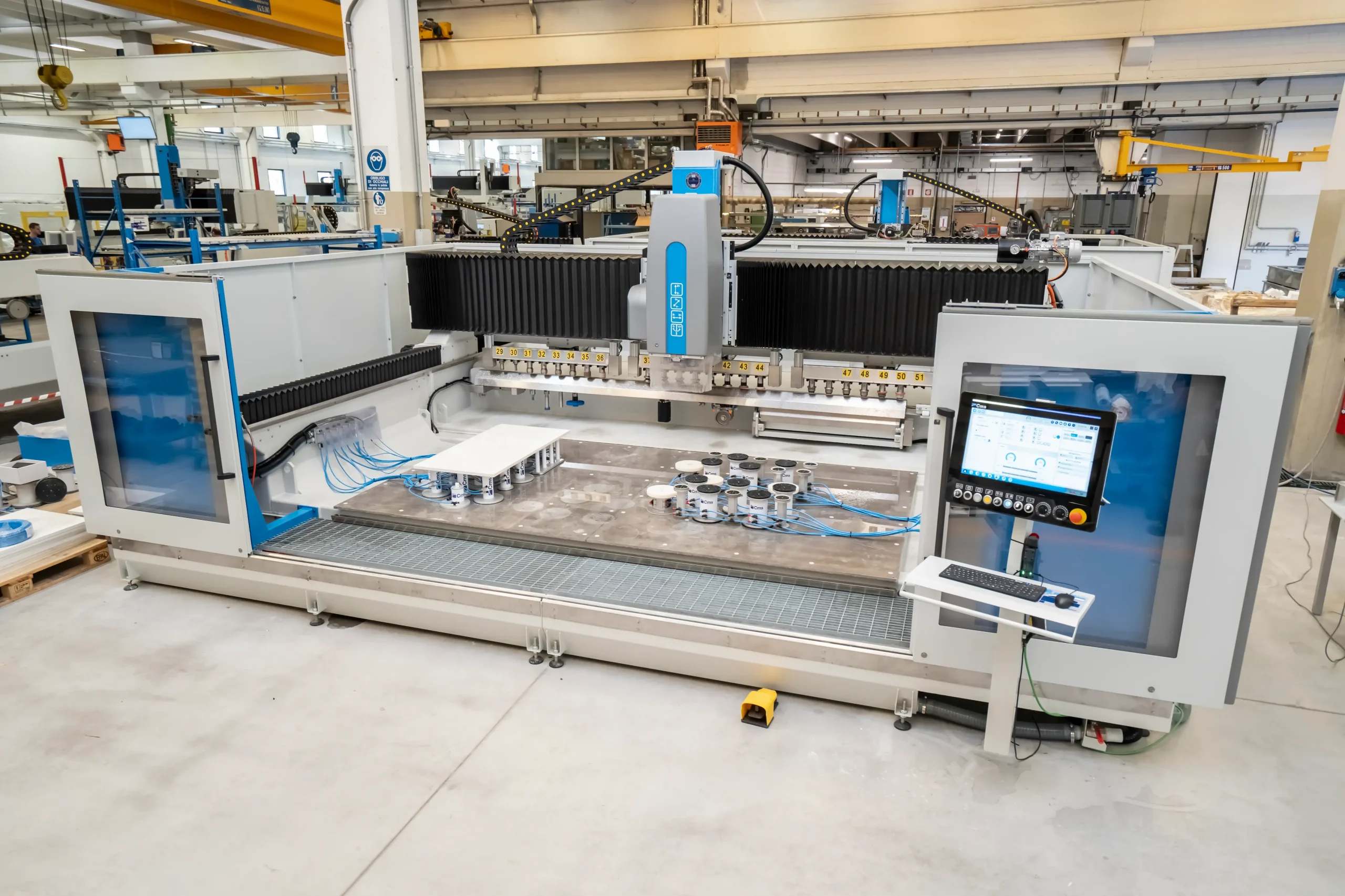

The Brembana Speed is a high-performance 3/4-axis monobloc CNC machining center engineered for ultimate precision and versatility. Perfectly suited for slabs and blocks of marble, granite, composite stone, and ceramic, it handles even high-thickness materials with ease.
It delivers flawless raw and polished contouring, milling, drilling, countersinking, bas-relief, and engraving, all in a single, efficient setup. Fully customizable to meet your specific production needs, it is the ideal solution for any fabshop aiming for superior quality and productivity.
Technical data
| X AXIS STROKE | 2800 ÷ 3800 mm / 110 ÷ 149 in |
| Y AXIS STROKE | 1650 ÷ 7200 mm / 65 ÷ 283 in |
| Z AXIS STROKE | 350 ÷ 900 mm / 14 ÷ 35 in |
| ROTATING AXIS | C = 360° stepless |
| NO. STATIONS TOOL CHANGER | 12 – 128 |
| ELECTROSPINDLE | 13,5 KW / 18 Hp – 30 KW / 40 Hp 22 Nm at 6000 rpm – 39Nm at 6000 rpm ISO 40 |
| ELECTROSPINDLE REVOLUTION | 0 ÷ 15000 rpm |
| OVERALL MACHINE WEIGHT | 4300 ÷ 15000 kg / 9500 ÷ 33000 lbs |
