Precision, power, and versatility for advanced stone machining.
Benefits
Unrivalled mechanics
Open frame version, to install on concrete or carpentry shoulders guaranteeing stability and rigidity to accomplish the most difficult processing and to ensure long longevity.
Modular design
The Sprint is built on a flexible modular architecture, allowing multiple configurable options to be added or removed as needed. This design enables easy customization, scalability, and future expansion, ensuring the system adapts efficiently to different applications, evolving requirements, and technological advancements without compromising performance or reliability.

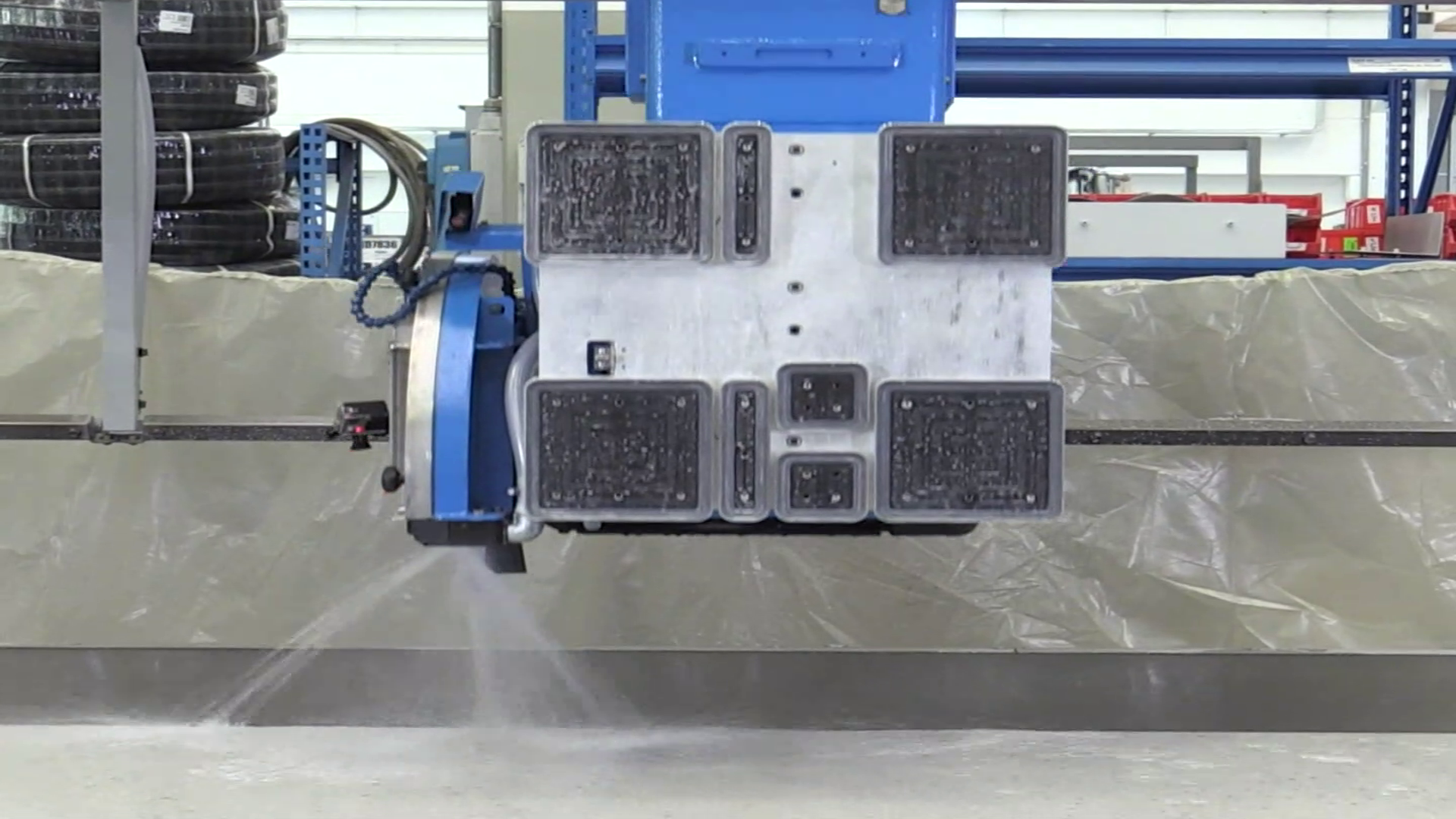

Strongest manipulator
The Sprint stands as the most powerful vacuum manipulator on the market, engineered to safely and effortlessly handle loads up to 1,000 kg (2,200 lbs).
Easy programing
Simple and intuitive programming, thanks to the software installed on-board the machine.
brembana sprint
The Brembana Sprint is a high-performance, numerically controlled 5-axis bridge saw designed for maximum productivity and precision. With a tilting head and fixed table, it performs straight or shaped cuts, vertical or inclined machining, 3D profiling, and milling on slabs and stone blocks.
Technical data
| X AXIS STROKE | 4250 mm / 167 in |
| Y AXIS STROKE | 2550 ÷ 7200 mm / 100 ÷ 283 in * |
| Z AXIS STROKE | 600 ÷ 900 mm / 24 ÷ 35 in |
| HEAD REVOLUTION (C AXIS) | ± 270° (540°) |
| HEAD INCLINATION (A AXIS) | +8° – 90° |
| DISK DIAMETER | 350 ÷ 825 mm / 14 ÷ 32 in |
| MOTOR | 18,5 kW / 25 HP |
| MOTOR REVOLUTION | 0 ÷ 5.000 rpm (optional 6,000 rpm) |
| WORKTABLE DIMENSIONS | 4200×2500 mm / 165×98 in* |
| OVERALL DIMENSIONS | 7700x4680x3780 mm / 303x184x149 in |
* = Bigger sizes available on request
