Agil TR is the most compact and versatile cutting table ever made by CMS, featuring an automatic tool changer and a grinding wheel for low-emission film removal.
Benefits
![[performance]](/img/products/cms-glass/agil-tr/feature-01.webp)
[performance]
Automatic tool change: 5-position magazine, installed close to the cutting head. Tool change in 4 seconds [PERFORMANCE] Low-e coating removal speed 40 m/min: 100% automatic removal system with dedicated grinding wheel [PERFORMANCE] Compact and easy to install [COST SAVING]

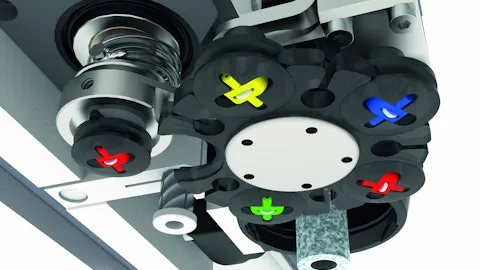

Automatic, 5-position tool changer magazine
Automatic, 5-position tool changer magazine installed close to the cutting head. It guarantees the fastest tool change in its category.

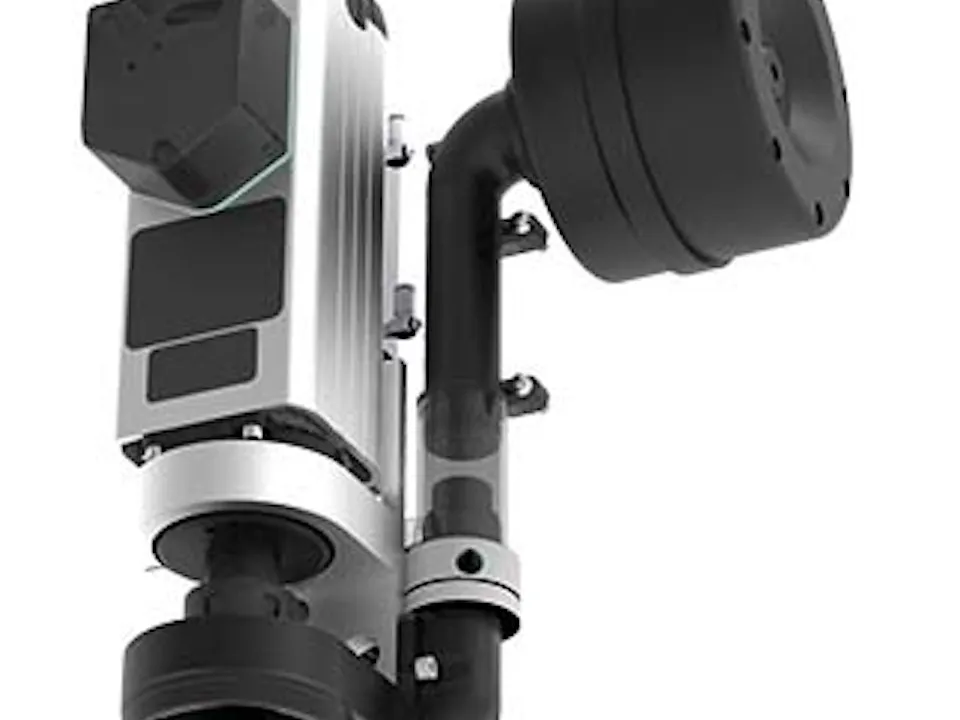

Grinding wheel at the front for automatic low-emission
Grinding wheel at the front for automatic low-emission (low-e) film removal. 20 mm-wide film strips can be removed at a speed of 40 m/min.

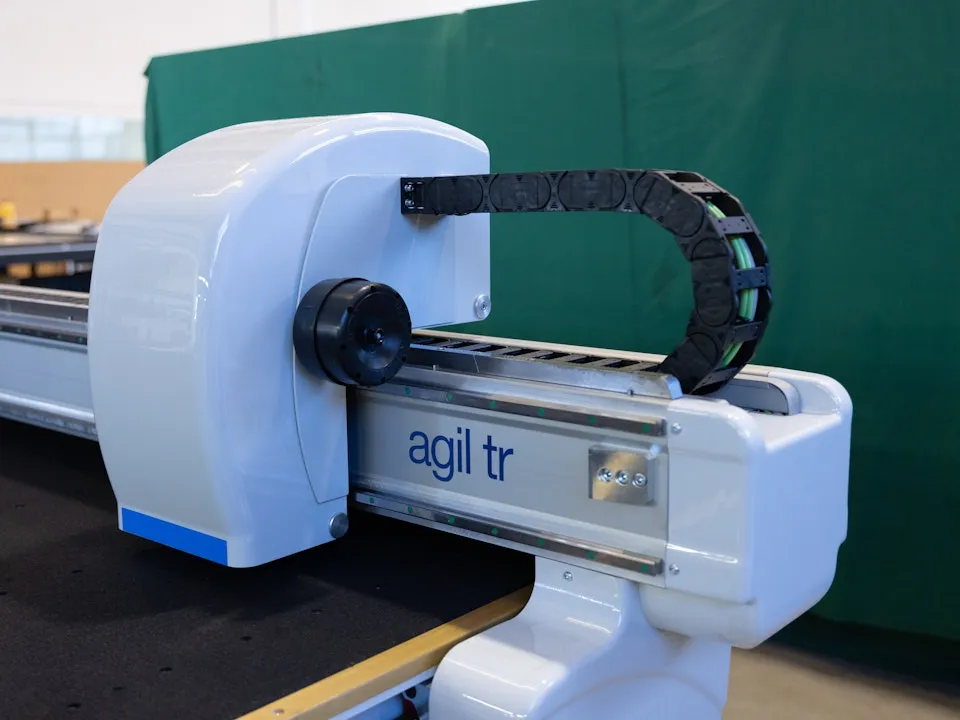

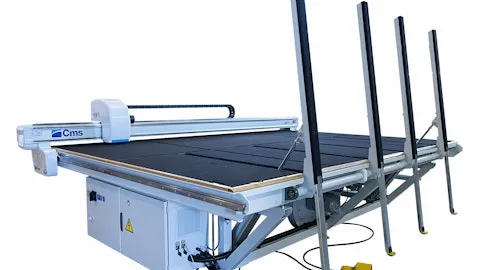

CMS Agil Tr
Agil TR is the most compact and versatile cutting table ever made by CMS. Featuring an automatic 5-position tool changer magazine installed close to the cutting head — guaranteeing the fastest tool change in its category — and a grinding wheel at the front for automatic low-emission (low-E) film removal at a speed of 40 m/min.
Technical data
| Max. workable sheet dimensions | 3810 x 2600 mm |
|---|---|
| Workable sheet thickness | 2 - 19 mm |
| Maximum positioning speed | 200 m/min |
| Maximum acceleration | 10 m/s² |
| Axis positioning accuracy | ± 0.15 mm |
| Straight and shaped cut optimisation software | yes |
| Breakout bars | 2+1 |
| Maximum unloadable sheet | 350 kg |
| Working surface height | 925 (-25 + 30) mm |
| Installed power | 10 kVA |
