E-pump is the latest CMS intensifier innovation, combining the power density of a hydraulic pump with the energy efficiency of a direct-drive mechanical architecture for 31% better efficiency.
Benefits
Very high efficiency
The innovative tecnocut e-pump technology guarantees 31% better efficiency compared to a conventional hydraulic intensifier, partly due to a 95% reduction in hydraulic components and the direct hydraulic unit interface to eliminate pressure losses and long-term wear.
Maximum energy savings
-37% electricity consumption due to a combination of cutting cycles and rapid movements. The hybrid double-acting pressure pump with direct connection is optimized to reduce consumption, thanks to the use of a brushless servomotor controlled by an inverter. The primary motor and auxiliary motors controlled by inverters allow tecnocut e-pump to adapt better to the working conditions and eliminate starting current peaks.

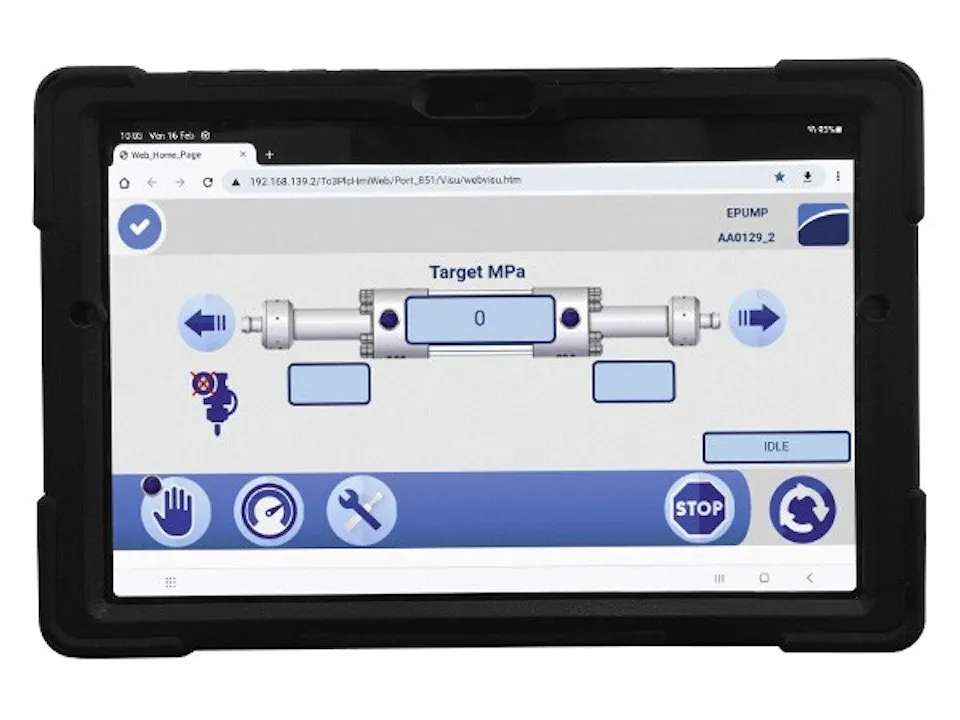

Wi-fi tablet with web hmi
The intensifier is controlled by an industrial PLC in the electrical cabinet in order to interface with CMS cutting tables, as well as third party ones. The HMI control interface is accessible from the10.4” Wi-Fi tablet and offers: -remote diagnostics - power management and control - management and control of the cycle number per cylinder - electronic cutting pressure control

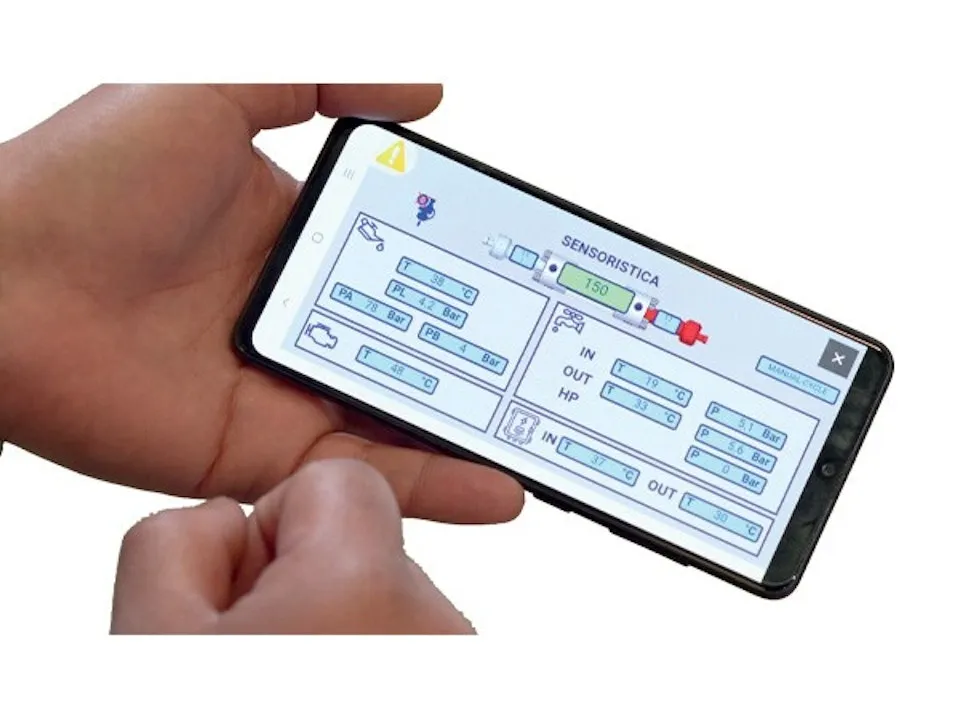

Remote management
The intensifier web interface is accessible remotely via computer or smartphone to view operation, see any alarms and activate the emergency STOP command when necessary.
CMS E-pump
E-Pump is the latest innovation in the range of CMS Glass Technology intensifiers, combining the power density of a hydraulic pump with the energy efficiency of a direct-drive mechanical architecture. It delivers 31% better operating efficiency compared to conventional hydraulic intensifiers, with up to 95% reduction in hydraulic components.
The on-board intelligence with portable Wi-Fi tablet and touch display allows monitoring and controlling operating parameters, performing diagnostics on hydraulic and high-pressure components, and remote management via computer or smartphone.
Technical data
| Power consumption (0.38 orifice at 3800 bar) | 30 kW |
|---|---|
| Maximum power consumption with closed head | 2.4 kW |
| Maximum operating pressure | 4130 bar |
| Maximum water flow rate at 3700 bar | 5 l/min |
| Maximum orifice diameter at 3700 bar | 0.40 mm |
| Overall dimensions l x w x h | 1666x906x1529 mm |
| Weight | 1400 Kg |
| Voltage (three-phase) | 400 V 50/60 Hz |
| Oil tank capacity | 13 L |
| Pressure attenuator capacity | 1.15 L |
| Cylinder stroke | 200 mm |
| Required inlet water temperature (acceptable min – max) | 5 - 25 °C |
| Nominal environment temperature (acceptable min – max) | 5 - 40 °C |
| Nominal noise | 70 db |
