3- and 4-axis CNC machining center
Benefits

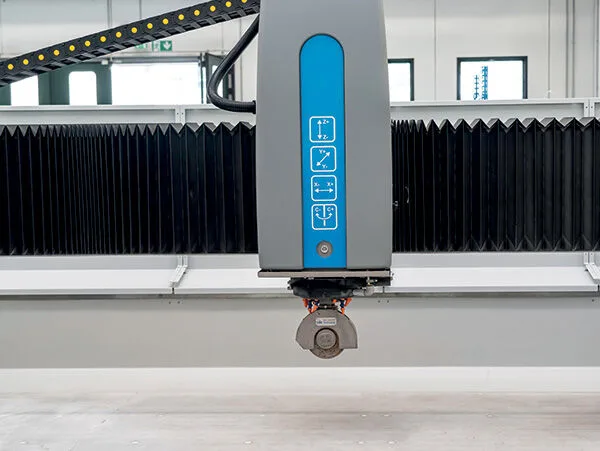

21.5" touchscreen operator interface
Console built into the machine, the 21.5" touch screen takes full advantage of the new operator interface. The operator is constantly guided through the most common steps while operating the machine.

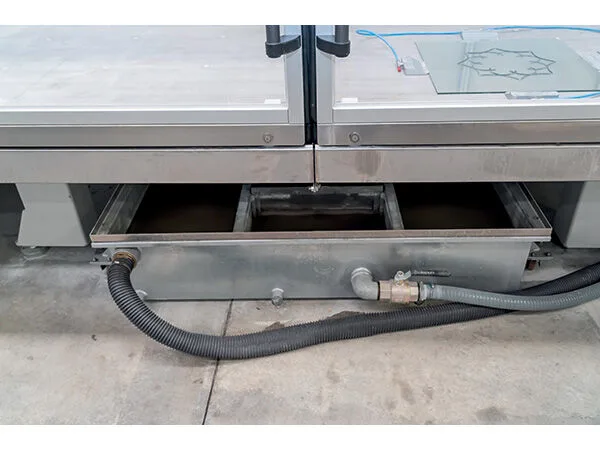

Retractable doors
The design of the retractable doors means that the machine footprint does not change even when the doors are open.

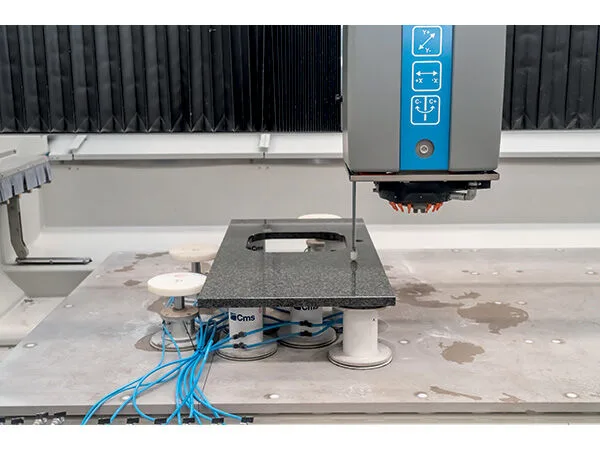

Side tool magazines
Tool magazines are located to the side for better accessibility and to offer the operator a better view of the tools in the magazine.
CMS Electa
CMS electa is the new 3- or 4-axis (optional) CNC machining center for processing flat glass, whether thick, thin, laminated or bulletproof.
CMS electa features the smallest footprint and the largest work area in its category, and can perform many types of machining: the 3-axis version performs grinding, edge polishing, drilling and milling, while the 4-axis version can also perform cup wheel polishing, diamond disc cutting, engraving and 5° chamfering.
With a maximum axis speed of 72 m/min, CMS electa guarantees top performance and is the perfect machine to increase productivity since it performs high-speed grinding and can machine multiple workpieces on the same worktable.
Technical data
| X-axis stroke | 3450 mm / 136 in |
|---|---|
| Y-axis stroke | 1800 mm / 71 in |
| Z-axis stroke | 350 mm / 14 in |
| Rotary axis (optional) | 360° continuous |
| Tool change positions | 13 + 13 |
| Electrospindle power | 11.5 KW / 15 HP |
| Revolution | 0 ÷ 12000 rpm |
| Electrospindle connection | ISO 40 |
| Torque | 18.5 Nm at 6000 rpm |
| Electrical cabinet | Built into the base |
| Weight | 4250 kg / 9370 lb |
| Overall dimensions | 6100 x 3690 x 2410 mm / 240 x 145 x 95 in |
