3-4-axis horizontal machining center
Benefits
Solid aluminium surface

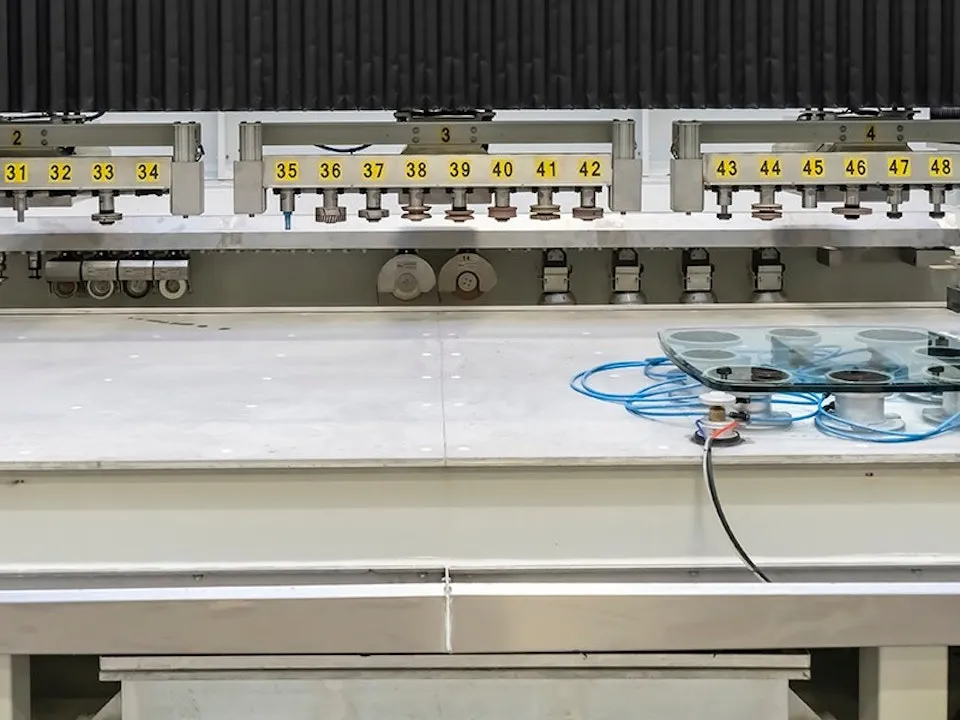

18mm, duraluminum worktable for greater stability and durability. The table can be re-surfaced over 10X times.
Limitless magazines

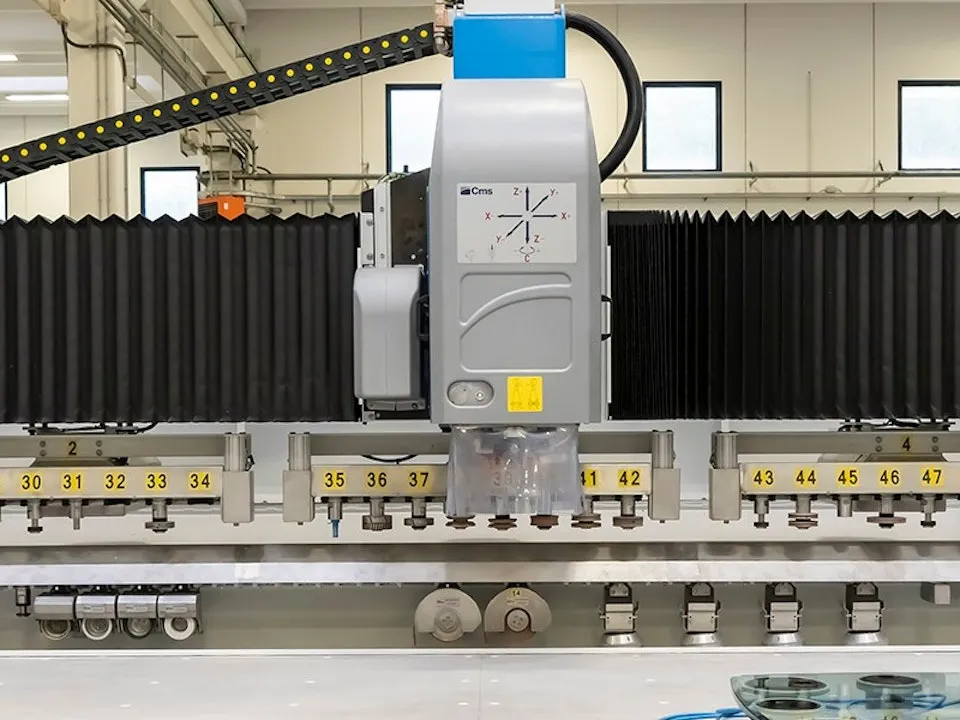

The extensive modularity of the magazines means the machine can be adapted for any requirement. The magazines can be installed at the back, on the sides, or even under the bridge for a 9.5 second tool change.
Easy loading

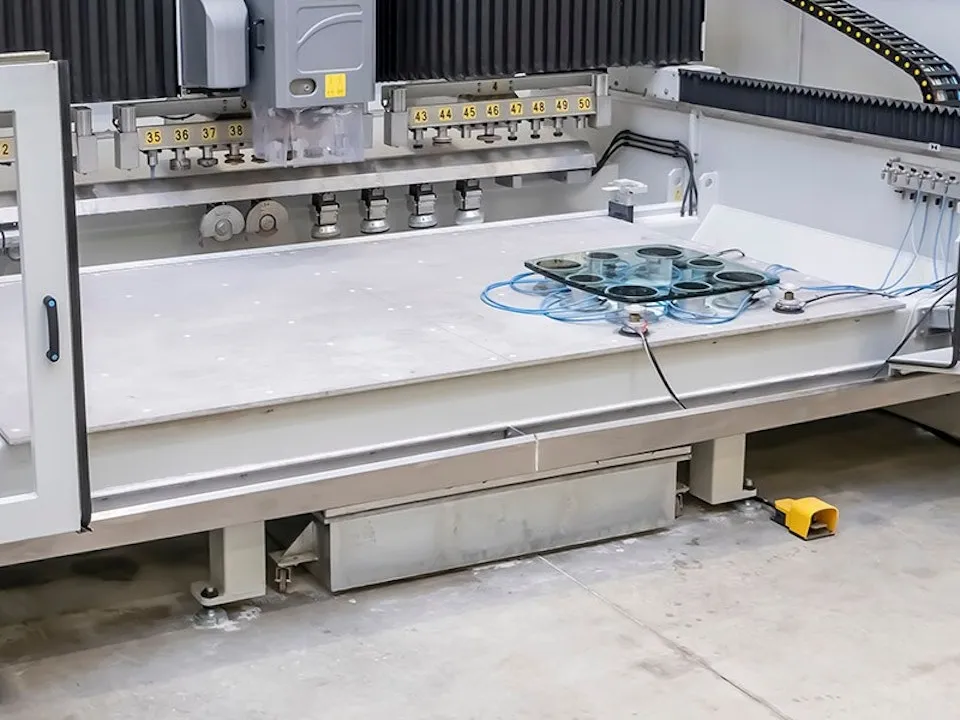

the worktable’s height of 780 mm (31 in) and reduced distance of the table from the operator, places CMS Gea at the top of its class for loading ergonomics.

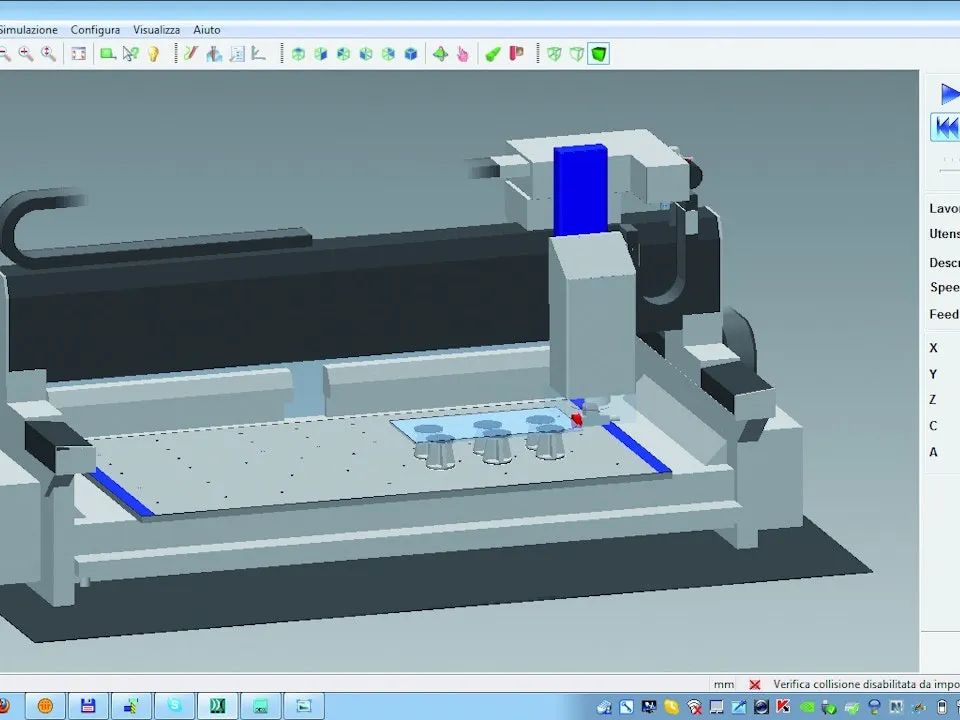

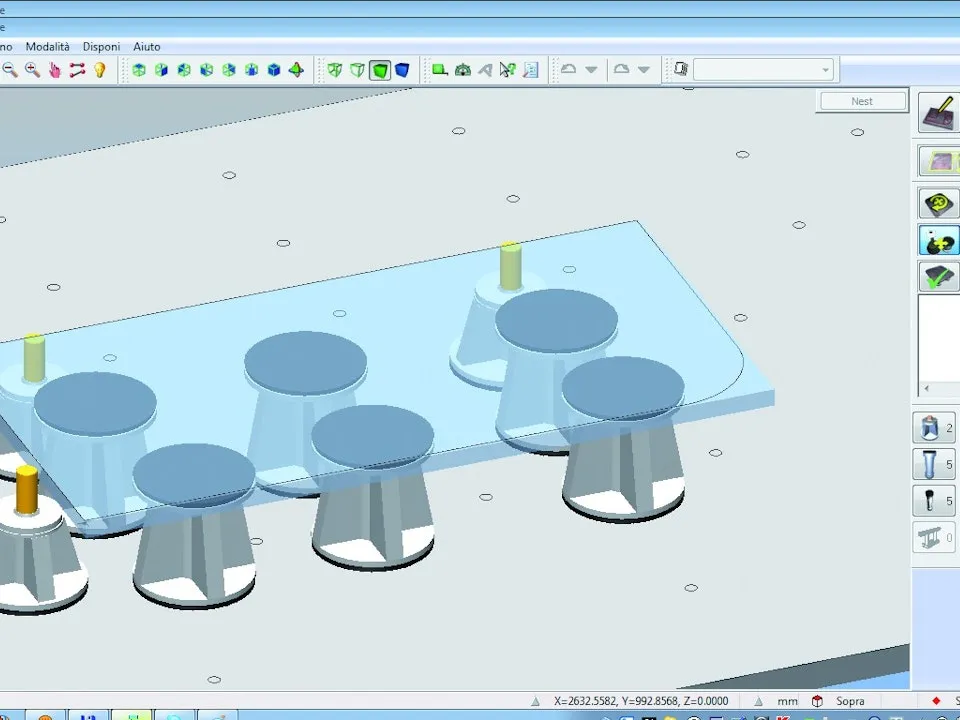

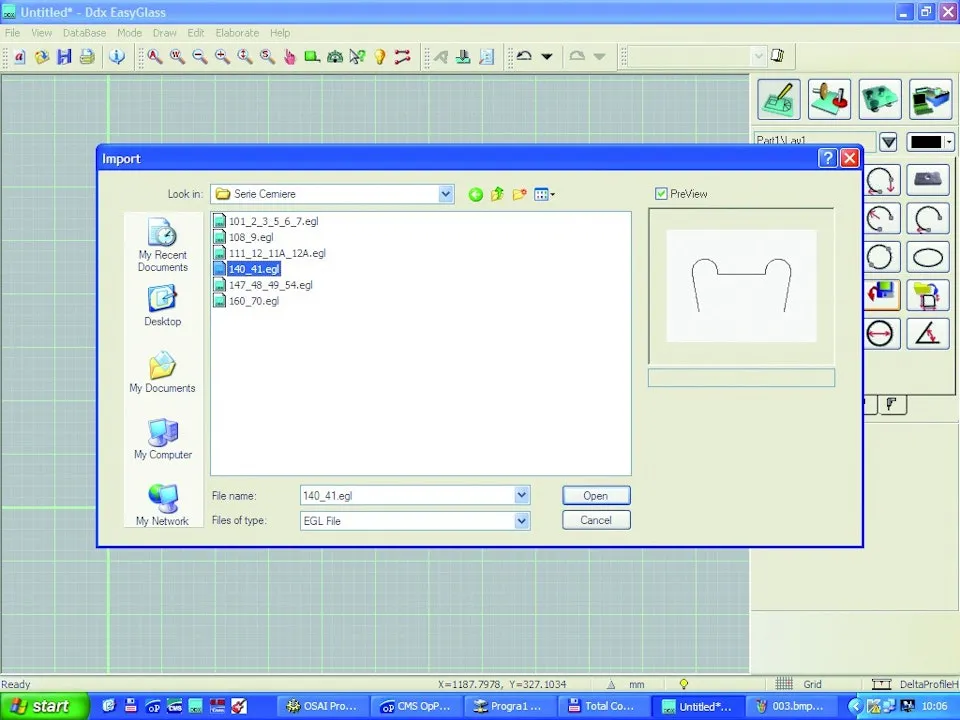

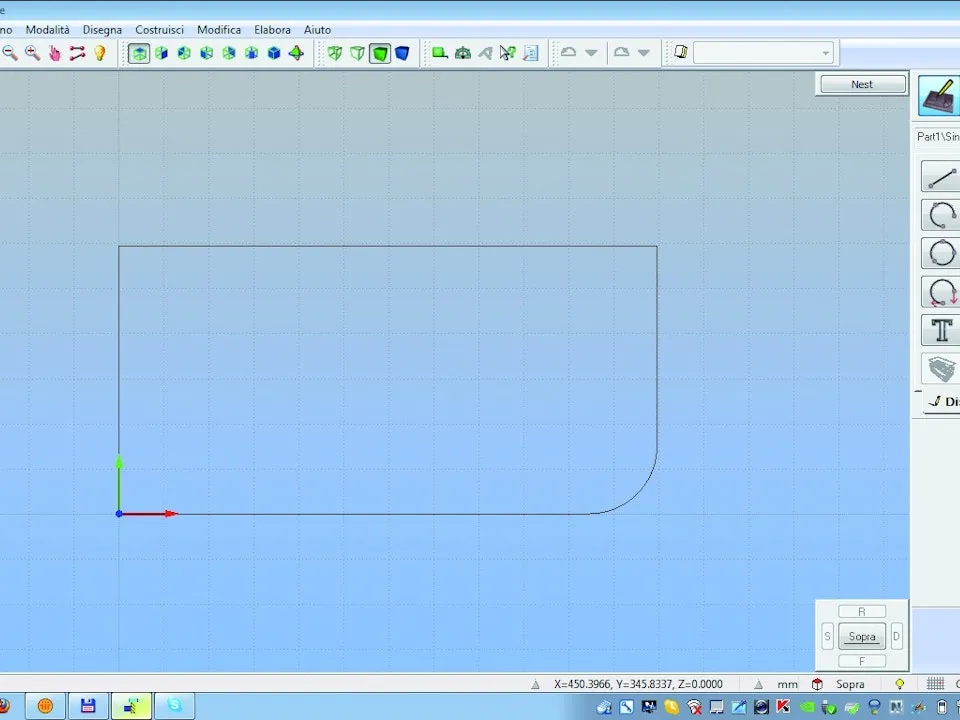

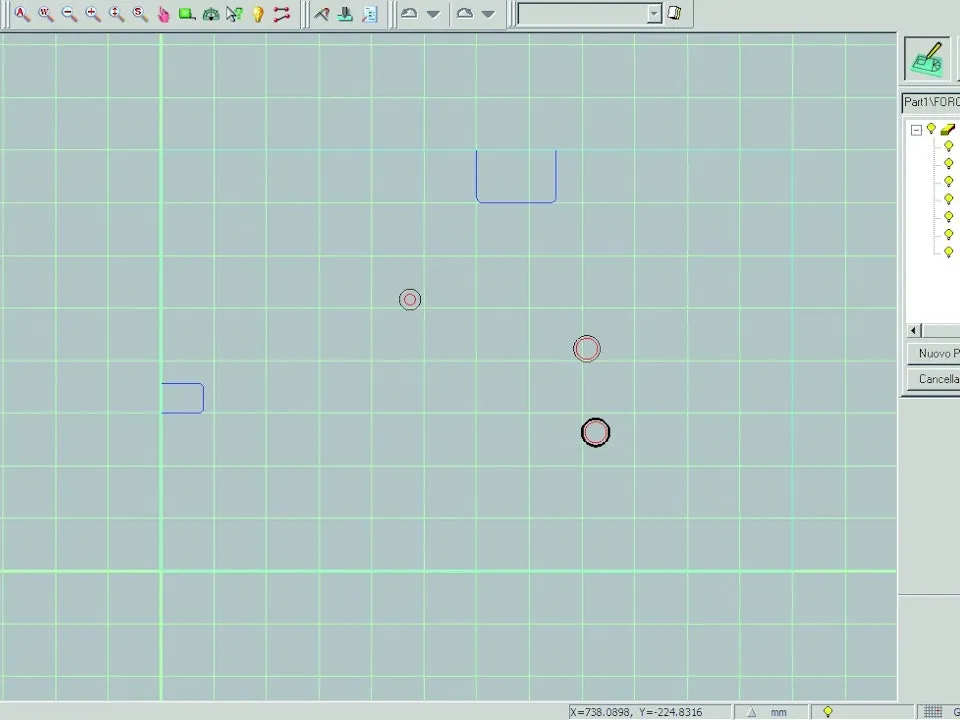

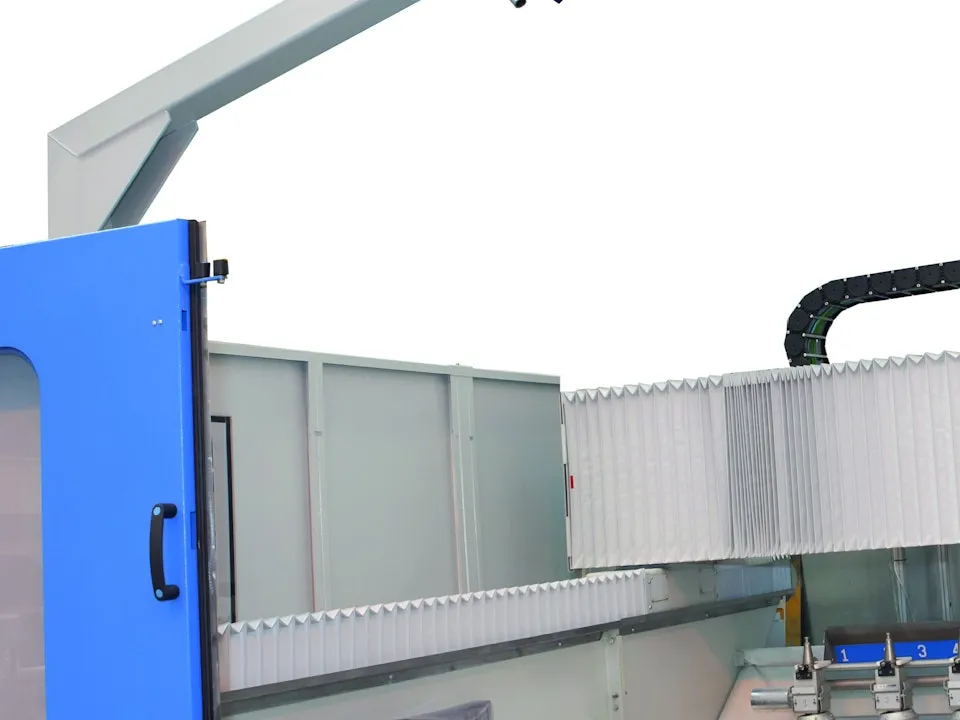

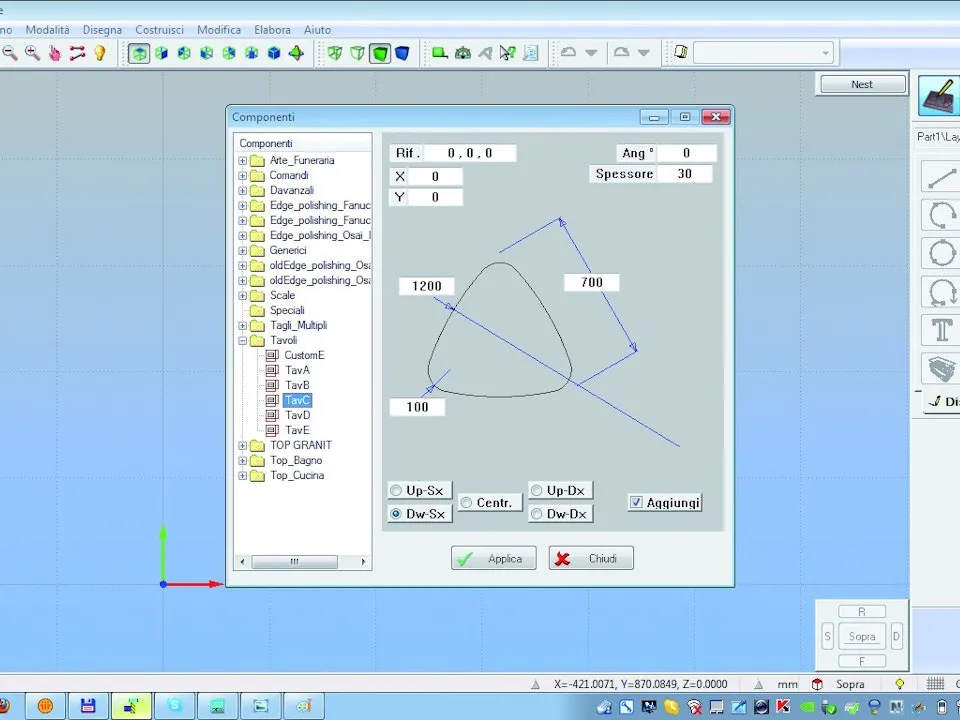

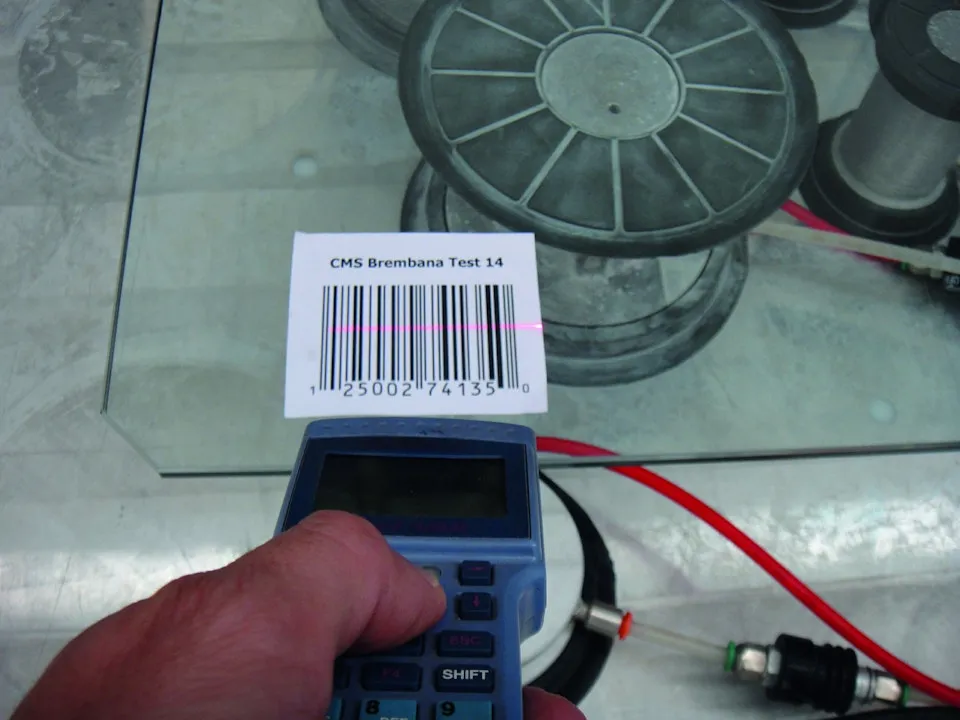

CMS Gea

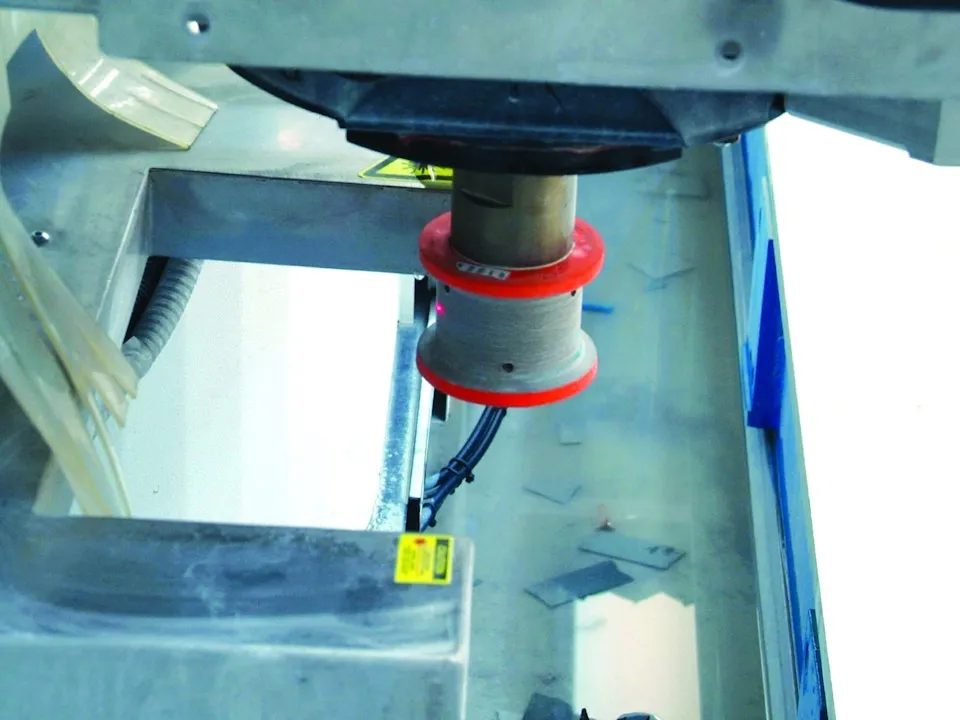

3 or 4-axis (optional) Numerically Controlled machining center to machine both thin and thick flat glass as well as laminated glass and bullet-proof glass. This machine can perform all types of grinding, polishing, drilling, milling, sawing with diamond blade, V-Grooving, engraving, and 5° bevelling. gantry system on the Y-Axis provides the bridge motion via two brushless servo motors synchronized by the Numeric Control, in order to ensure extreme accuracy by reducing positioning errors caused by mechanical elasticity large duraluminum work surface. The 780 mm ( 31 in ) worktable height makes it easier to load and unload monoblock, ribbed, electrically welded, and stress relieved ultra-thick steel base guarantees sturdiness and rigidity for difficult machining work and the longevity of the machine pre-setting is integrated into the tool magazine as to not infringe on the working area of the table dynamic compensation of the polishing wheels for excellent machining quality
Technical data
| X axis stroke | 3800 mm / 150 in |
|---|---|
| Y axis stroke | 2550 mm / 88 in |
| Z axis stroke | 420 mm / 16 in |
| Maximum workable part size | 3700 x 2000 mm / 146 x 79in |
| Rotary axis (optional) | C / 360° stepless |
| Tool change stations | 12 ÷ 120 |
| Power | 13,5 KW / 18 HP (S1) 21 KW / 28 HP (S6) / 30 KW / 40 HP (S1) 36 KW / 48 HP (S6) |
| Revolution | 0 ÷ 15000 rpm / 0 ÷ 12000 rpm |
| Overall dimensions | A / 4715 mm / 185 in |
| B | 6350 mm / 250 in (8070 mm / 318 in with open doors) |
| H | 2884 mm / 113 in |
| Electrical cabinet | integrated in the base |
| Weight | 7000 kg / 15430 lb |
