The CMS Proxima automatic horizontal seaming machine is the ideal solution for small and medium glass factories, designed to be combined with tilting float or laminated glass cutting tables.
CMS Proxima

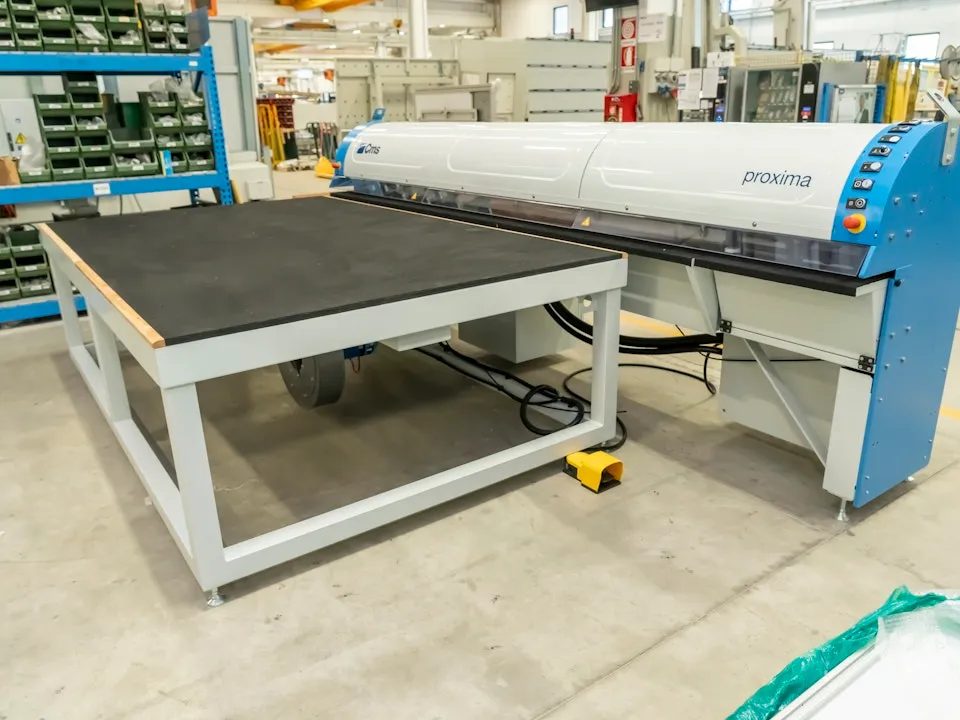

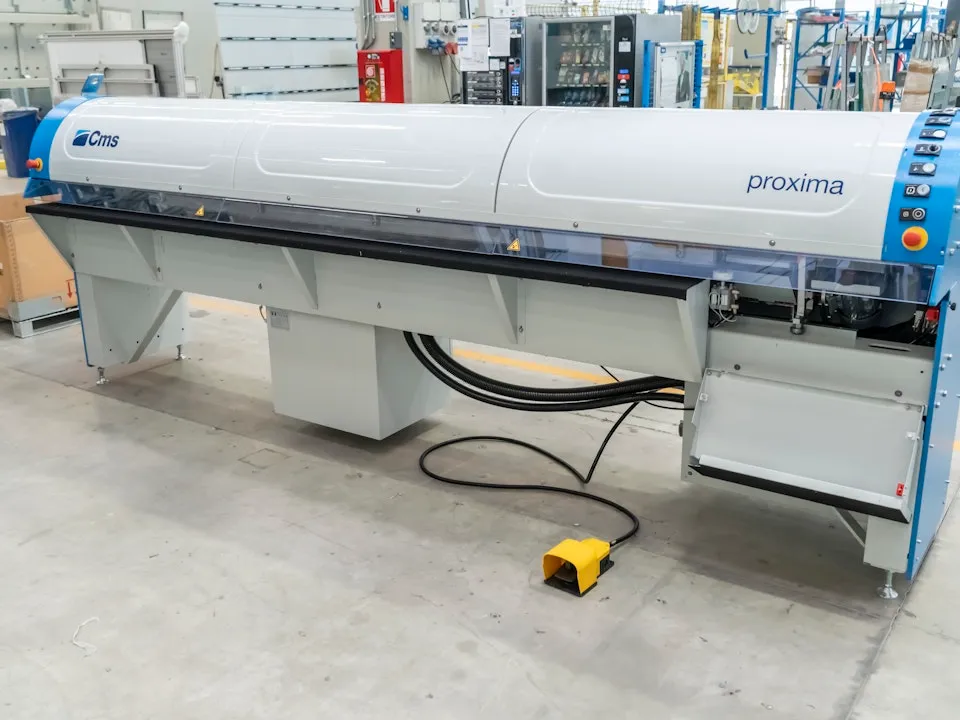

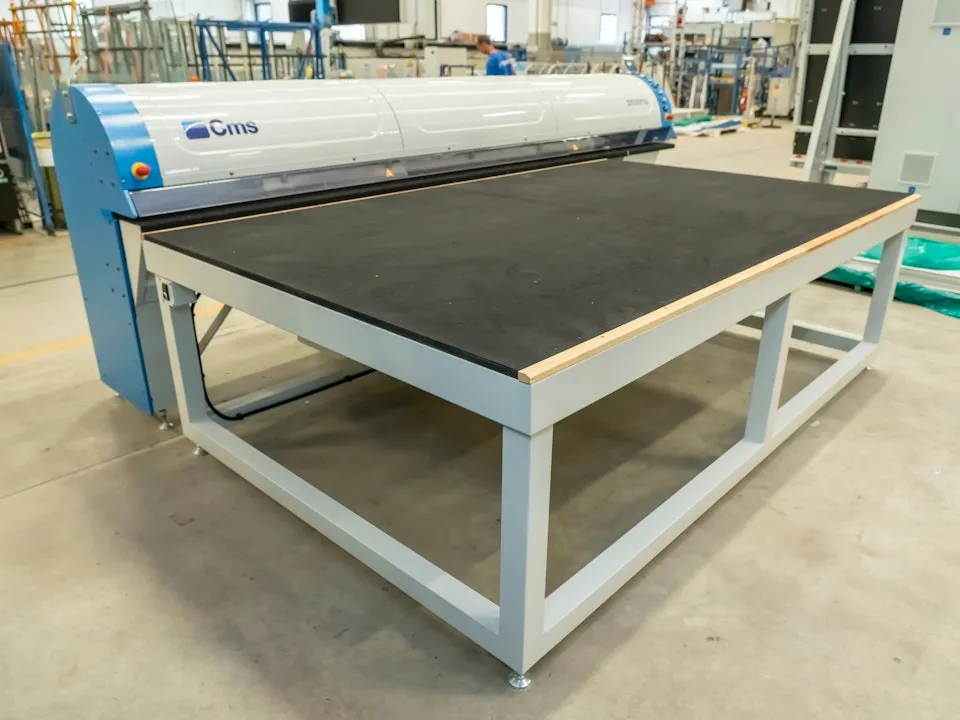

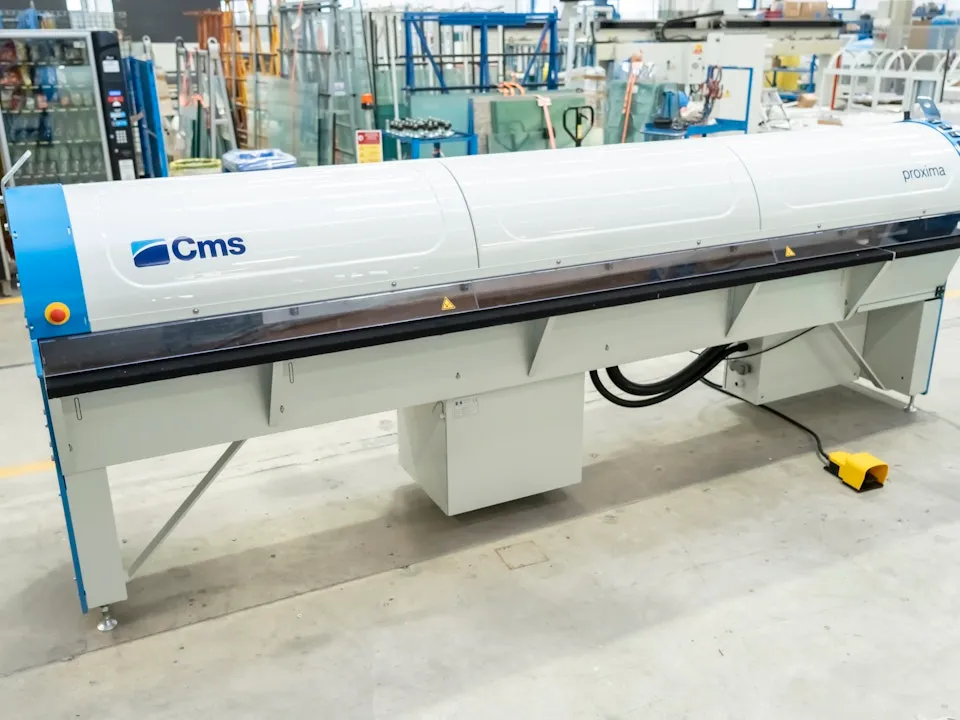

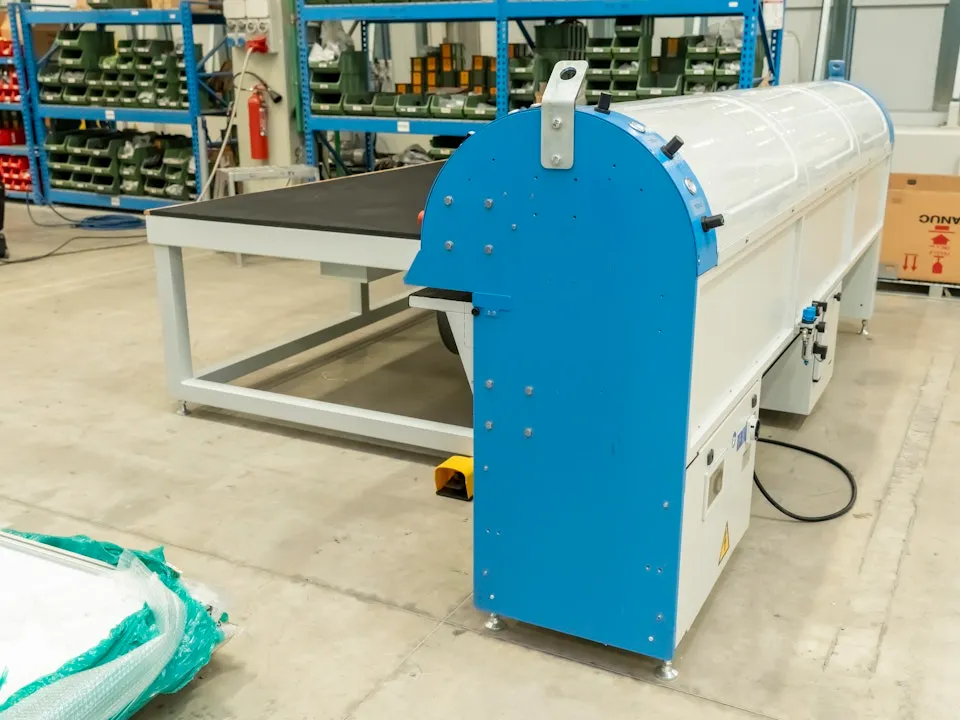

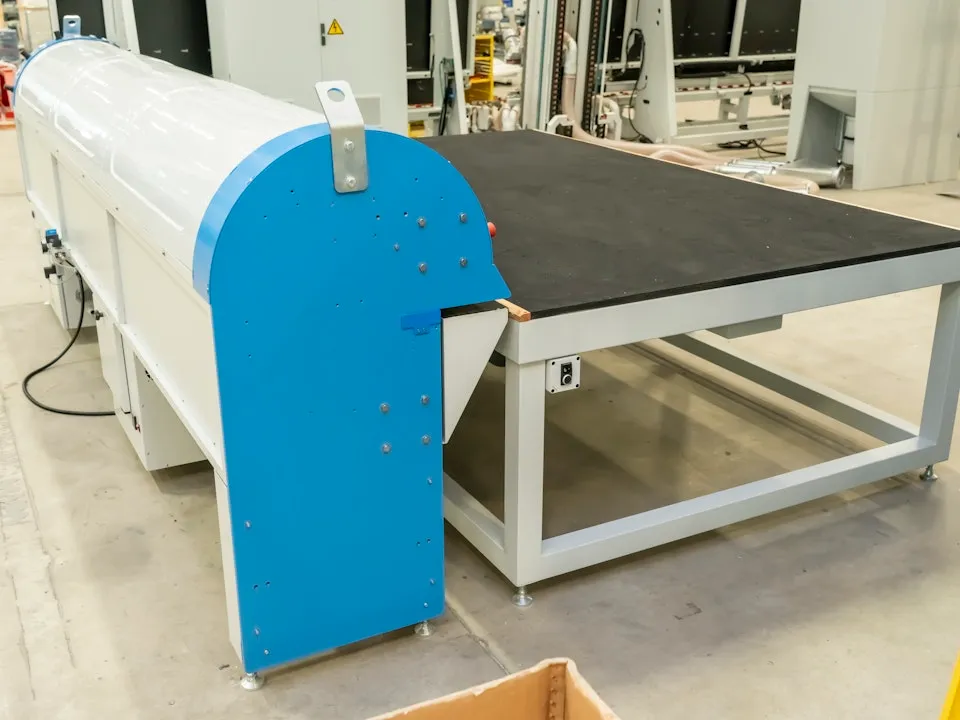

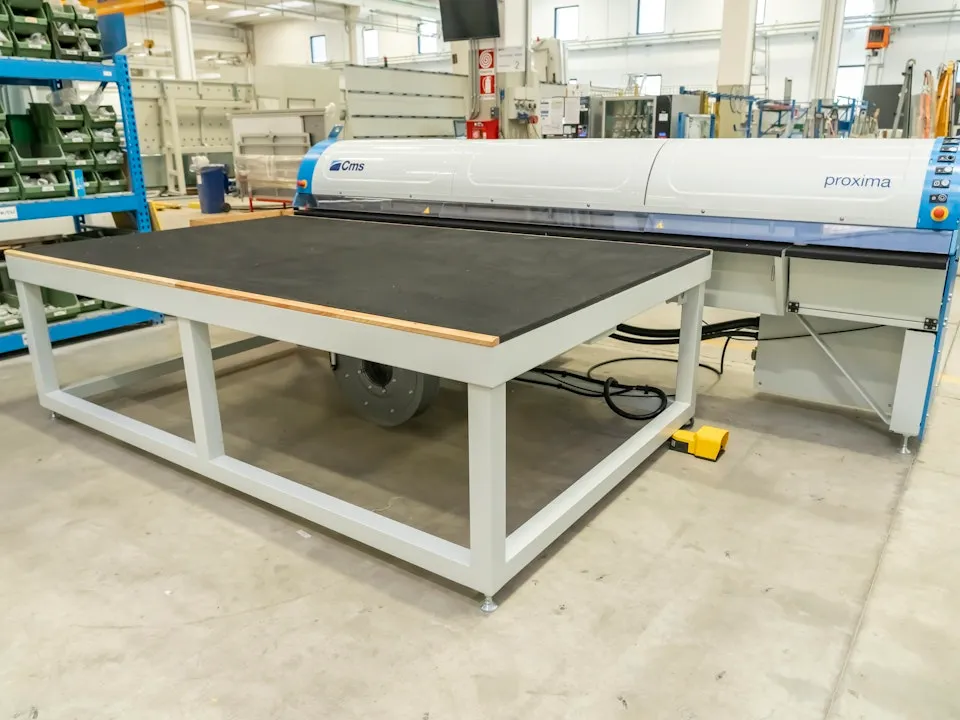

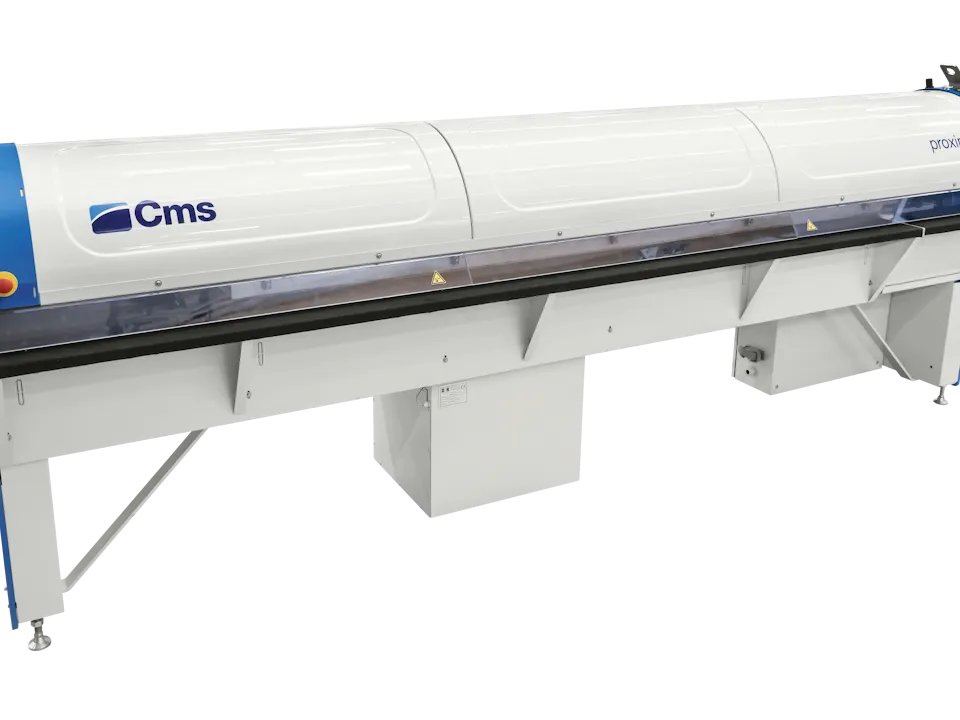

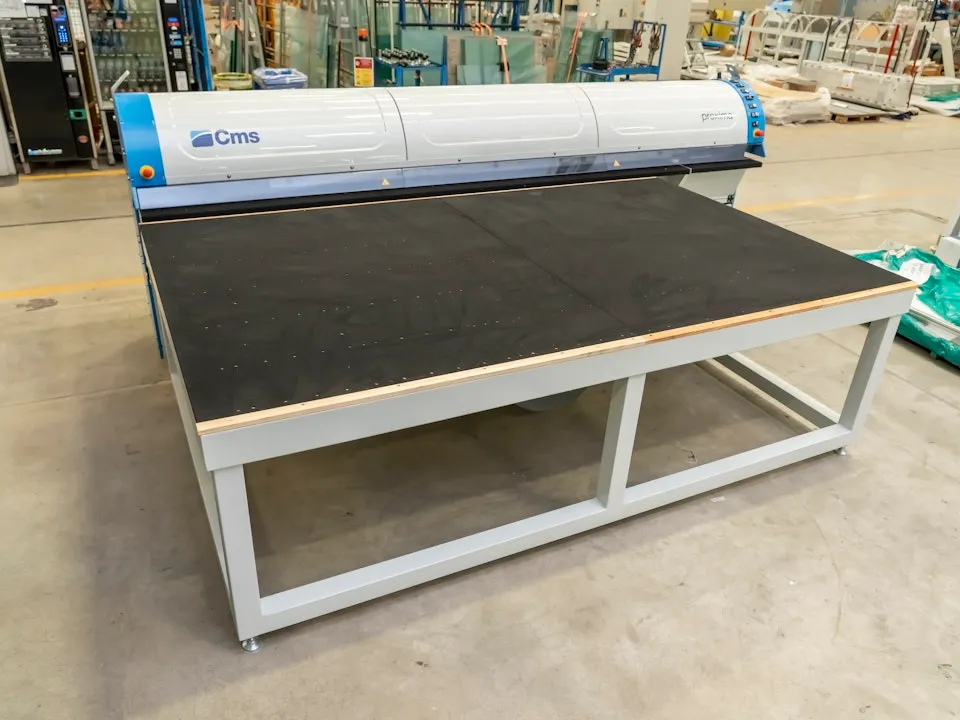

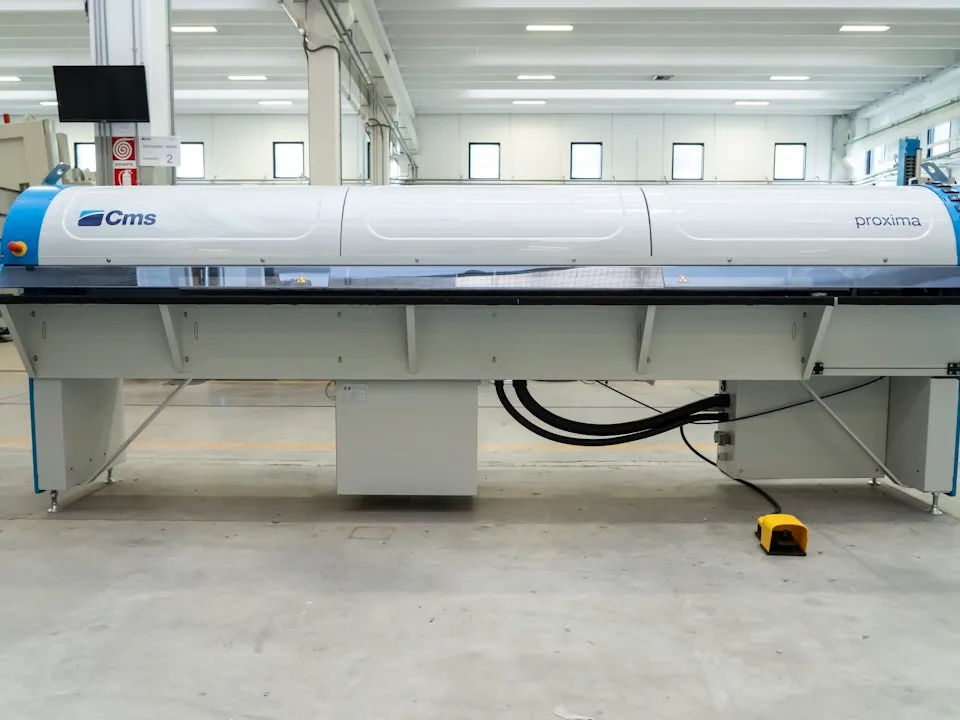

The CMS Proxima automatic horizontal seaming machine is the ideal solution for all small and medium glass factories that need to venture into seaming with a modest investment. This machine has been designed to be combined with both tilting float glass cutting tables and laminated glass cutting tables.
Key benefits: dry solution for operating cost savings, installation and set-up in one day, and a maximum length machinable in one pass of 2.6 m with no limit when using multiple passes.
Technical data
| Machine dimensions | mm / 765 x 3830, H1365 |
|---|---|
| Total weight | kg / 900 |
| Working height | mm / 880 – 980 |
| Sheet length machinable in a single pass | mm / 2600 |
| Machinable glass thickness | mm / 4 – 19 |
| Seaming speed | m/min / 20 |
| Extractors | no. / 1 |
| Dry grinders | no. / 2 |
| Installed power | kW / 3 |
| Standard voltage | V / Hz / 400 / 50 |
