Smartline is designed to redefine industry standards of excellence by improving operating efficiency, in a brand new, innovative, and compact waterjet cutting design.
Benefits

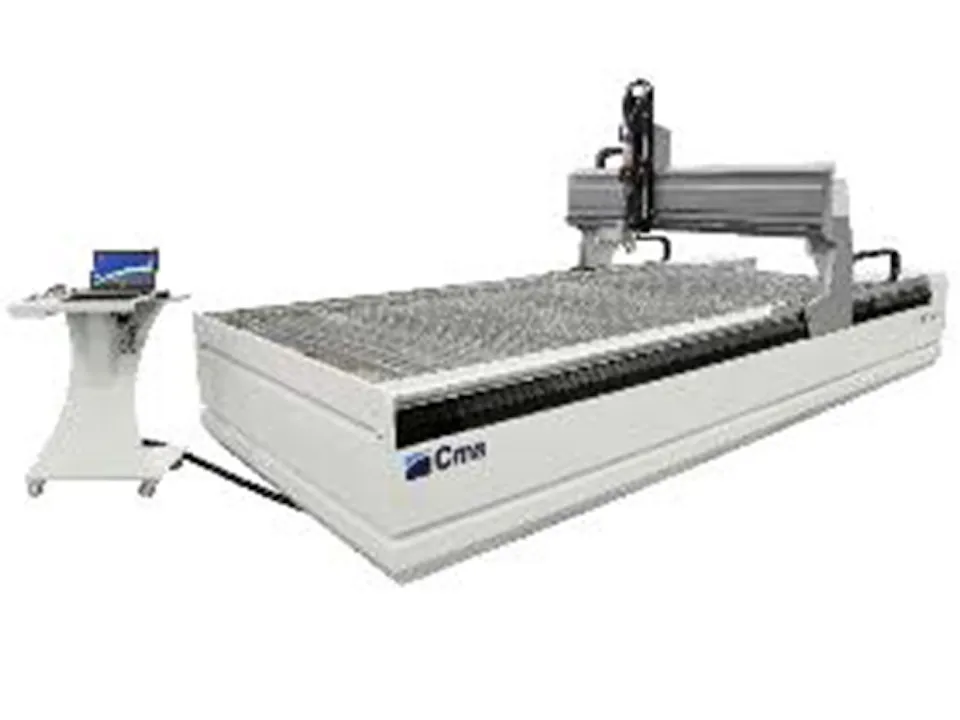

Easy loading /unloading: smart operations
Excellent access to the cutting area: easy access on 3 sides to load and unload the material.

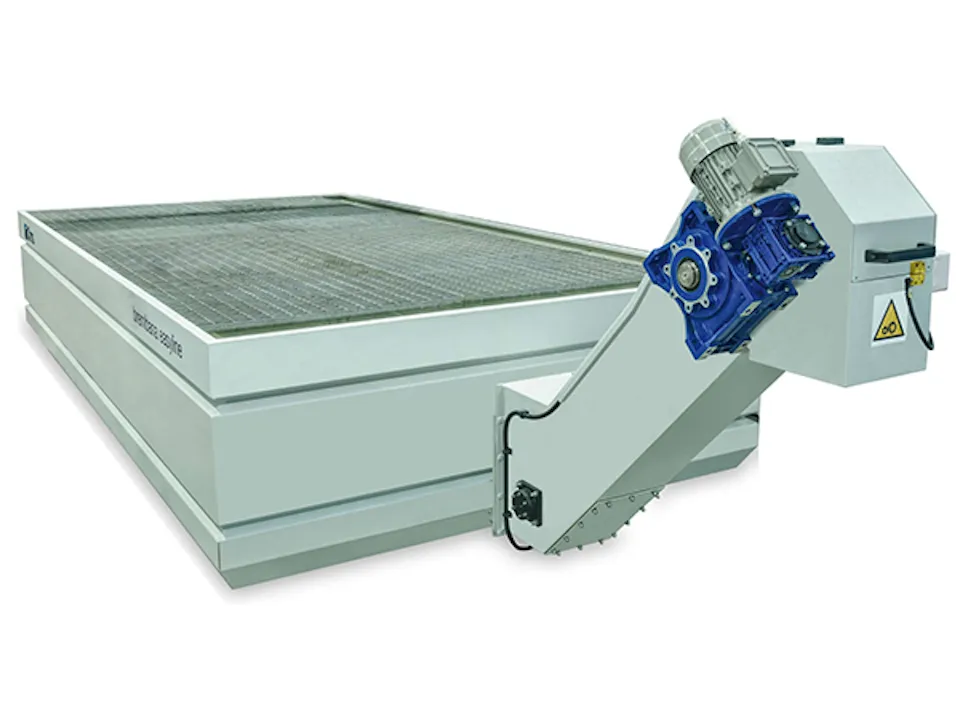

91% less operative costs: smart maintenance
The catch tank with special anti rust ceramic painting is designed to fit the new Evo 4 chain dredge for exhausted abrasive removal even later after installation with 91% less maintenance costs.

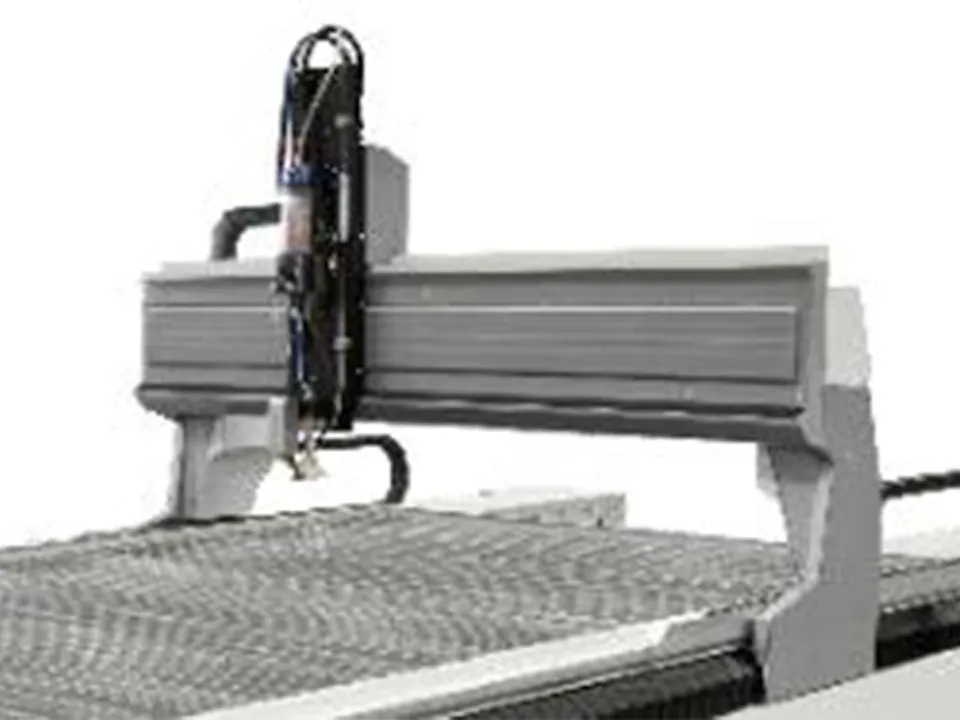

High performance: smart productivity
Rapid speed up to 50 m/ min and acceleration up to 3 m/s 2 top notch performance in the category to get maximum productivity with 3 and 5 axis configuration.

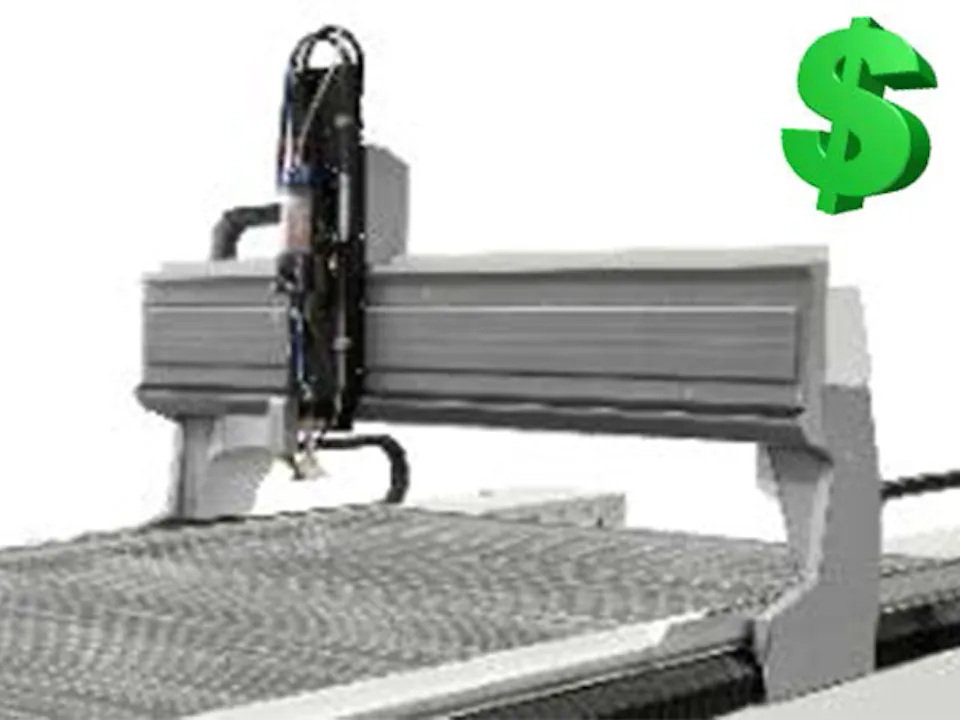

Best price/performance: smart investment
High price/performance ratio for a cutting solution configurable to satisfy every application needs based on customer s investment plan.
CMS Smartline
Smartline is designed to redefine industry standards of excellence by improving operating efficiency, while maintaining CMS’ renowned reputation for unparalleled construction and working quality. It includes all the safety and performance features typical of CMS Waterjet machines, in a brand new, innovative, and compact design.
Rapid speed up to 50 m/min and acceleration up to 3 m/s² deliver top-notch performance in the category, with 3- and 5-axis configuration options and a best price/performance ratio.
Technical data
| X axis | 3000 mm / 118 in / 4000 mm / 157 in |
|---|---|
| Y axis | 2000 mm / 79 in |
| Z axis | 250 mm / 9.8 in (150 mm / 5.9 in with 5-axis head) |
| C axis | Infinite |
| B axis | ± 60° |
| Bed size | 3330 x 2080 mm / 131 x 82 in / 4150 x 2080 mm / 163 x 82 in |
| Overall dimensions with light barriers | 4560 x 6140 mm / 179 x 241 in / 4560 x 7190 mm / 179 x 283 in |
