CNC vertical drilling and milling machine
Benefits
Minimum tool change times

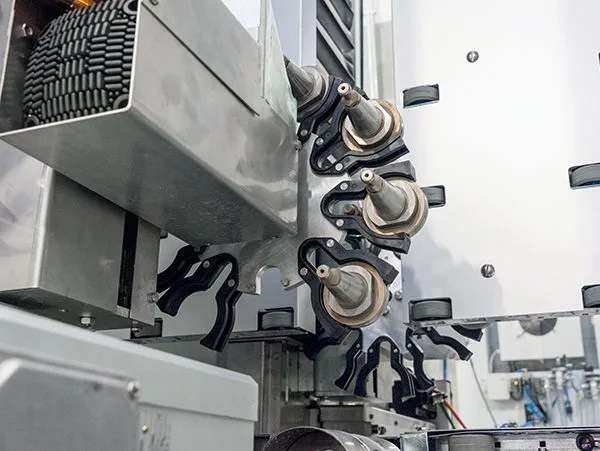

The machine has two 9 + 9 position tool magazines fixed integrally with the vertical carriage. In this way, the tool change operation takes just 10 seconds regardless of the processing area.
Tools always at the best performance

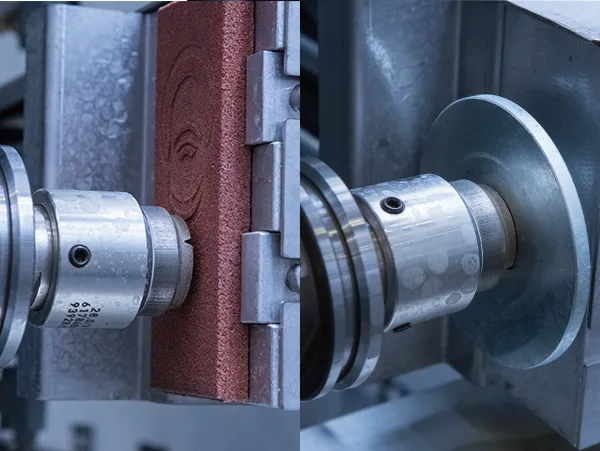

To ensure maximum machining precision, the machine has an automatic measurement system for core drill bits with centesimal precision. It is also possible to re-true the core bits completely automatically, keeping tools working at maximum performance.
Anti scratch system

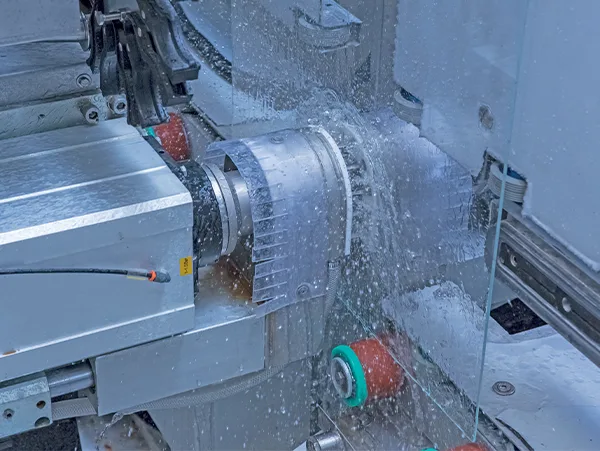

During milling and profiling operations, the pressers remain separated from the glass by 0.2 mm and thanks to the water cushion system they ensure the absence of vibrations, perfect tool cooling and uniformity of chamfer size along the entire sheet.
Perfect for low emission glasses

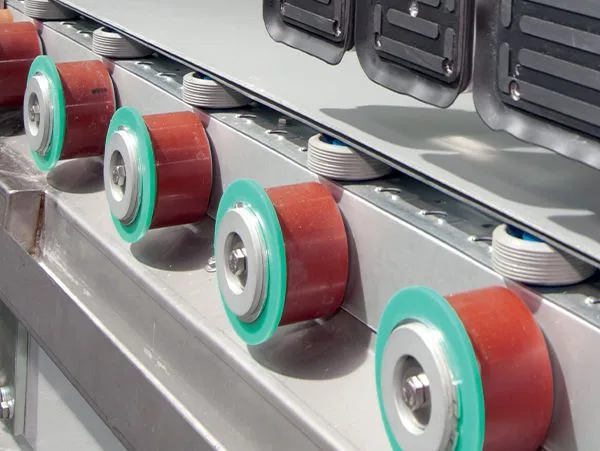

The stop guarantees positioning with an accuracy of fewer than 3 tenths of a millimeter thanks to the pinion and rack transmission. Sheet zeroing takes place without stapling the surface, making it possible to process Low-E glasses without damaging the coating.
CMS Vertec
CNC vertical machine for drilling, countersinking, milling and notching operations on monolithic, laminated and Low-E glass. The machine can work both rectangular and shaped glass sheets (one rectilinear side required).
Two coaxial opposed electrospindles with internal and external water cooling enable a higher finishing and machining quality. The two 9+9 station NC-controlled rotating tool cribs installed on a carriage fixed to the electrospindle ensure tool change operations in the shortest time possible.
Technical data
| Maximum workable length | 3200 / 4500 / 6000 mm — 126 / 177 / 236 in |
|---|---|
| Maximum workable height | 2220 / 2600 / 3300 mm — 86 / 102 / 130 in |
| Minimum workable dimension | 420 × 180 mm — 16 × 7 in |
| Glass workable thickness | 3 ÷ 30 mm — ⅛ ÷ 1¼ in |
| Drilling bits diameter | 3 ÷ 70 mm — ⅛ ÷ 2½ in |
| Electrospindle power | 3.7 KW / 5 HP (S1) — 4.4 KW / 5.8 HP (S6) |
