Compact 3/4-axis CNC machining center for edge contouring, milling, drilling and profiling of marble, granite and ceramics.
Benefits

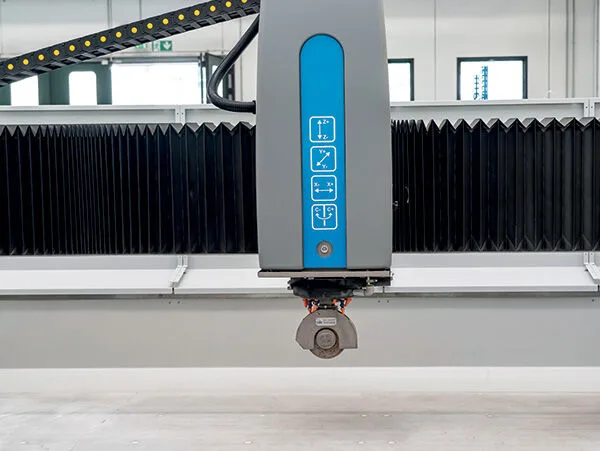

4th axis with angular transmissions
The rotary C axis (4th axis) with a fast speed of 9000°/min can accommodate angular transmissions with continuous 360° rotation.

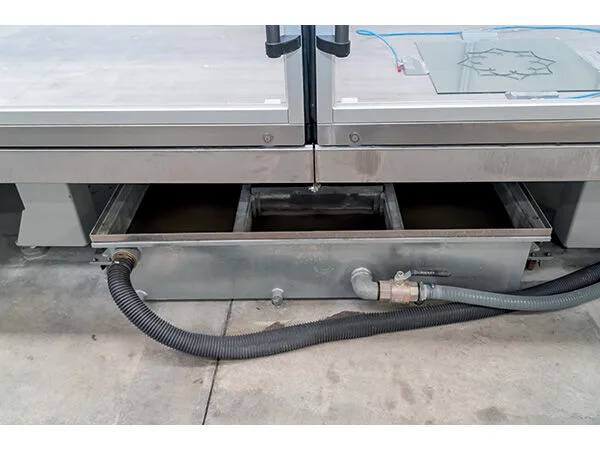

Integrated water recovery tanks
External 580 L water recovery tank plus a tank for the liquid ring vacuum pump coolant. Both sit below the base to minimize the overall footprint of the machining center.

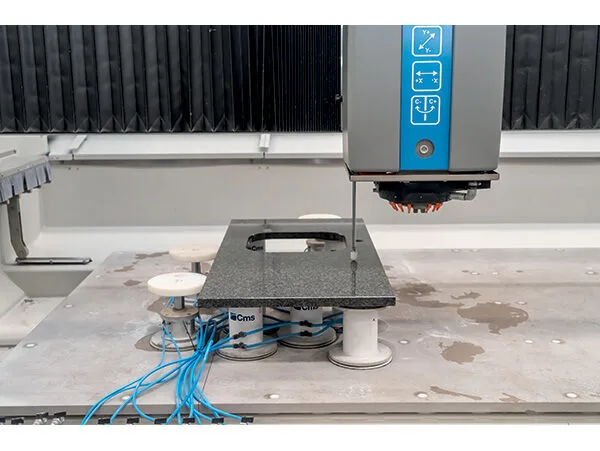

Thickness probe
Thickness probe acquires the actual thickness of the slab to be machined, ensuring a perfect finished workpiece every time.

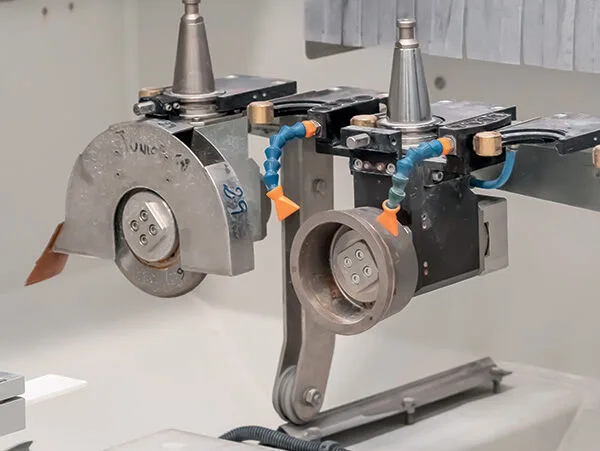

90° angular transmissions
90° angular transmission for flat grinding wheels, cup wheels and polishing discs — maximum versatility with a single spindle.
Brembana Electa
Brembana Electa is a CNC machining center with 3/4 interpolated axes for machining slabs and blocks of marble, granite, synthetic stone and ceramics. It can quickly and accurately perform any type of edge contouring (coarse or smooth), milling, drilling, countersinking, pocketing, bas-reliefs and lettering.
The monobloc structure and full integration of guards, sliding doors, water collection tanks, systems and the electrical cabinet make Electa the most compact machining center in the CMS Stone Technology range — and ensure the best workpiece-to-machine size ratio available.
Technical data
| X-axis stroke — speed | 3450 mm / 136 in — 72 m/min |
|---|---|
| Y-axis stroke — speed | 1800 mm / 71 in — 72 m/min |
| Z-axis stroke — speed | 350 mm / 14 in — 15 m/min |
| Rotary axis (optional) | C = 360° continuous |
| Tool change stations | 13 + 13 |
| Electrospindle power | 11.5 kW / 15 HP |
| Electrospindle rotation | 0 ÷ 15 000 rpm |
| Electrospindle connection | ISO 40 |
| Electrospindle torque | 18.5 Nm at 6 000 rpm |
| Electrical cabinet | Built into the base |
| Weight | 4 600 kg / 10 100 lb |
| Minimum installation space | 6100 × 2950 × 2600 mm / 240 × 116 × 102 in |
