5/6 interpolated axes machining center
Benefits

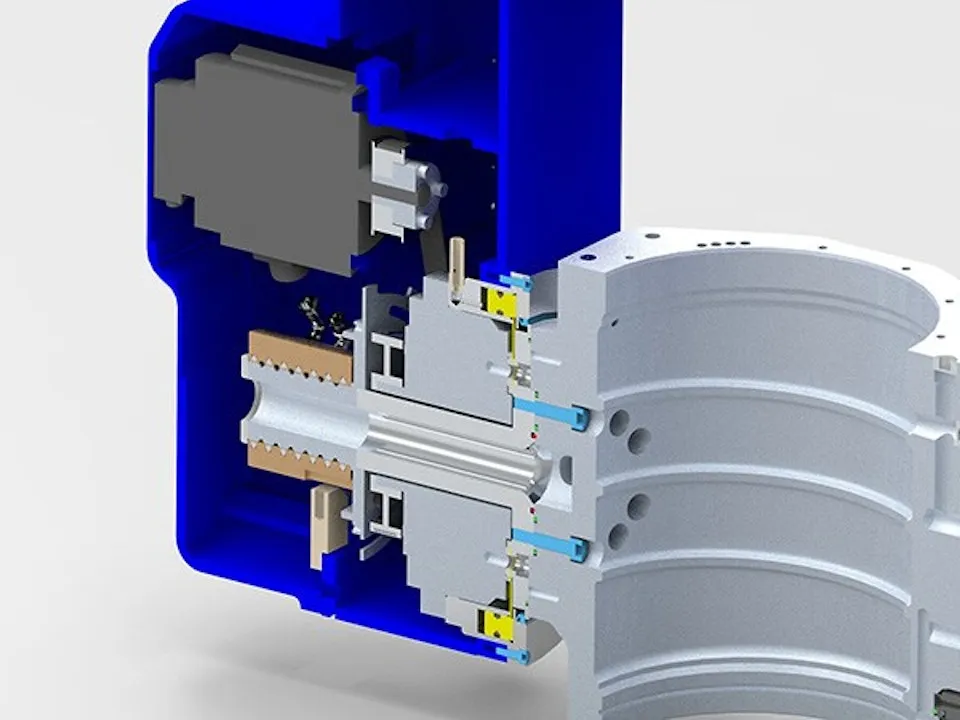

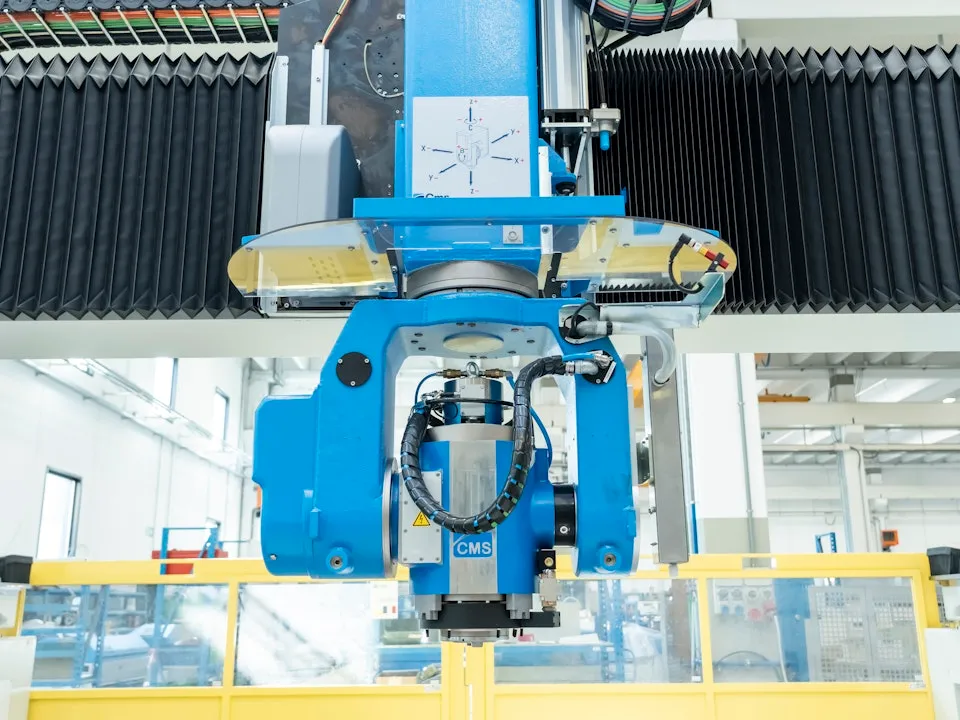

+43% stiffness on rotary axes
Pneumatic brakes on B and C axes guarantee maximum stiffness to achieve superior performance and quality.

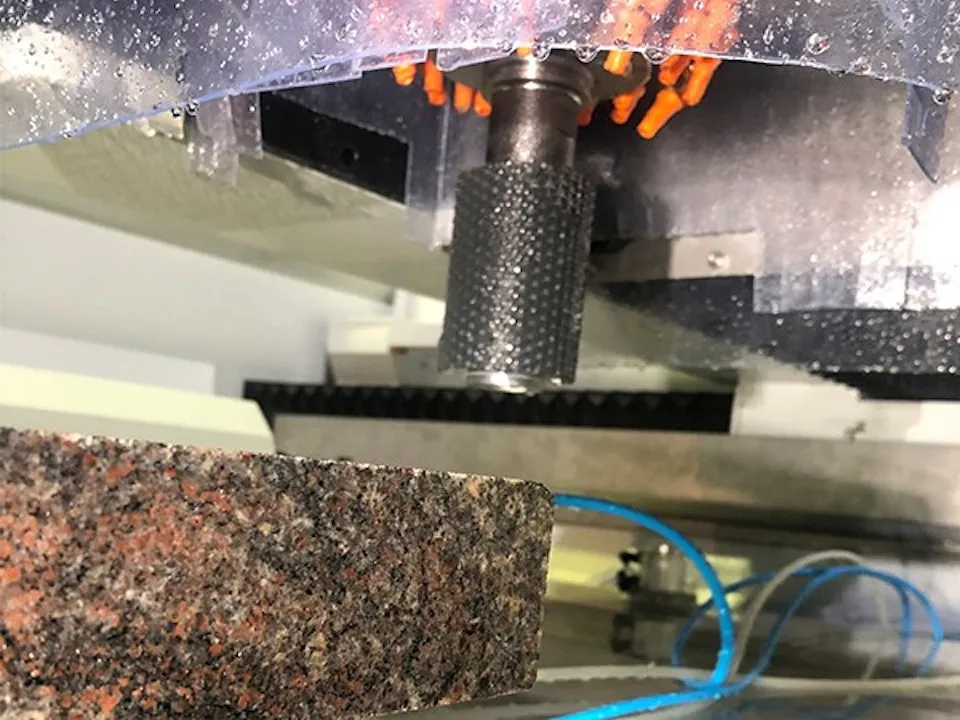

Quality without compromise

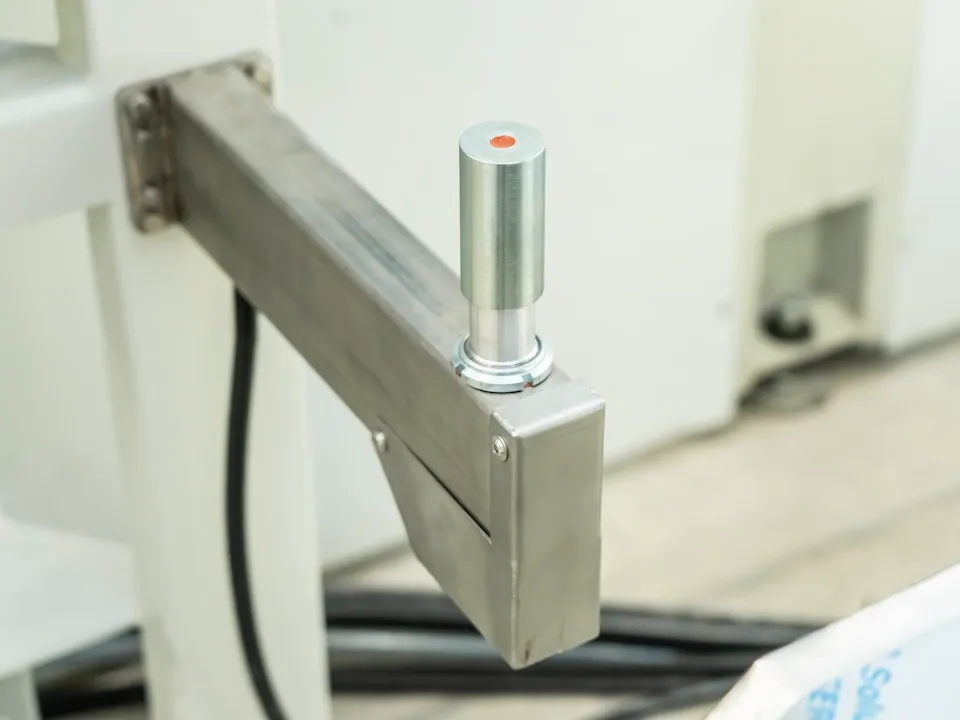

Tool wear control system, which enables the automatic adjustment of the tool position, ensuring top quality finishing.

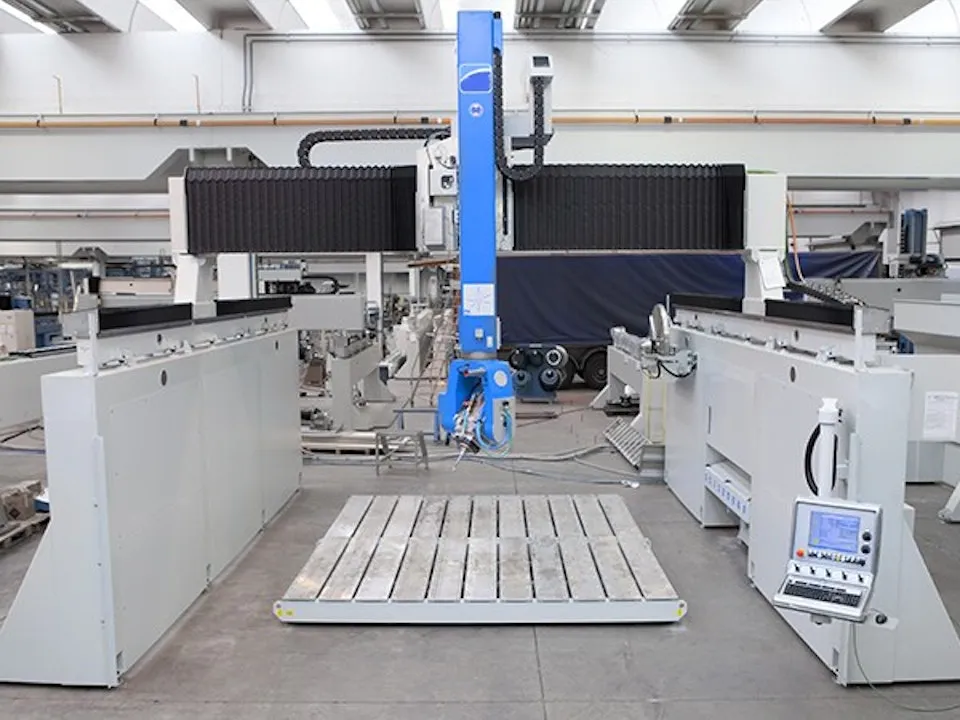

Maximum freedom for your projects
Z-axis stroke up to 2000 mm for ultra-thick workpiece machining.

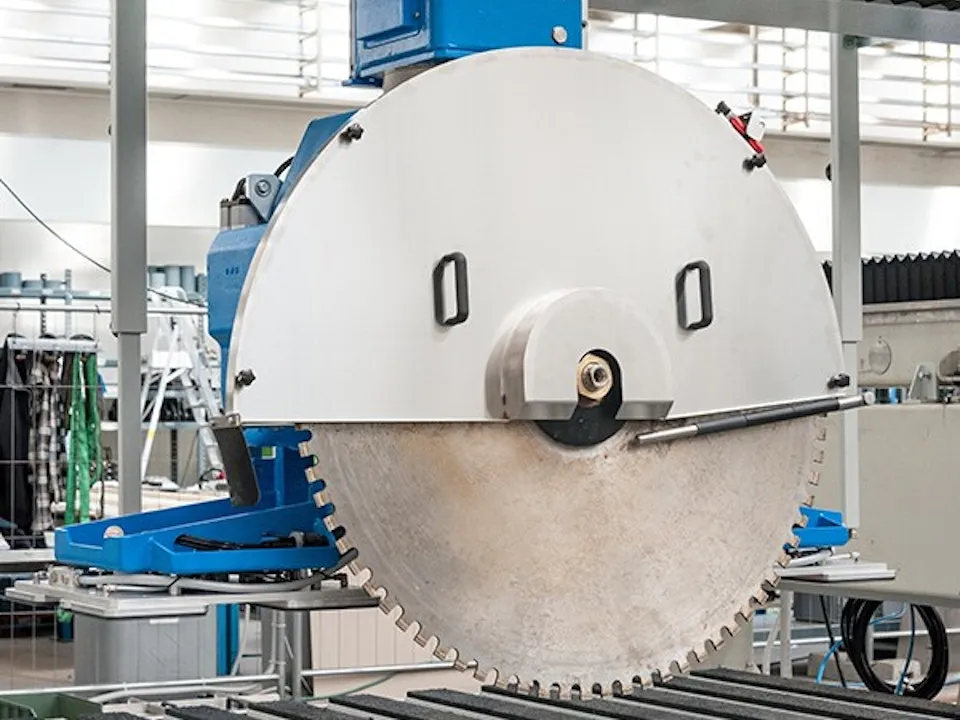

The best solution for block machining
Its extraordinary stability allows to install disks with a diameter up to 1.200 mm.
Brembana G-rex
brembana g-rex is a Numerically Controlled Machining Center with five/six interpolated axes suitable for processing both slabs and blocks even with high thickness in marble, granite, composite stone, and ceramic. It can perform each type of raw and polished contouring, as well as milling, drilling, countersinking, bas relief, writing, and blade working. This machine can be customized to the customer’s needs and it’s especially designed for fabshops involved in architectural projects and in building industry in general.
Technical data
| X Axes stroke | 3800 - 4250 mm / 149 - 167 in |
|---|---|
| Y Axes stroke | 3000 ÷ 18500 mm / 118 ÷ 728 in |
| Z Axes stoke | 900 ÷ 2000 mm / 35 ÷ 79 in |
| Rotating axis | B ±100° |
| No. stations tool changer | 11 ÷ ∞ (multiples of 11) + blade holder |
| Power | 13 kW / 23 kW |
| Revolution | 0÷8000 rpm |
| Connection | ISO 50 |
| Torque | 120 Nm at 1000 rpm / 220 Nm at 1000 rpm |
| Electrical cabinet | Fixed on right shoulder |
