High pressure intensifier
Benefits

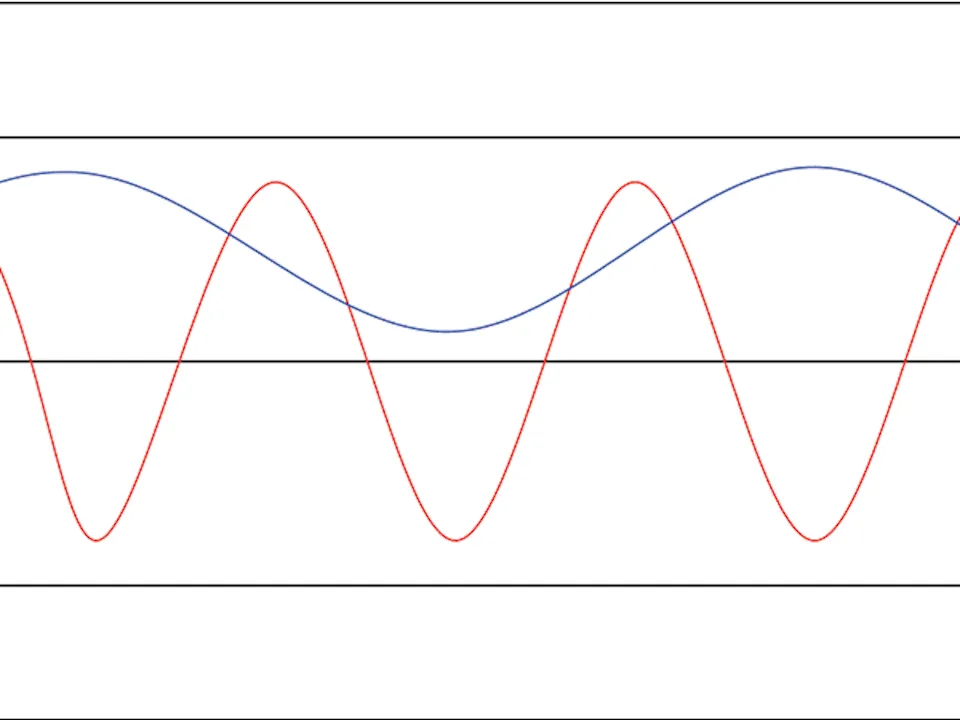

Constant output pressure for better cutting quality
Hydraulic intensifier with 2 or 3 independent and electronically syncronized parallel cylinders to guarantee a constant signal of output pressure without the use of attenuator.

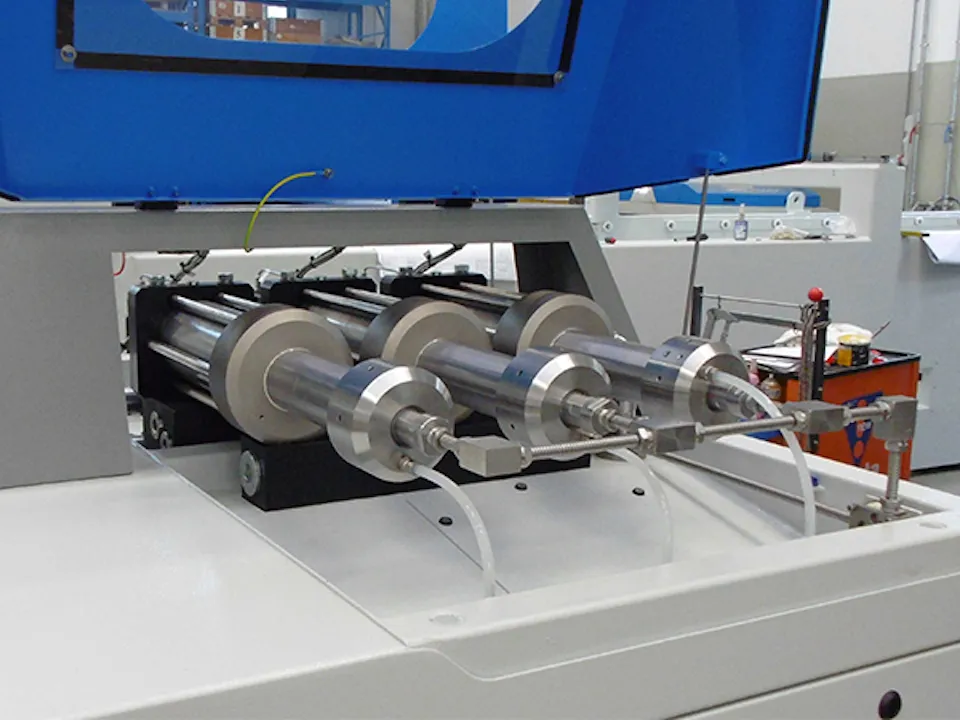

Redundant architecture: less machine downtime
The technology with 3 independent cylinders allows the bypass of a single cylinder that needs maintenance, while the machine is working, avoiding unnecessary downtime.

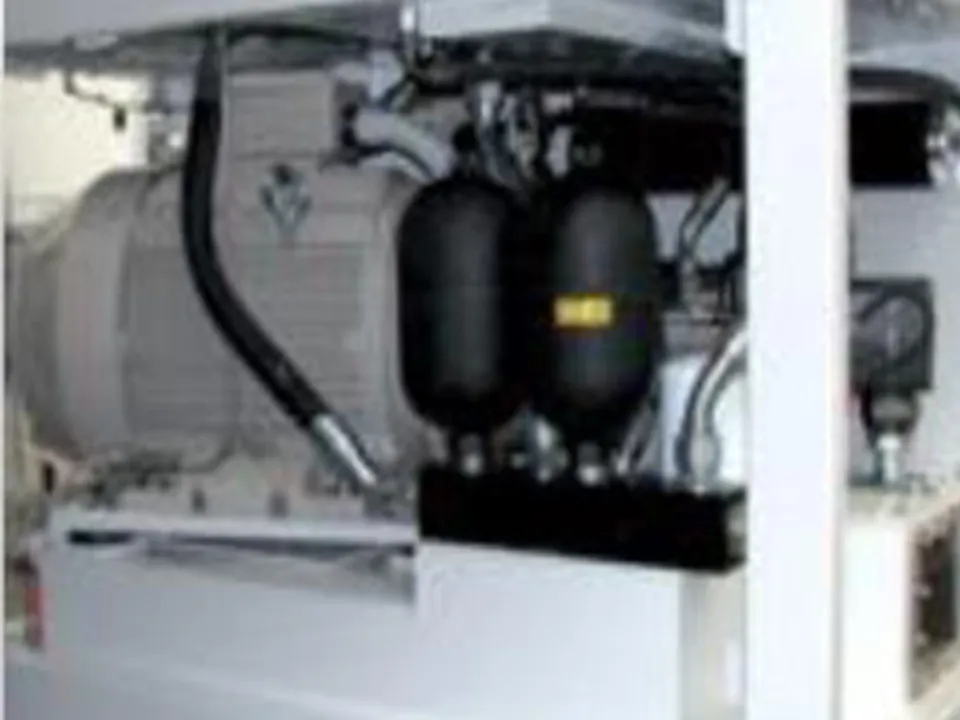

Less maintenance costs
The parallel cylinders architecture is designed for a low cycle frequency that reduce the high pressure components wear and consequently the maintenance costs.

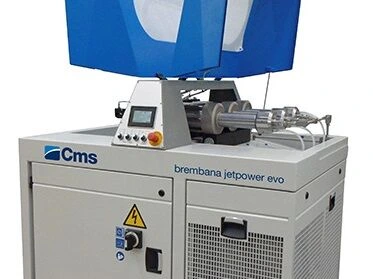

Reduction of oil consumption and operating costs
Water flow rate up to 5 l/min to satisfy a wide range of cutting applications, adapting the oil consumption thanks to an independent variable flow pump for hydraulic circuit.

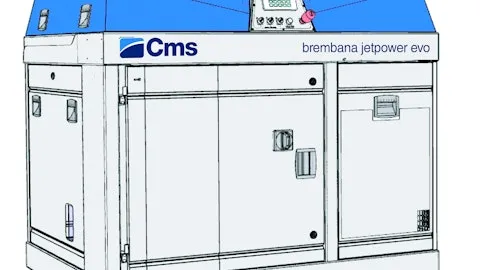

Brembana Jetpower Evo
CMS brought about a new concept in ultrahigh pressure intensifiers, enhaced by technological solutions designed to satisfy the needs of most demanding users. This new technology is based on an intensifier equipped with several pressure multipliers independent, parallel and electronically synchronized. This innovative solution results in an everconstant pressure avoiding any drops typical of traditional opposecylinder intensifiers.
Technical data
| Power | 30 kW / 40 HP / 45 kW / 60 HP |
|---|---|
| Multipliers | 2 / 3 |
| Max water pressure | 4150 bar / 60.000 psi |
| Max water flow rate | 2,7 lpm / 0,71 gpm / 5 lpm / 1,32 gpm |
| Max diam orifices | 0,30 mm / 0,012 in / 0,40 mm / 0,016 in |
| Voltage | 400V +/- 5% 50-60 Hz (Diverse tensioni e frequenze a richiesta)(Different voltages and frequencies on request) |
