5 axes monolithic saw jet machine
Benefits

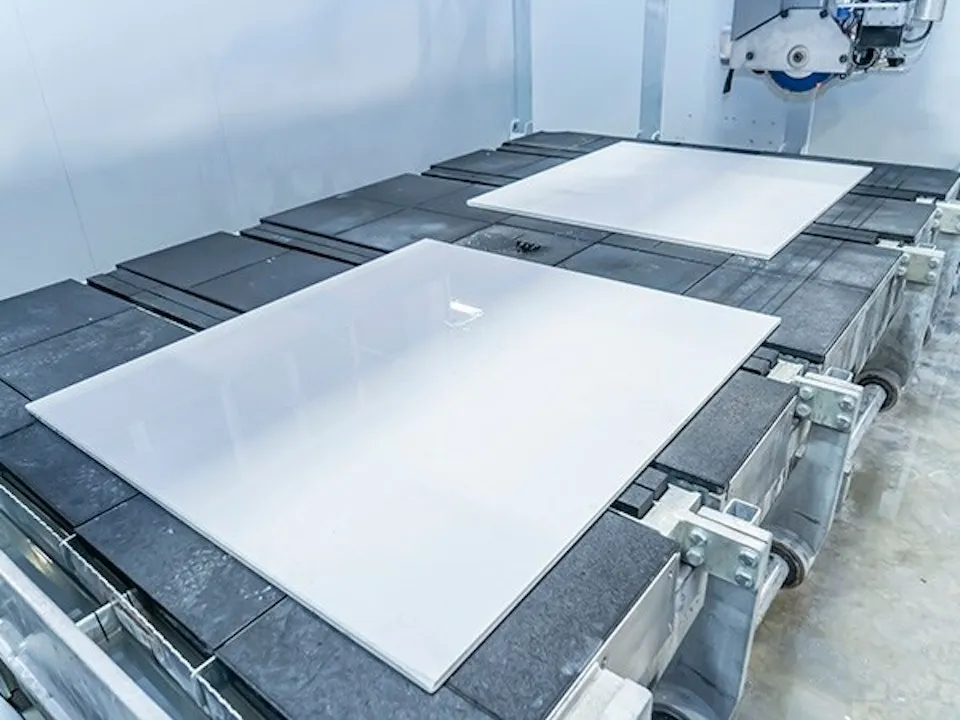

Limitless machining
Workability problems are not an issue thanks to the 4,000 x 2,350 mm workbench that guarantees over 17% more space compared to similar machines.

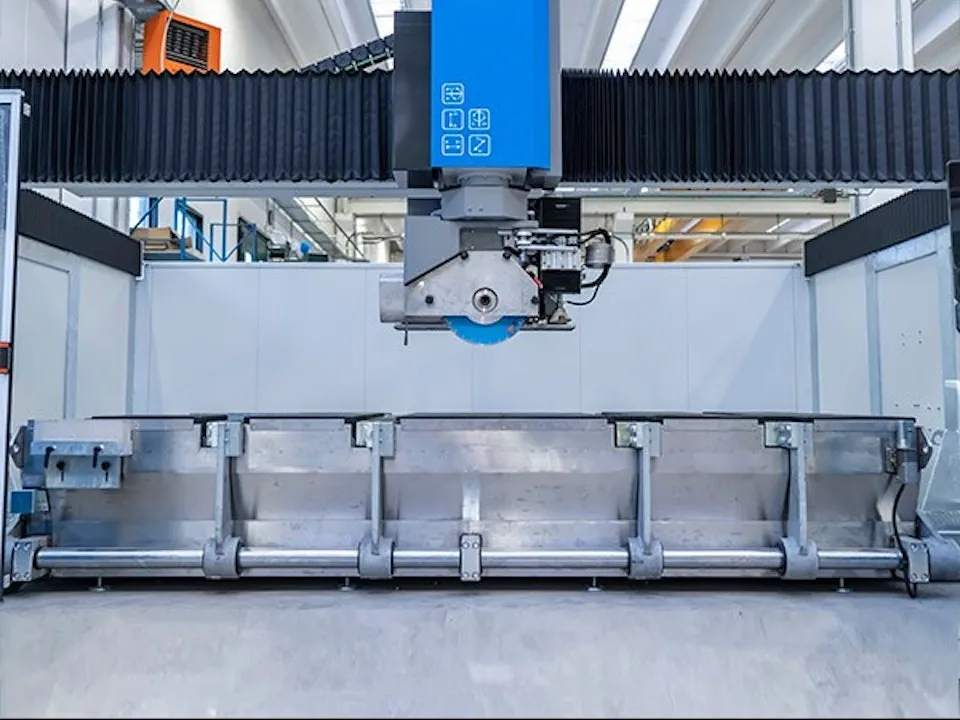

Fully rust proof
The machine structure produced with hot galvanised steel, and the stainless steel work tank guarantee excellent protection against rust.

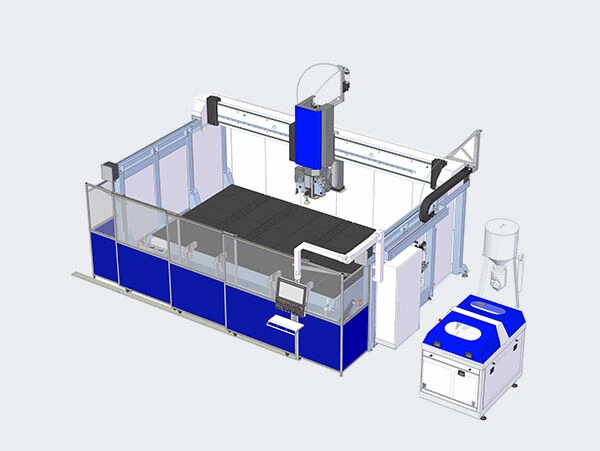

19% less volume
The machine installation size is just 36.5 m² making it the smallest machine of its kind.
Facilitated slab loading
Slab loading operations are extremely easy thanks to the rectified rubber work surface with 4 folding forks, standing at a height of just 380 mm.
Brembana Kosmos Jet
New generation of 5-axes bridge saw entirely managed with Numeric Control. Compact and easy to install, it does not require any kind of base so it can be re-located almost immediately. The machine is fitted with an abrasive waterjet cutting head which, by working in combination with the diamond disk, means natural stone and composite slab cutting can be automated when there are interferent cuts and internal angles. The machine is designed for all laboratories that cut natural stone, composite and ceramic slabs. The machine’s weight, which can be as much as 8 tons, guarantees a perfect rigidity when producing: kitchen top vanity tops wall panels (internal and external) flooring doorsteps, staircases and window sills street furniture
Technical data
| X axis stroke | 3960 mm / 156 in |
|---|---|
| Y axis stroke | 2450 mm / 96 in |
| Z axis stroke | 400 mm / 16 in |
| Head rotation (c axis) | ± 185° (370°) |
| Head inclination (a axis) | 0° - 90° |
| X axis speed | 30 m/min / 98 ft/min |
| Y axis speed | 25 m/min / 82 ft/min |
| Z axis speed | 7.5 m/min / 25 ft/min |
| Minimum disc diameter | 350 mm / 14 in |
| Maximum disc diameter | 425 mm / 17 in |
| Maximum workable thickness with ø425 1 mm disc | 100 mm / 4 in |
| Maximum workable thickness with waterjet | 80 mm / 3 in |
| Workbench dimensions | 4000x2350 mm / 157x92 in |
| Maximum cut slab dimensions | 3960x2280 mm / 156x90 in |
| External abrasive tank capacity | 330 kg / 661 lb |
| Maximum waterjet pressure | 4.150 bar / 60.190 psi |
| Overall dimensions (including waterjet pump) | 8650x4220x3600 mm / 340x166x142 in |
| Overall machine weight | Up to 8.000 kg / 17637 lb |
