3/4 interpolated-axis monobloc machining center for contouring, milling, drilling and profiling in marble, granite, composite stone and ceramic.
Benefits

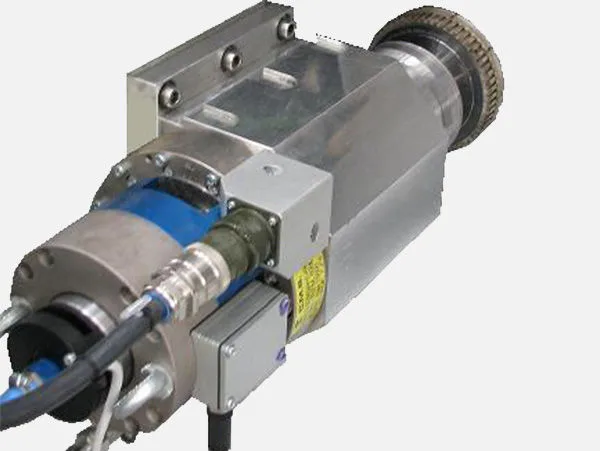

Best-in-class power
CMS-designed and manufactured liquid-cooled electrospindle with power up to 30 KW, providing optimal operating conditions and a saving of up to 21% on cycle times

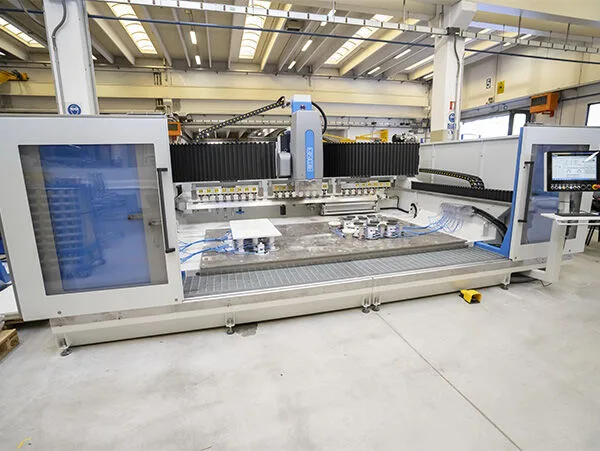

Unrivalled mechanics
The sturdy structure of the machining center ensures optimal absorption of the stresses derived from machining, guaranteeing a high constant precision over time. The machine base fixed directly to the ground, without the need of building work, increases the stability and performance

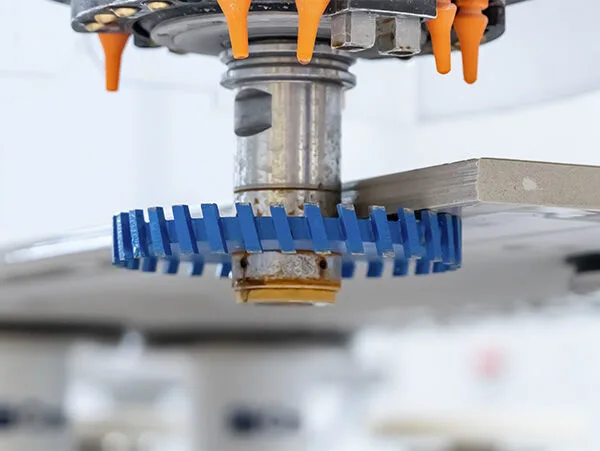

Automatic process improvement
Dynamic feed adjustment and tool wear compensation to ensure best productivity and finish

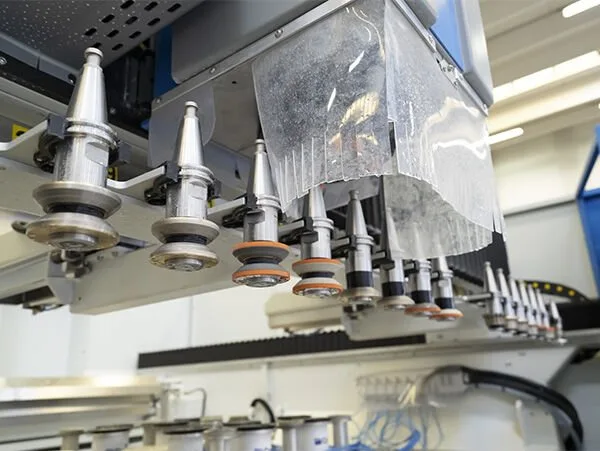

Magazine without limits

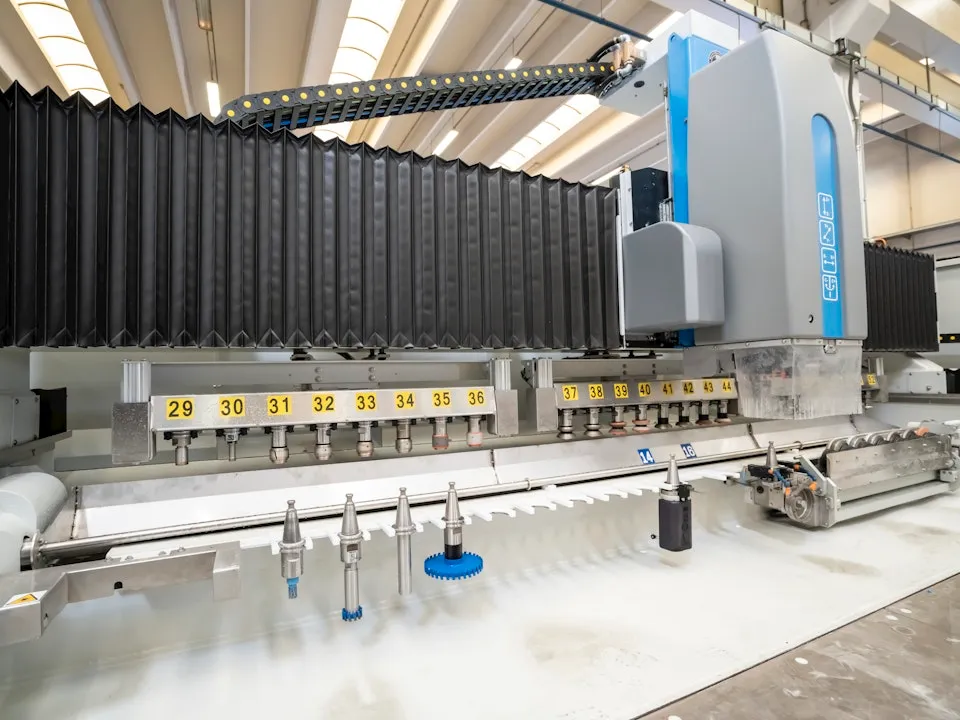

Up to 128 installable tools, in in-line or under-beam magazines, to cover all workshop needs without retooling

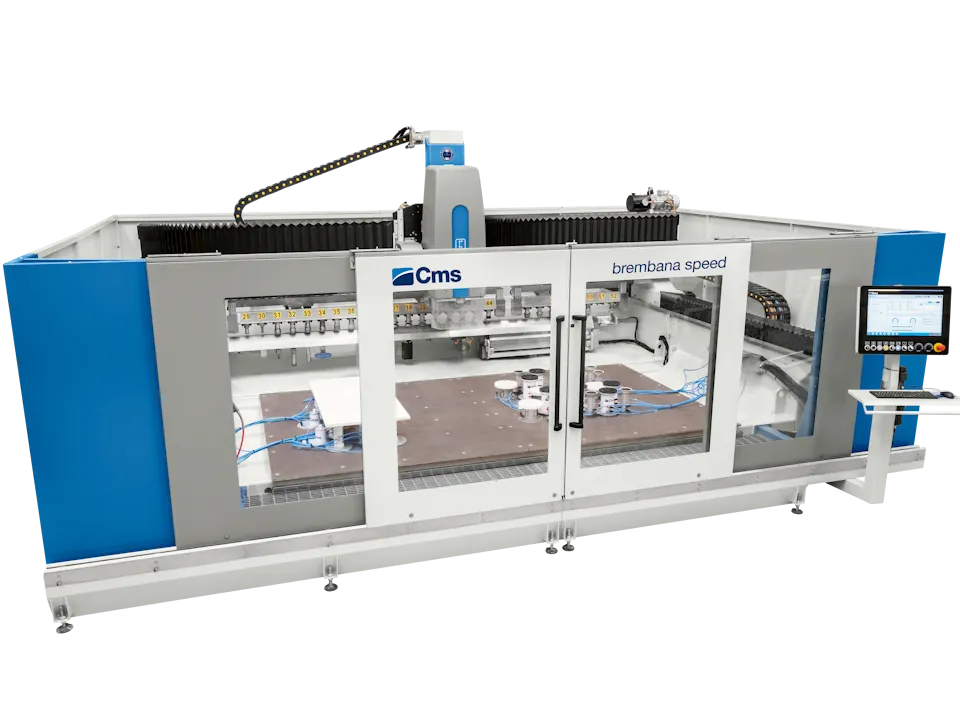

Brembana Speed

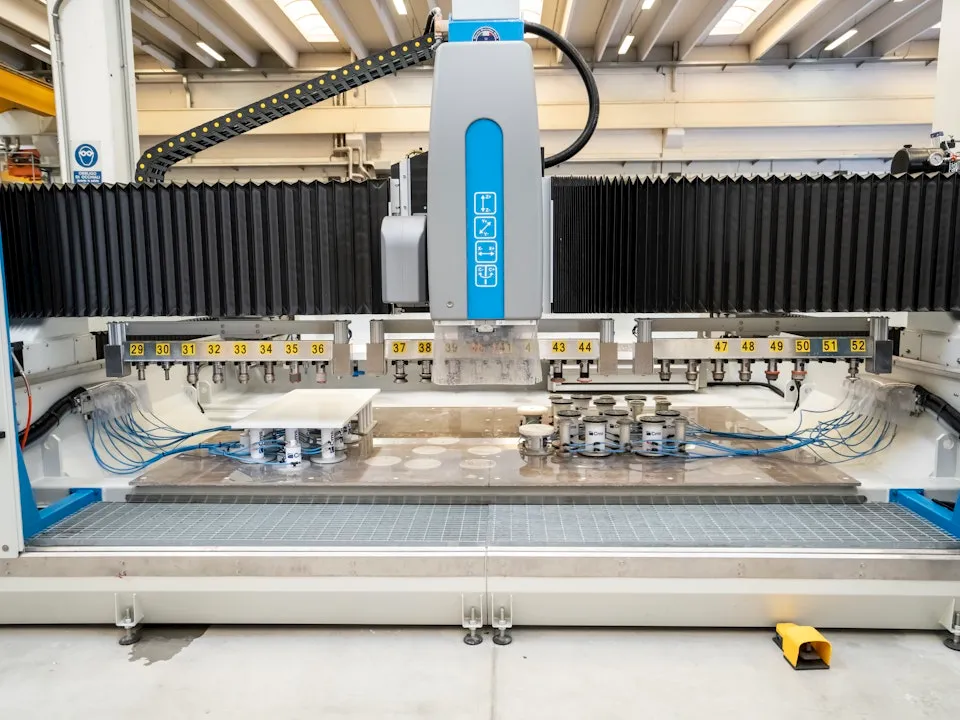

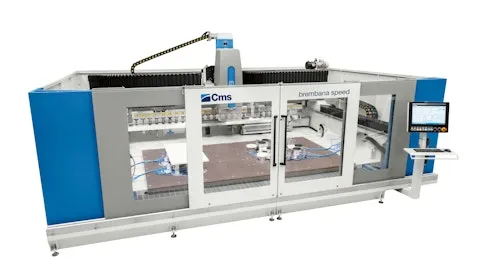

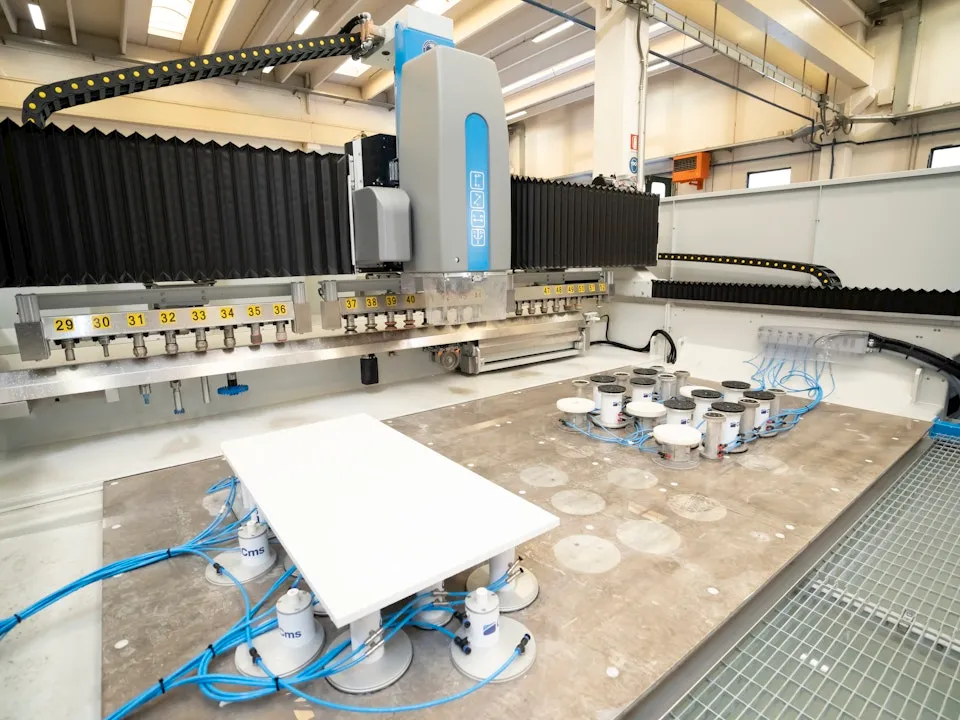

Brembana Speed is a numerically controlled machining center with 3/4 interpolated axes, suitable for processing both slabs and blocks in marble, granite, composite stone and ceramic — even at high thickness. It can perform every type of raw and polished contouring, as well as milling, drilling, countersinking, bas-relief and lettering.
The machine can be customized to customer needs and is available in standard, Open Frame (masonry or steelwork separate supports) and Twin Open Frame (double worktable) configurations — the winning solution for every fabrication shop.
Technical data
| X axes stroke | 2800 ÷ 3800 mm / 110 ÷ 149 in |
|---|---|
| Y axes stroke | 1650 ÷ 7200 mm / 65 ÷ 283 in |
| Z axes stoke | 350 ÷ 900 mm / 14 ÷ 35 in |
| Rotating axis | C = 360° stepless |
| No. stations tool changer | 12 ÷ 120 |
| Power | 13,5 KW / 18 Hp / 30 kW / 40 Hp |
| Revolution | 0÷15000 rpm / 0 ÷ 12000 rpm |
| Connection | ISO 40 |
| Torque | 22 Nm at 6000 rpm / 39 Nm at 6000 rpm |
| Electrical Cabinet | integrated in the base |
| Weight | 4300 ÷ 15000 kg |
