Brembana Sprint bridge saws.
Benefits
Unrivalled mechanics
Open frame version, to install on concrete or carpentry shoulders to guarantee stability and rigidity to make the most difficult processing and to ensure long lasting.

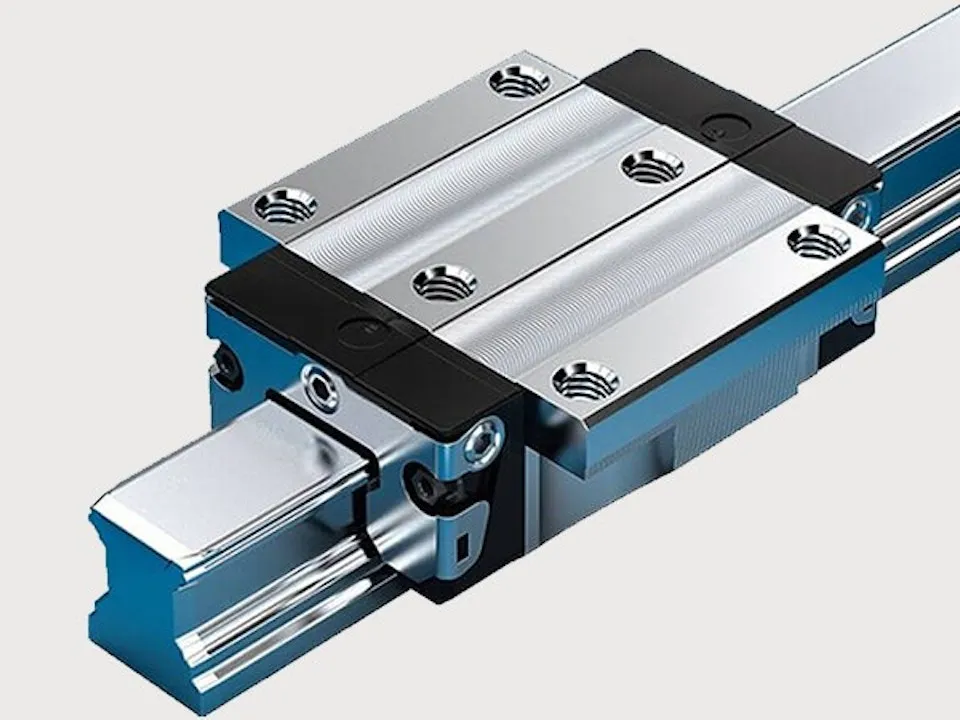

Motion accuracy
As a guarantee of quality all movements are powered by brushless motors coupled with a precision reduction gear and transmitted through a rectified and tempered guides and ball bearings.

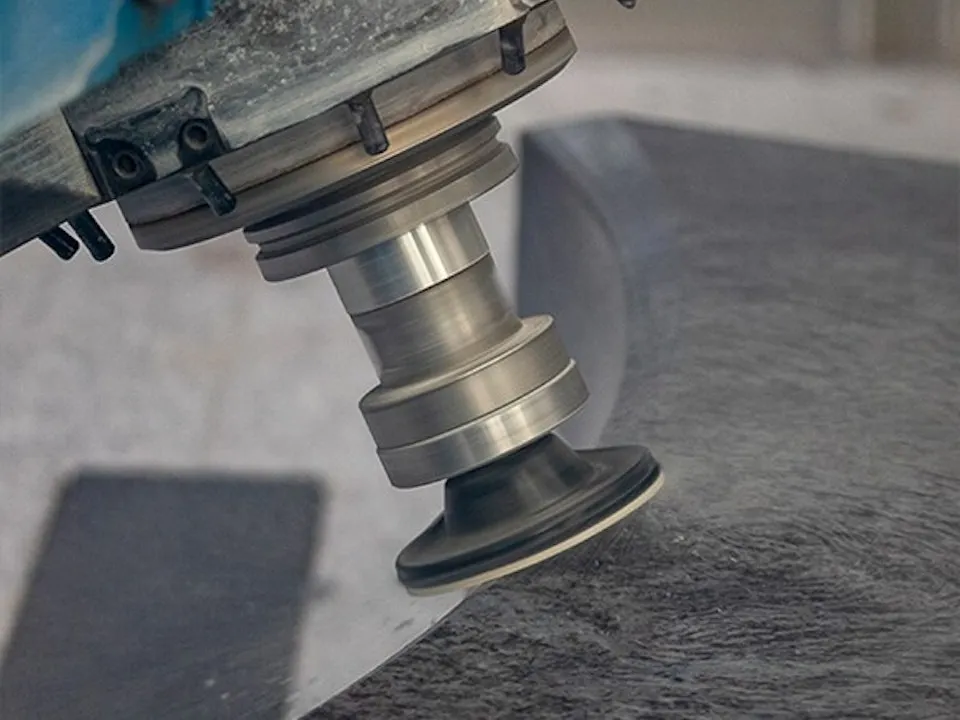

Limitless technology
The machine can be equipped with a powerful ISO 50 electrospindle which, together with the 5 interpolated axes, transform the machine into a modern and complete 5-axis machining center.

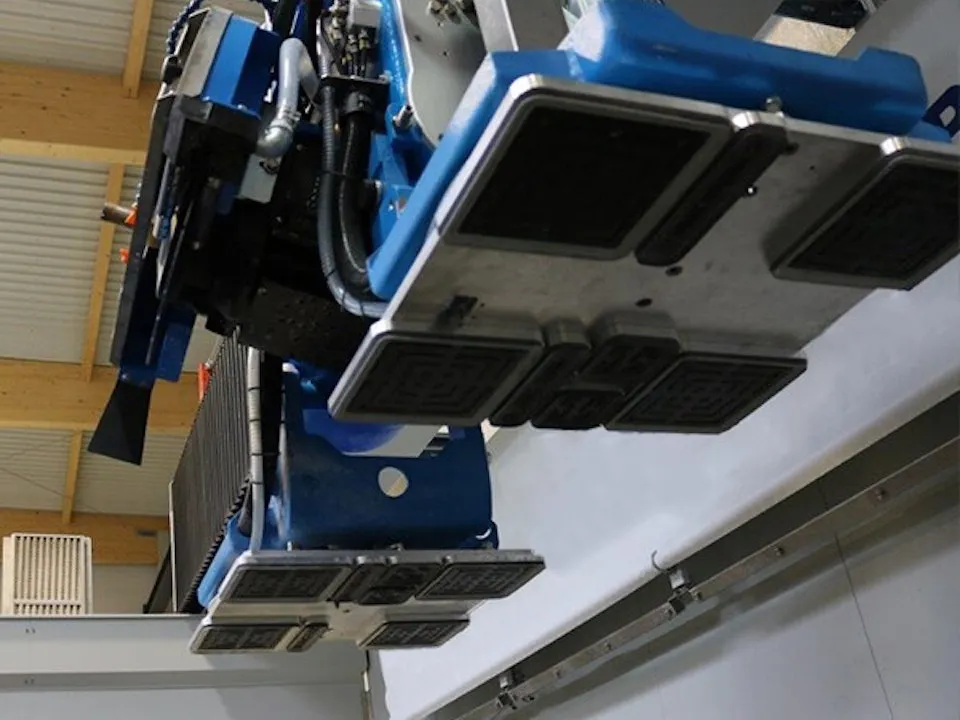

+33% productivity without manual movements

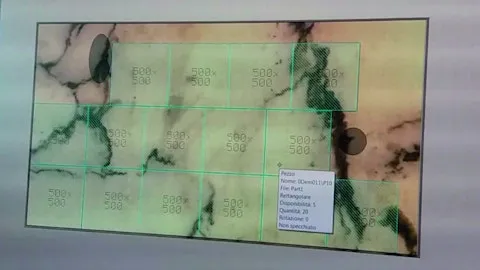

Thanks to the vacuum manipulator, it is possible to automatically move the cut pieces to optimize the cutting of the slab and reduce processing waste.

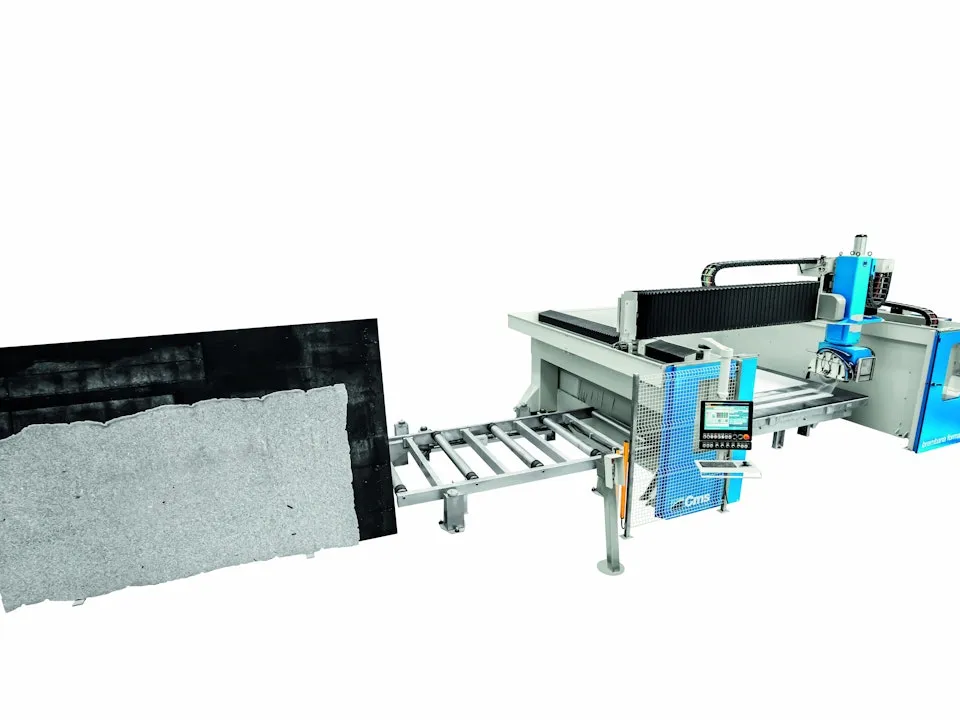

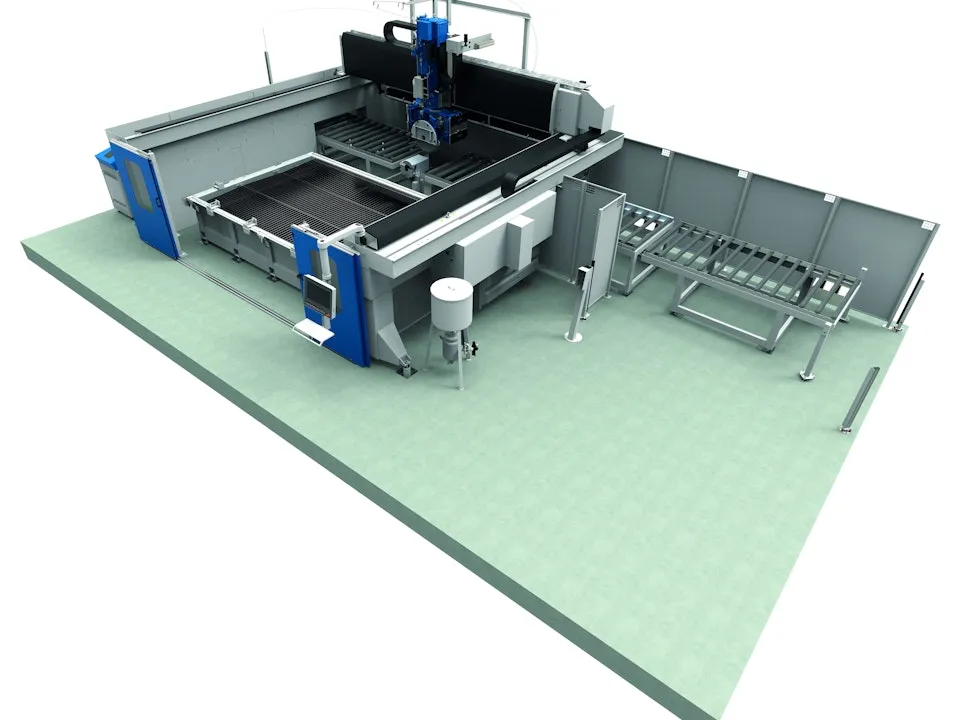

Brembana Sprint

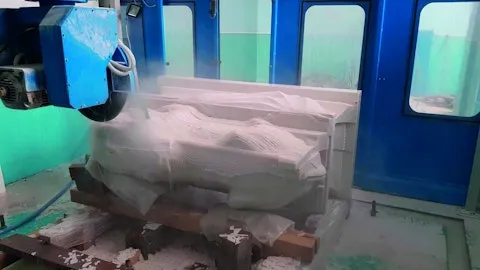

Numerically Controlled 5 interpolated-axis bridge saw equipped with tilting head and fixed table to carry out any type of machining, cutting (straight or shaped, vertical or inclined), 3D profiling and milling operations, on slabs and stone blocks. This machine can work one shot or step by step to shape marble, granite, composite stone and ceramic pieces. The 4.250 mm stroke of the bridge guarantees easy machining of large sized slabs or stone blocks.
Technical data
| X axis stroke | 4250 mm / 167 in |
|---|---|
| Y axis stroke | 2550 ÷ 7200 mm / 100 ÷ 283 in * |
| Z axis stroke | 600 ÷ 900 mm / 24 ÷ 35 in |
| Disk diameter | 350 ÷ 825 mm / 14 ÷ 32 in |
| Motor | 18,5 kW / 25 HP |
| Motor revolution | 0÷5000 rpm (optional 0÷6000 rpm) |
| Electrospindle (optional) | 13 kW / 18 HP - 0÷8000 rpm - ISO 50 |
| Maximum working thickness (with 90° disk Ø 625 mm) | 200 mm / 8 in |
| Maximum working thickness (with 45° disk Ø 625 mm) | 130 mm / 5 in |
| Head revolution (4th axis) | ± 270° (540°) |
| Head inclination (5th axis) | +8° -90° |
| Workbench dimensions | 4200x2500 mm / 165x98 in* |
| Minimum space required for installation | 7700x4680x3780 mm / 303x184x149 in |
