Comandulli · Belt Edge Polishing
The evolution of a species
Benefits

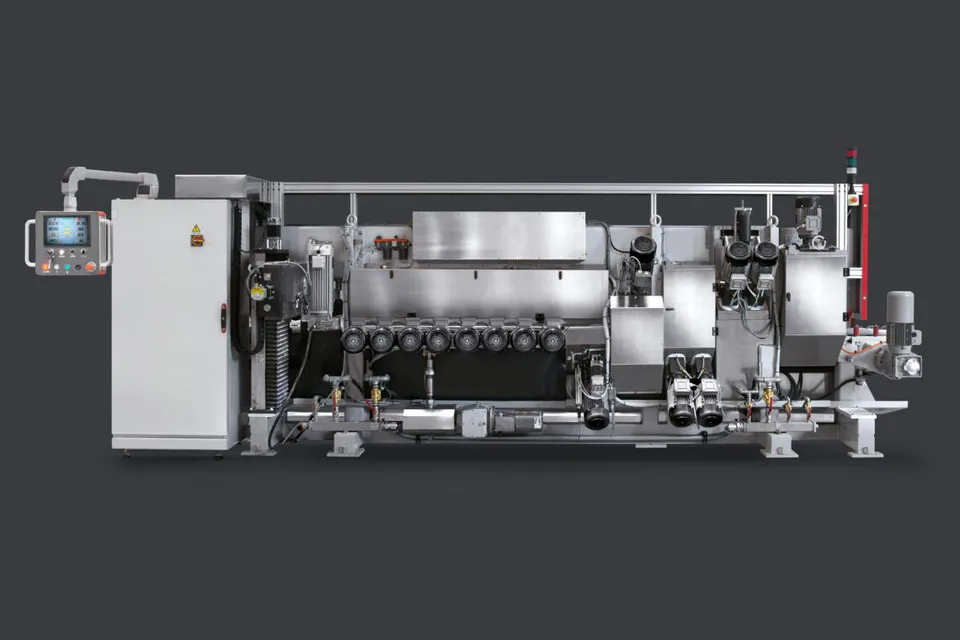

Backside of the machine

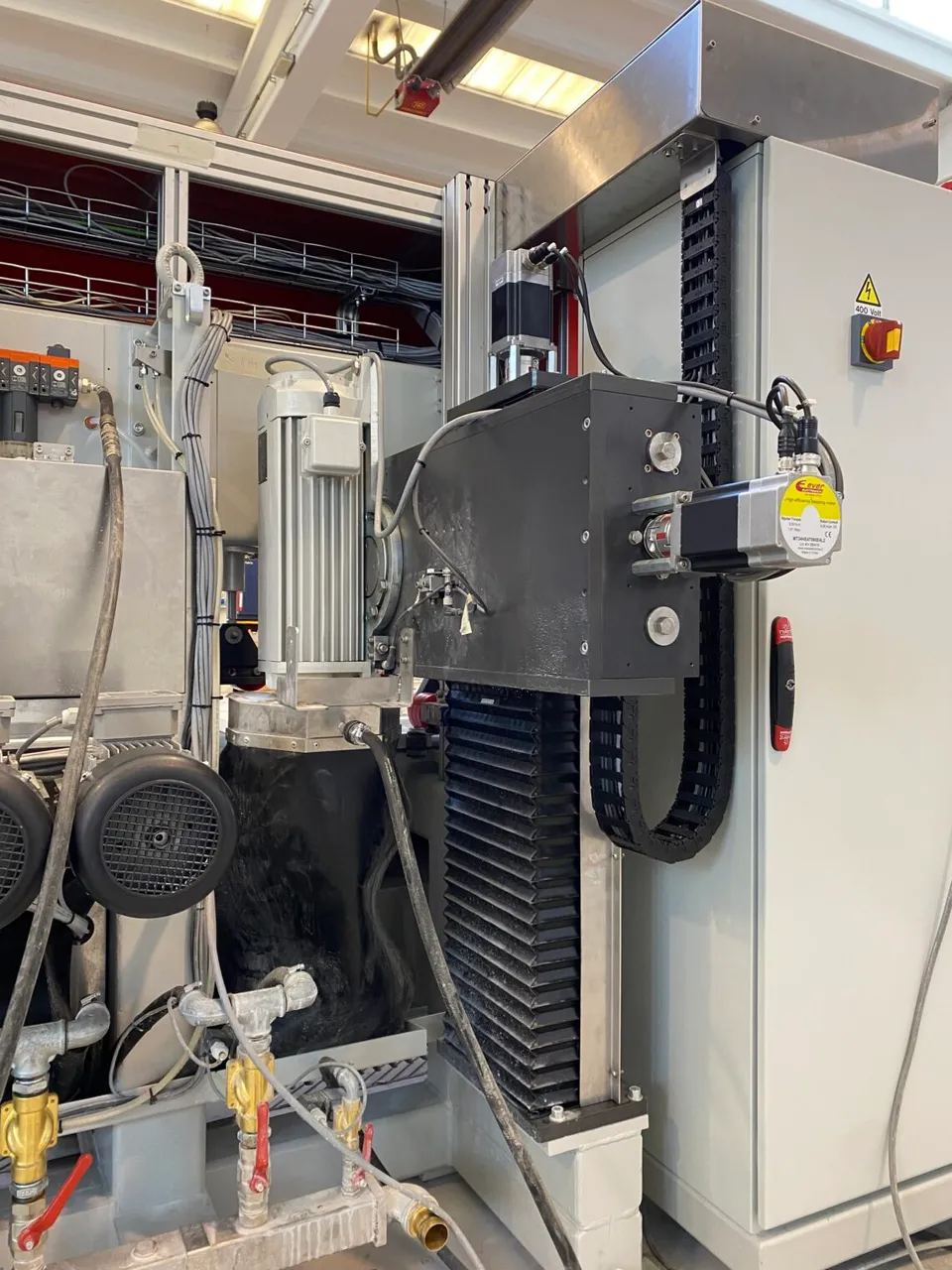

Multipurpose unit

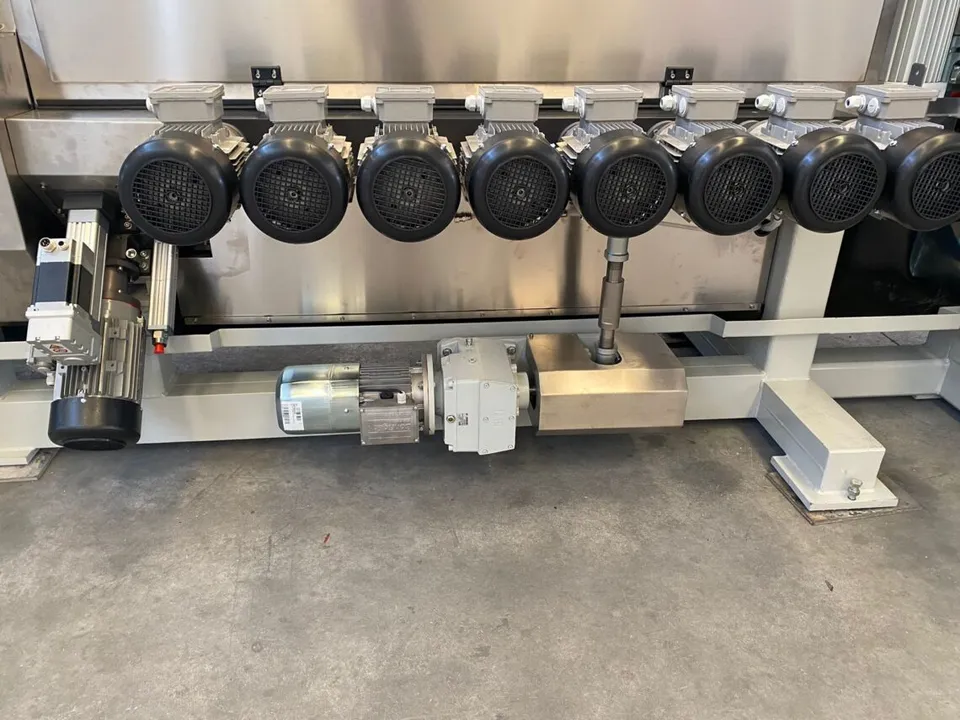

Polishing spindles

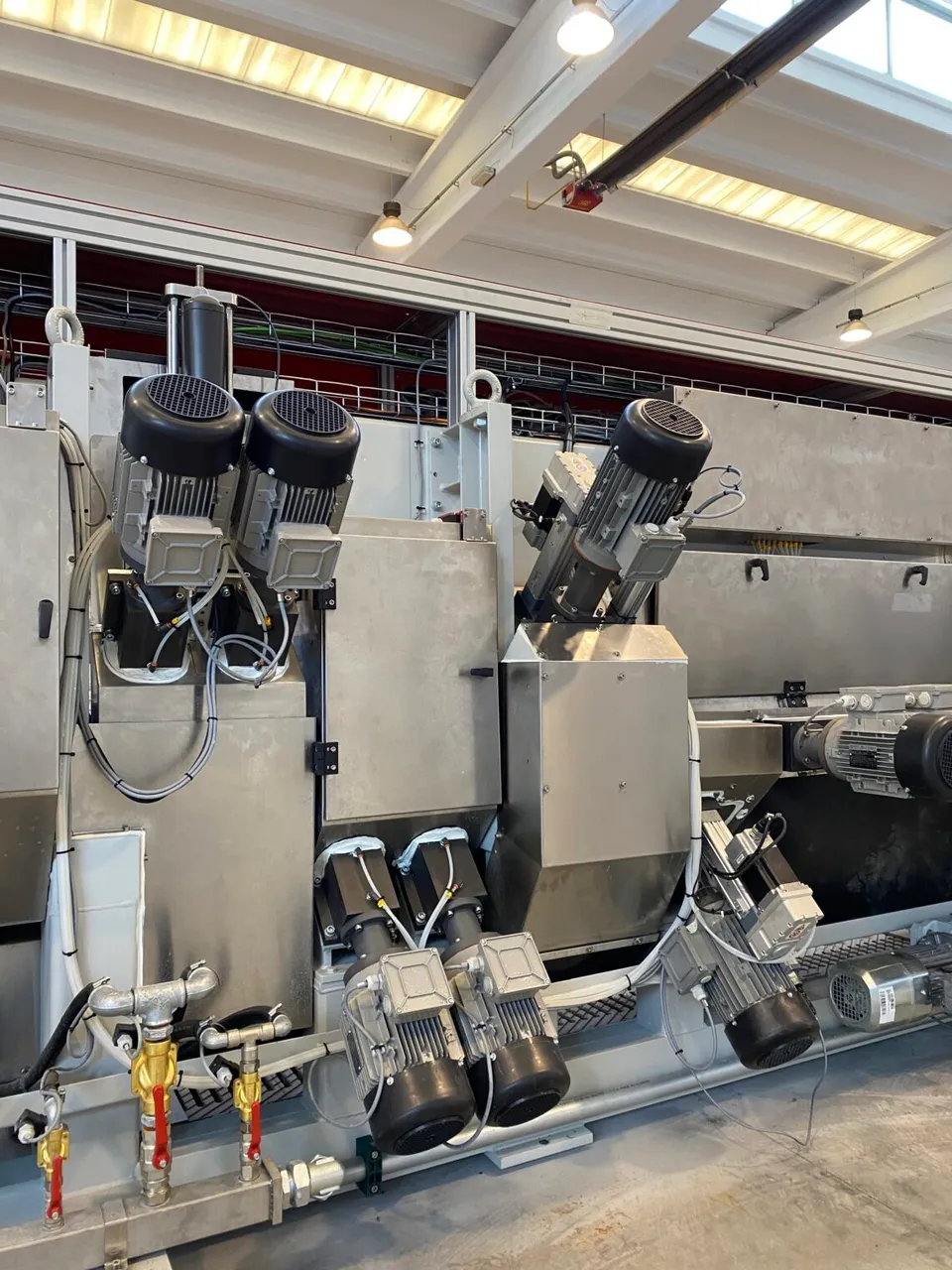

Bevelling units

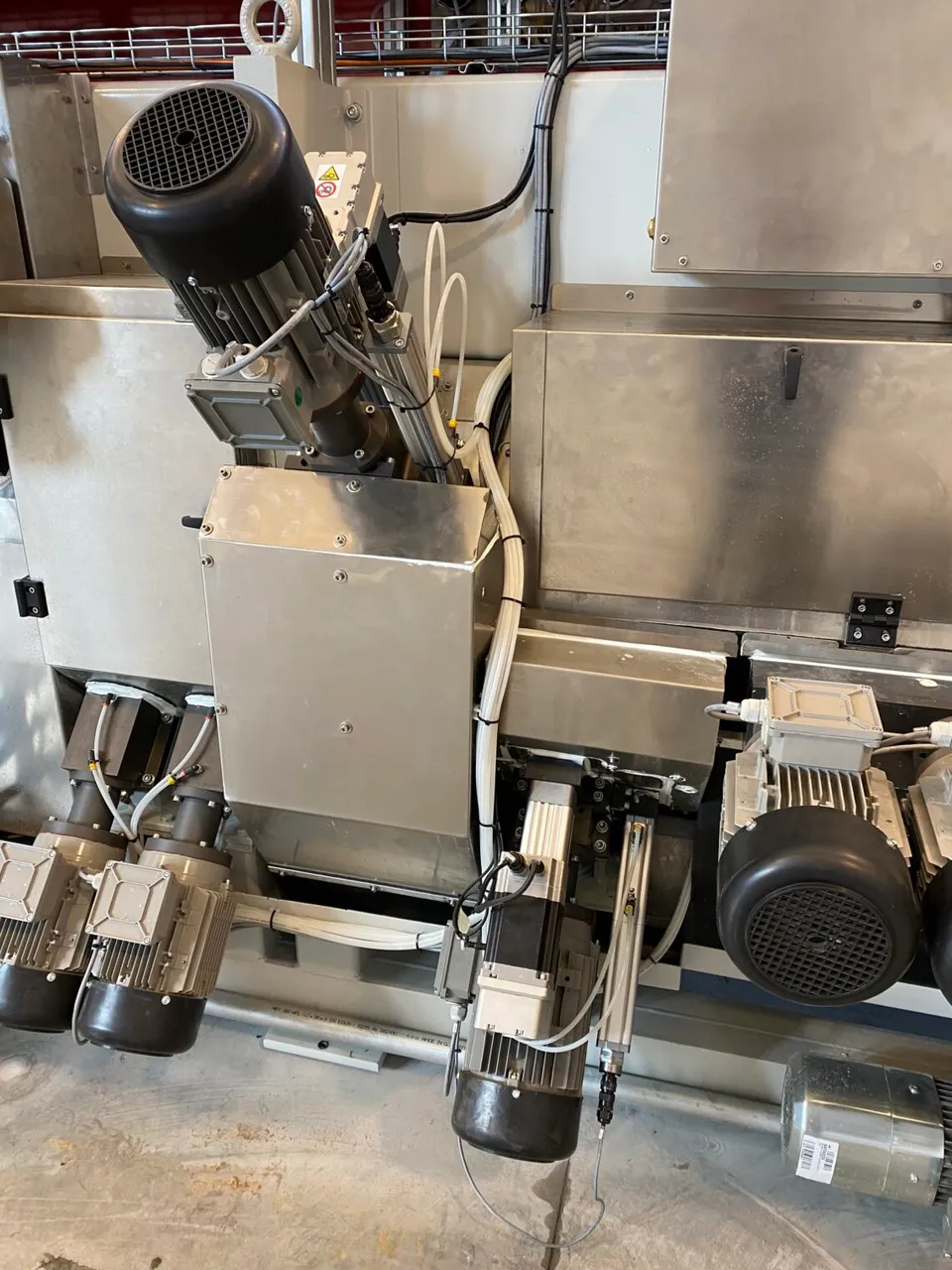

Device for calibrated bevel

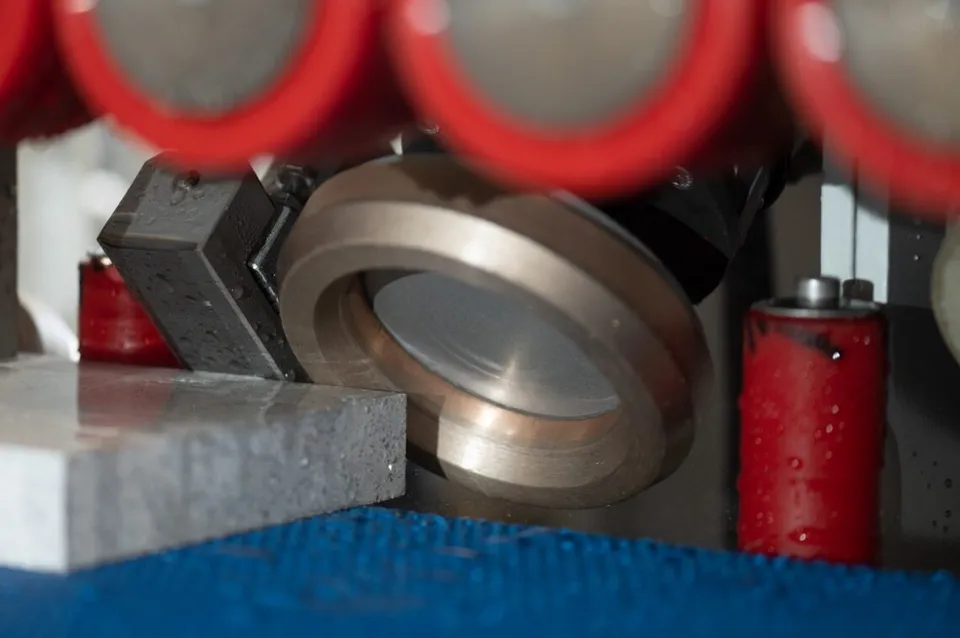

Calibrated bevel

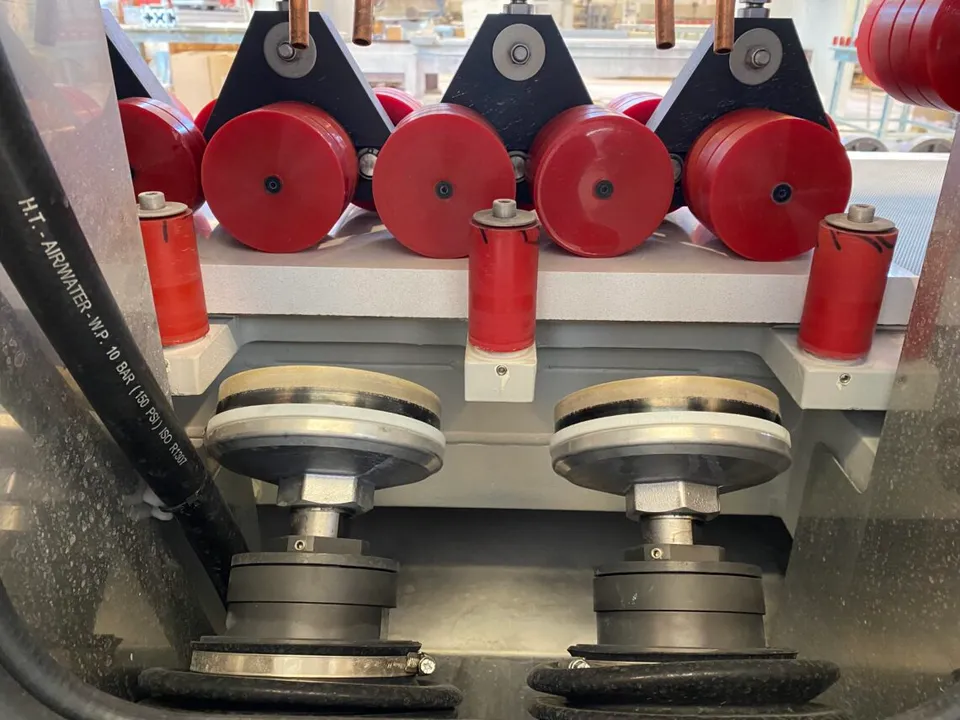

Lower bevelling unit

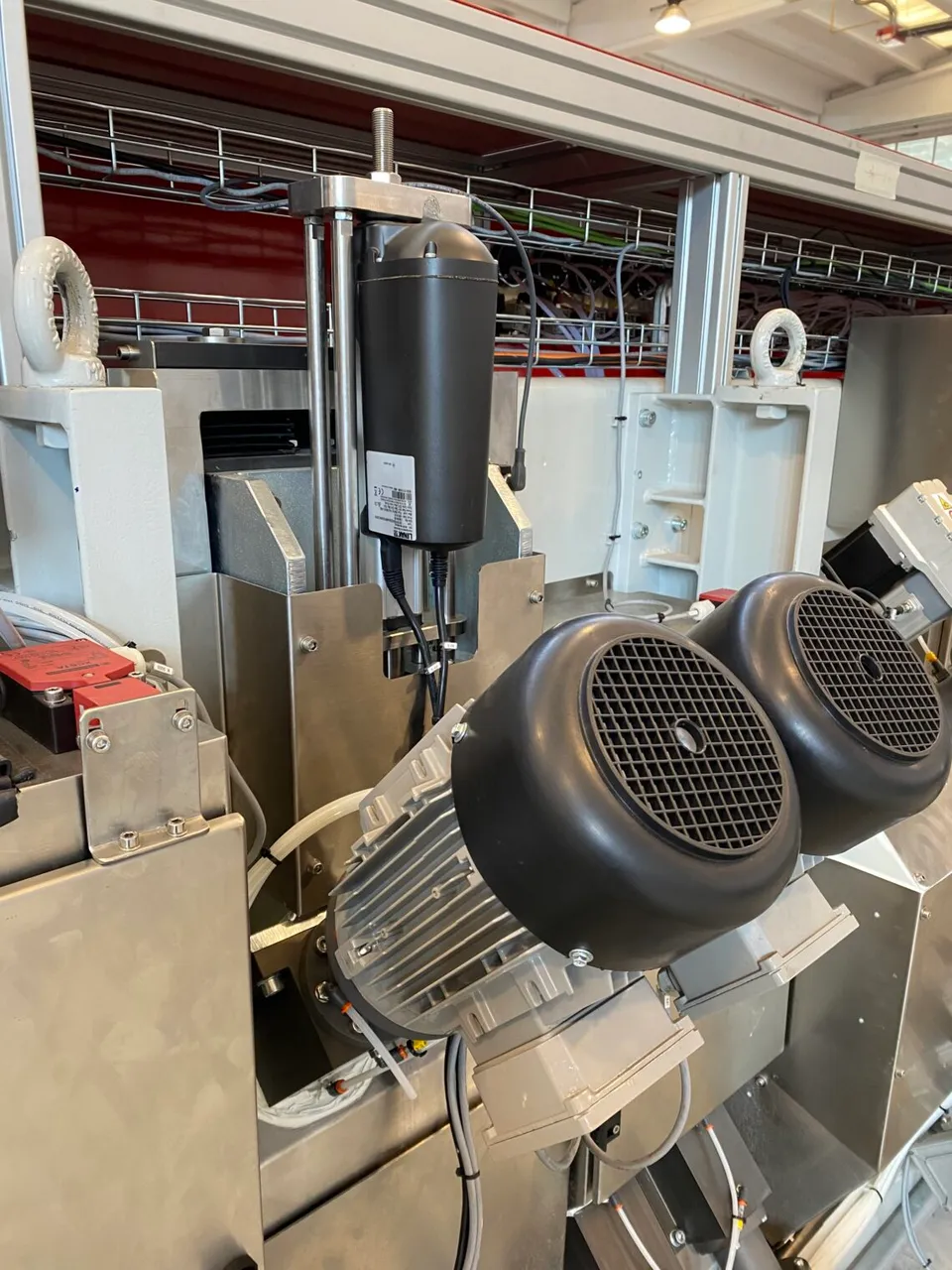

Automatic positioning of the upper bevelling units

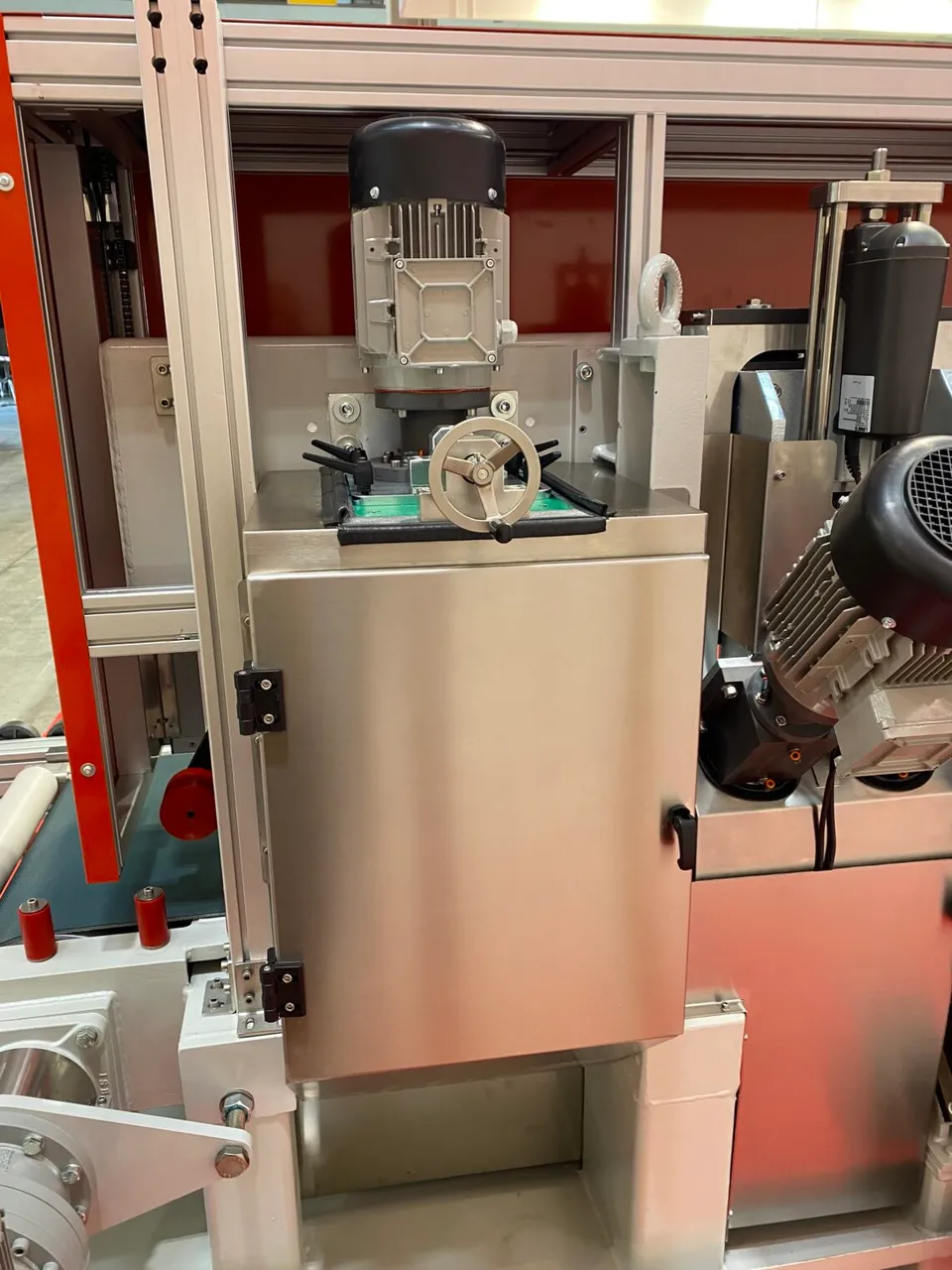

Vertical spindle

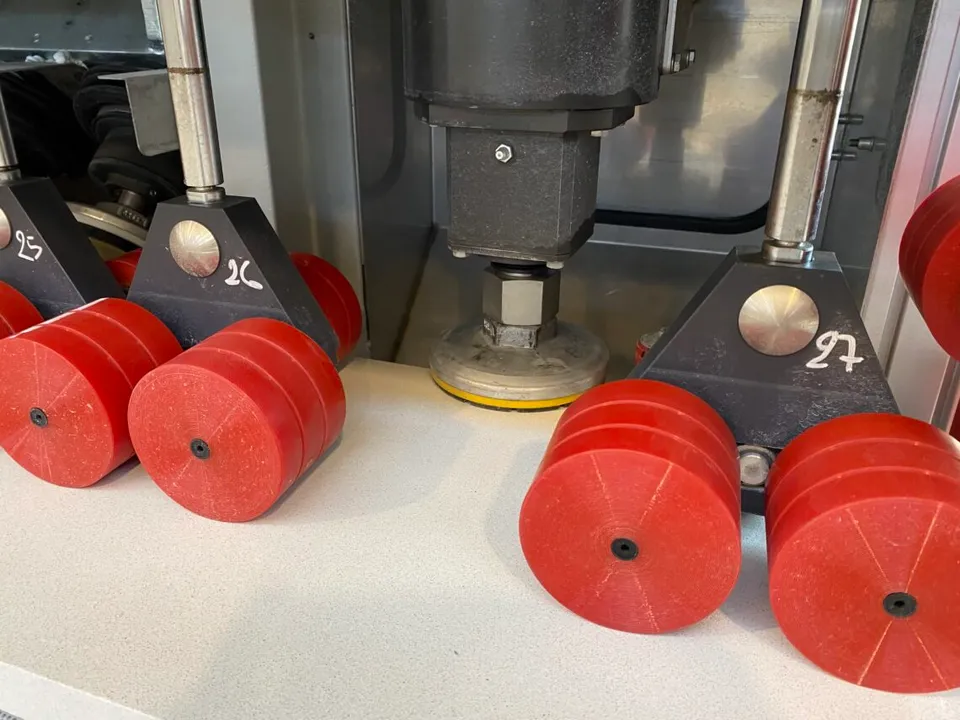

Vertical spindle working

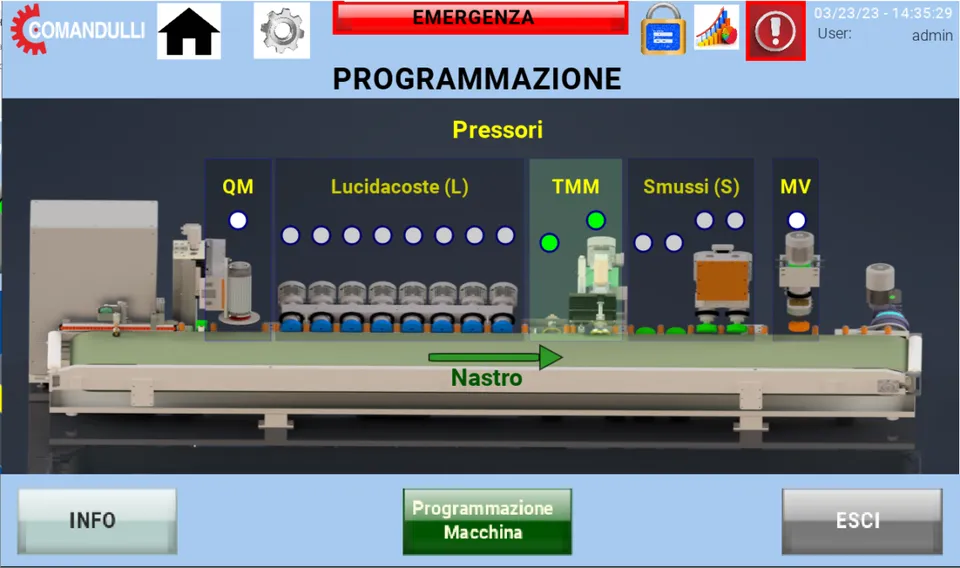

Programming of the spindles

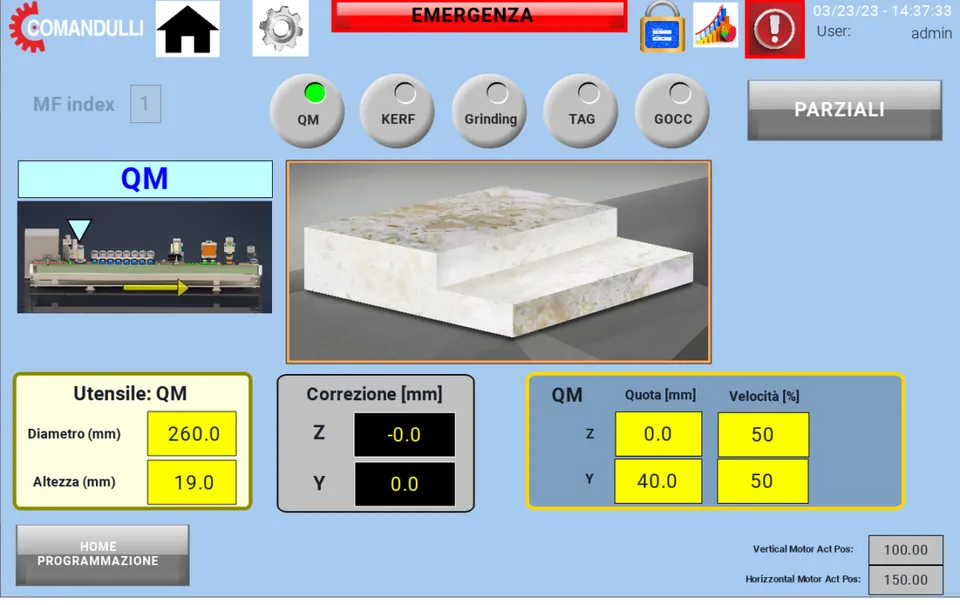

Programming of the thickness calibration

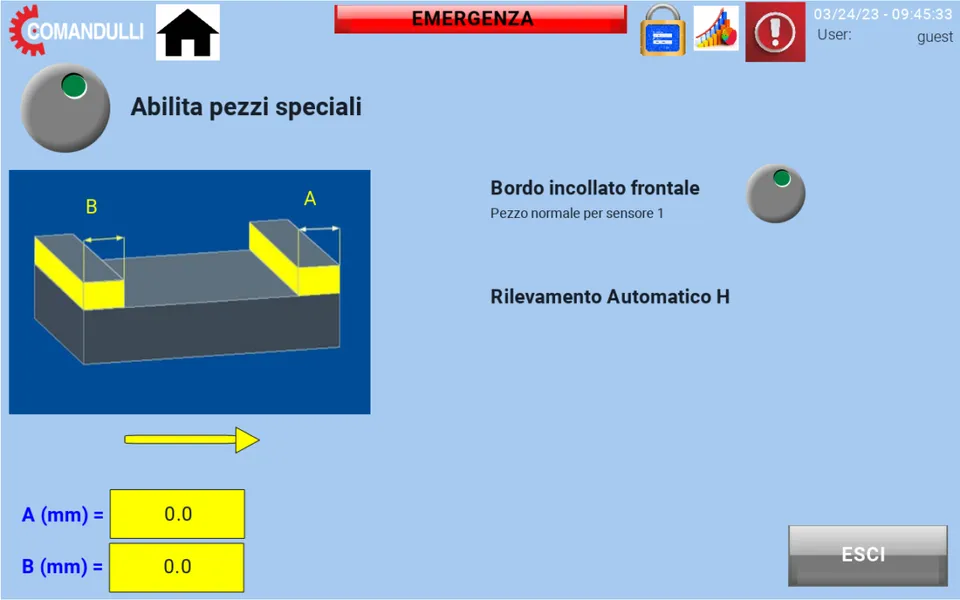

Programming of glued work pieces

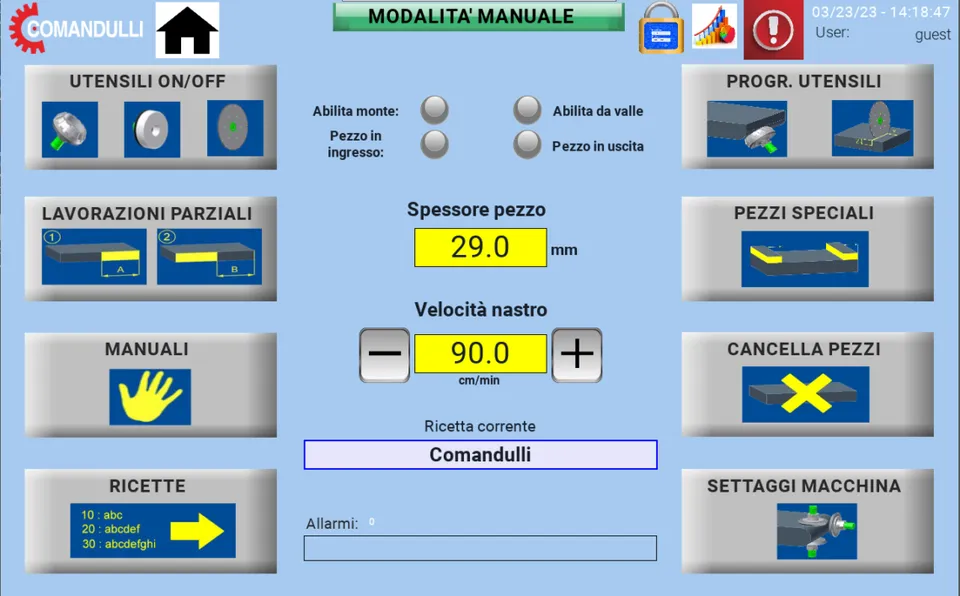

Main page
Emerald
Emerald is an innovative, next-generation machine, the big brother of the widely acclaimed Ruby .
Technical data
| Frontal spindles | 8 n° |
|---|---|
| Bevelling spindles with TMM4 for calibrated bevels | 2 n° |
| Bevelling spindles | 4 n° |
| Diameter calibrating wheel | 260 mm |
| Diameter polishing tools | 130-150 mm |
| Diameter cutting blade | 165 mm |
| Belt speed | 0 - 3 m/1' |
| Belt width | 600 mm |
| Processable slab thickness | 5 - 80/100 mm |
| Minimum width | 60 mm |
| Belt height | 780 mm |
| Total power installed | 28 kW |
| Dimensions (excluded roller tables) | 6,2 x 1,8 x 1,7 m |
| Weight | 4950 kg |
Features
Request a quote — Emerald
Tell us what you machine and we will help you spec the right equipment, software and service plan.
