Omega 60
Comandulli · Belt Edge Polishing

Alla base di una costa perfetta

Benefits

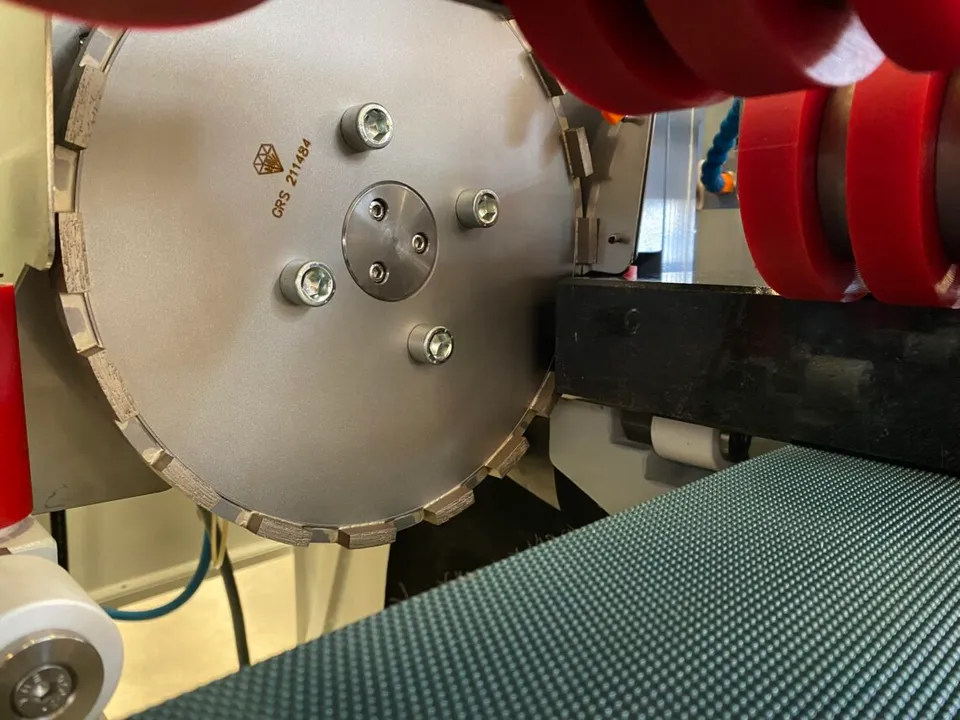

Feature 1

Feature 1

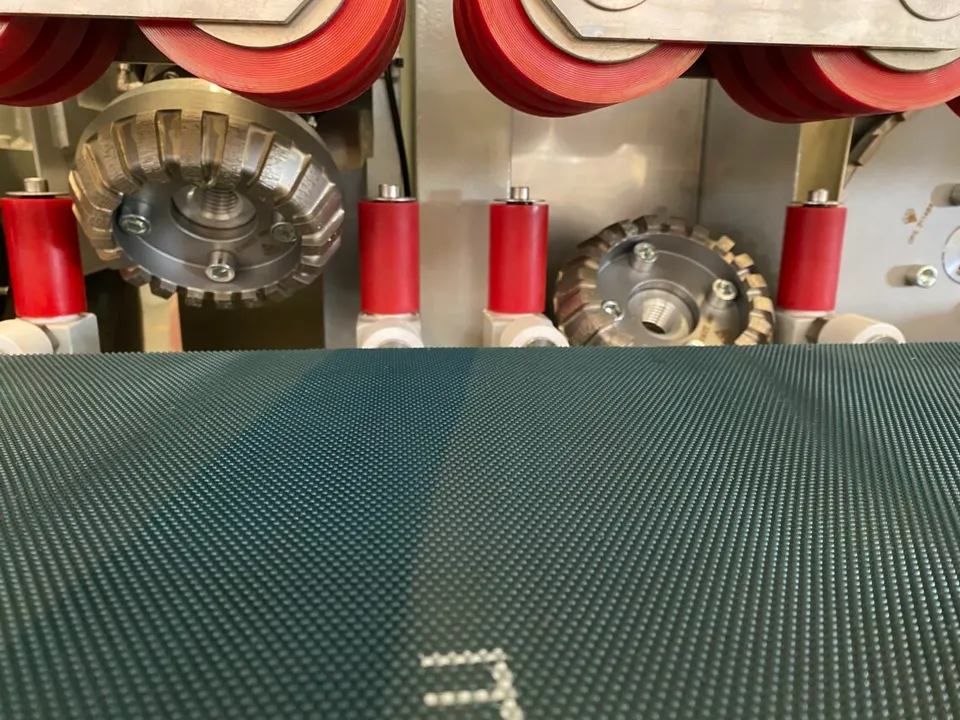

Feature 2

Feature 2

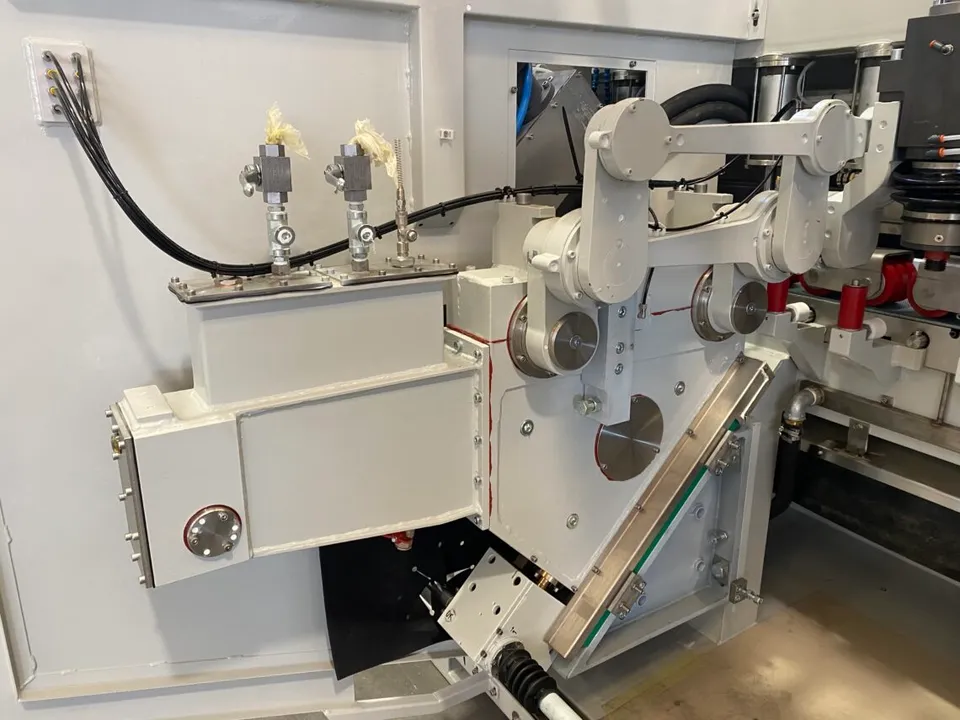

Feature 3

Feature 3

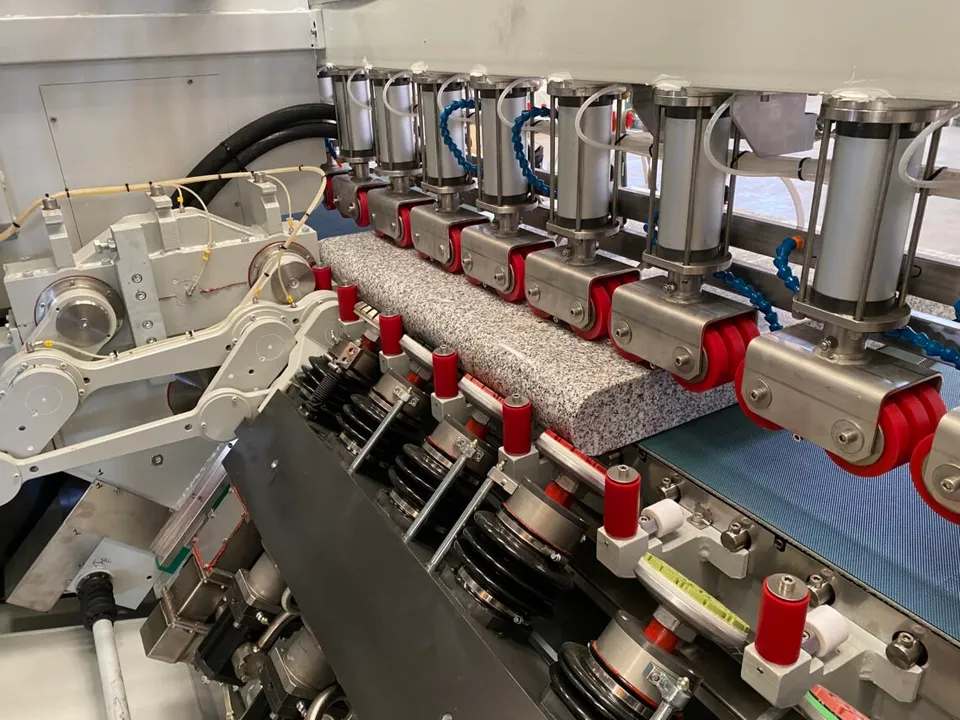

Feature 4

Feature 4

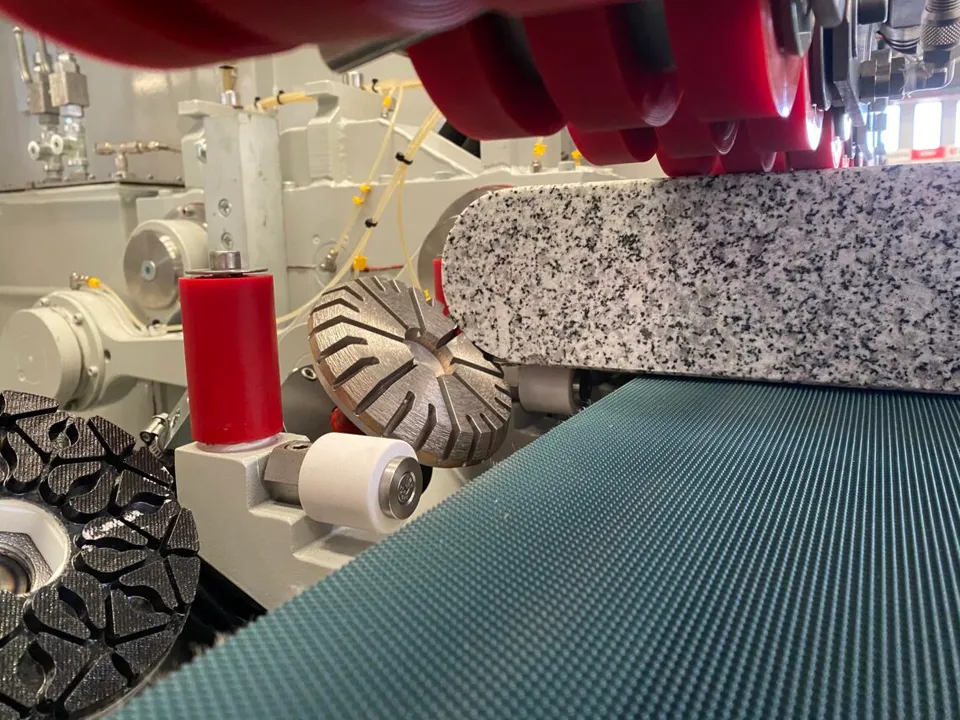

Feature 5

Feature 5

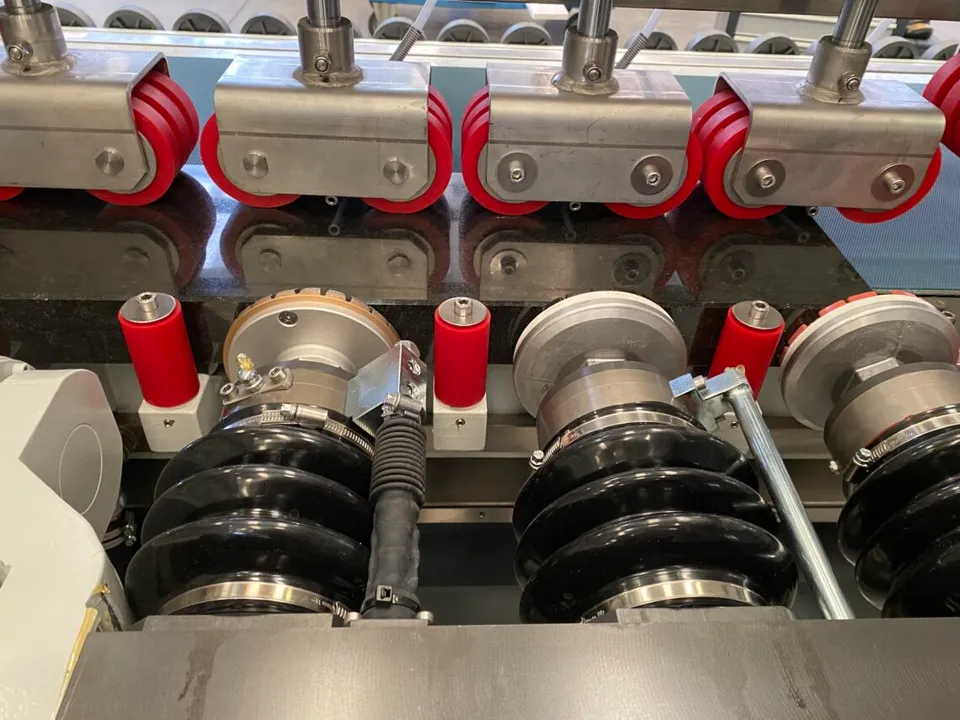

Feature 6

Feature 6

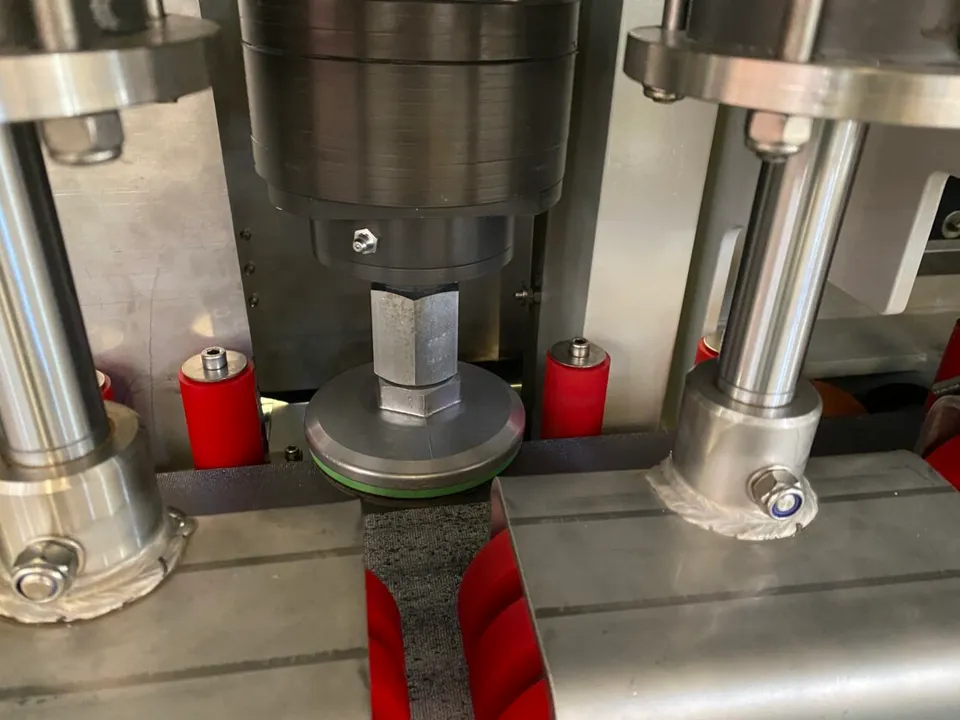

Feature 7

Feature 7

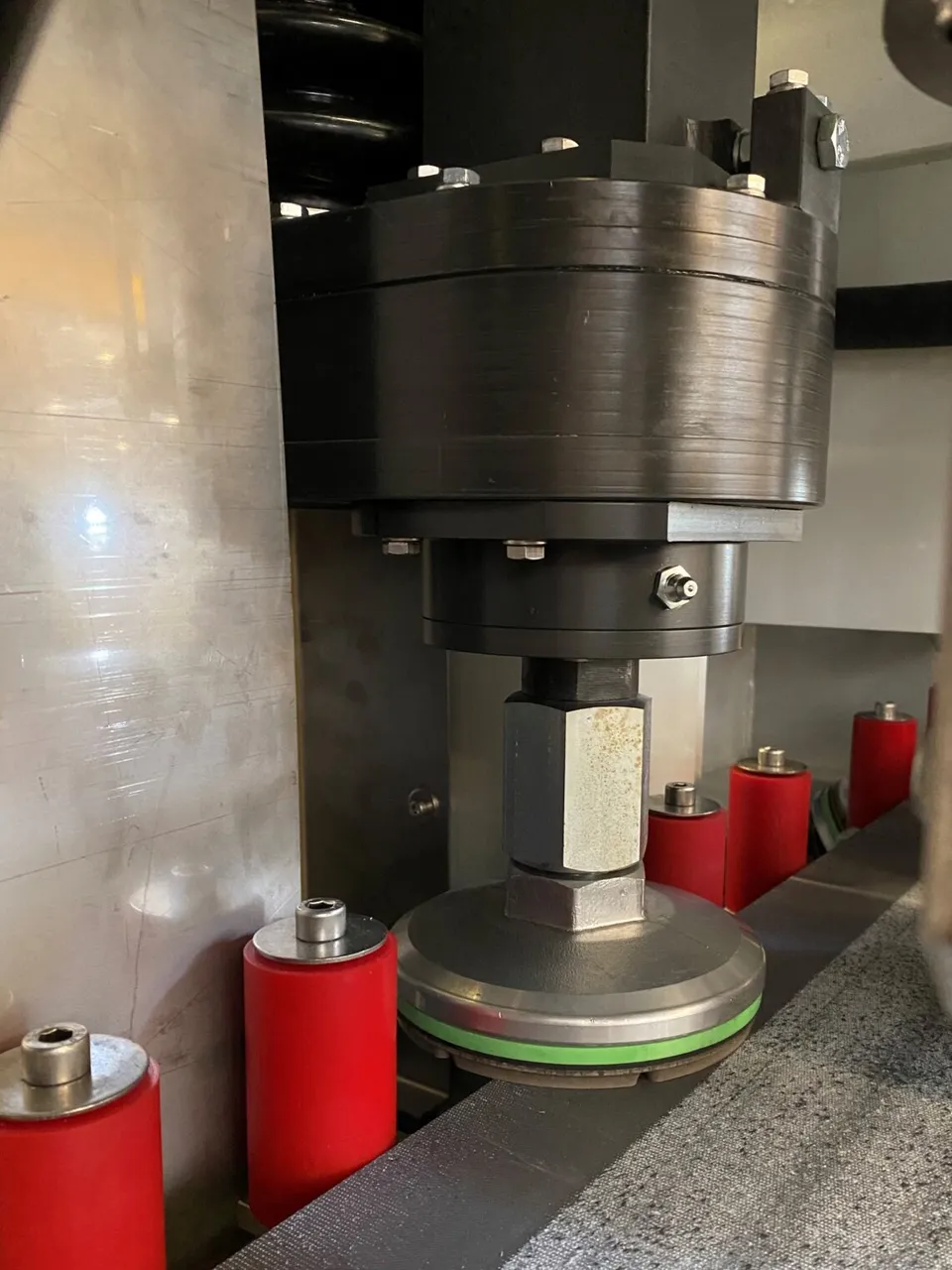

Feature 8

Feature 8

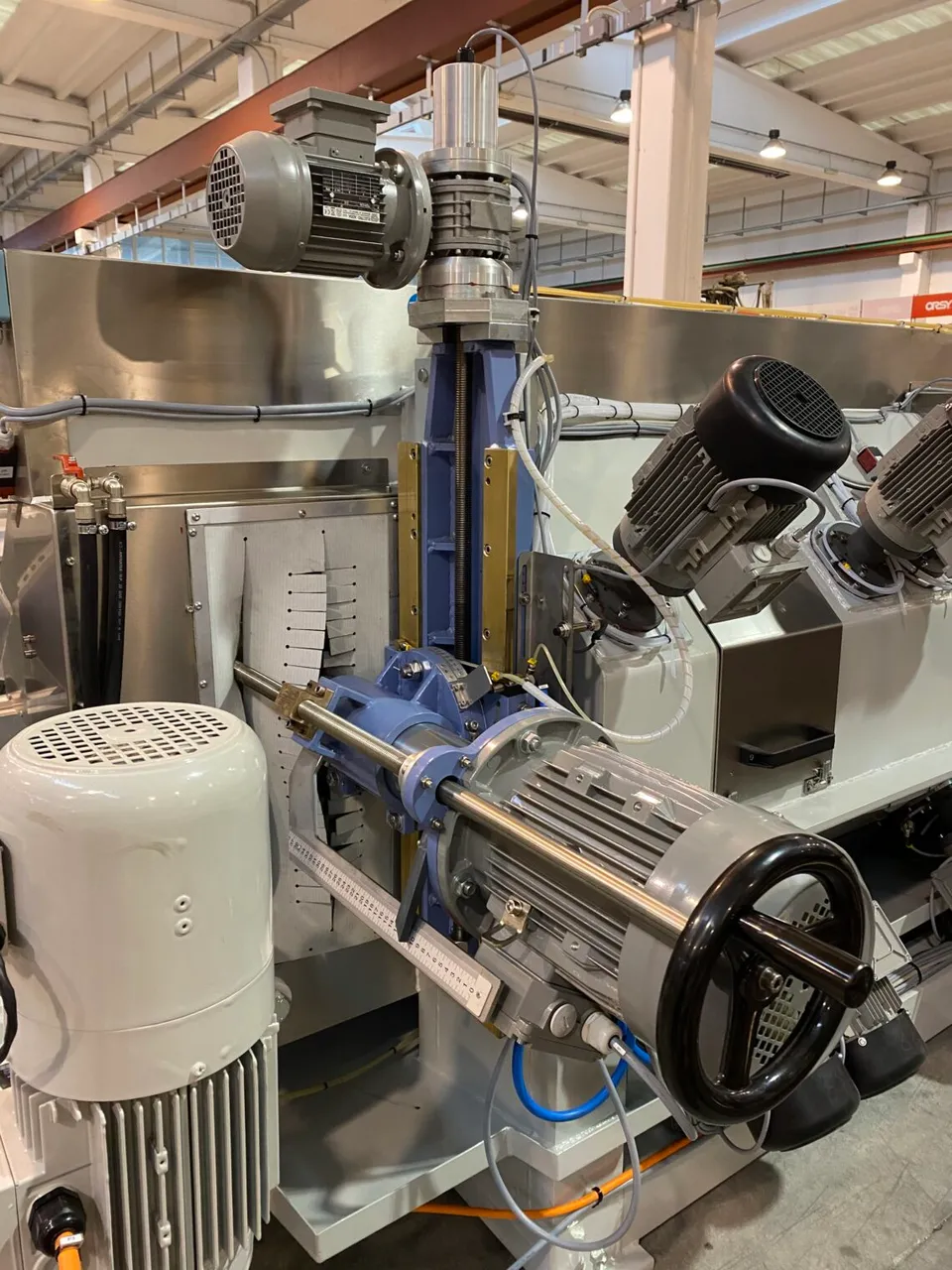

Feature 9

Feature 9

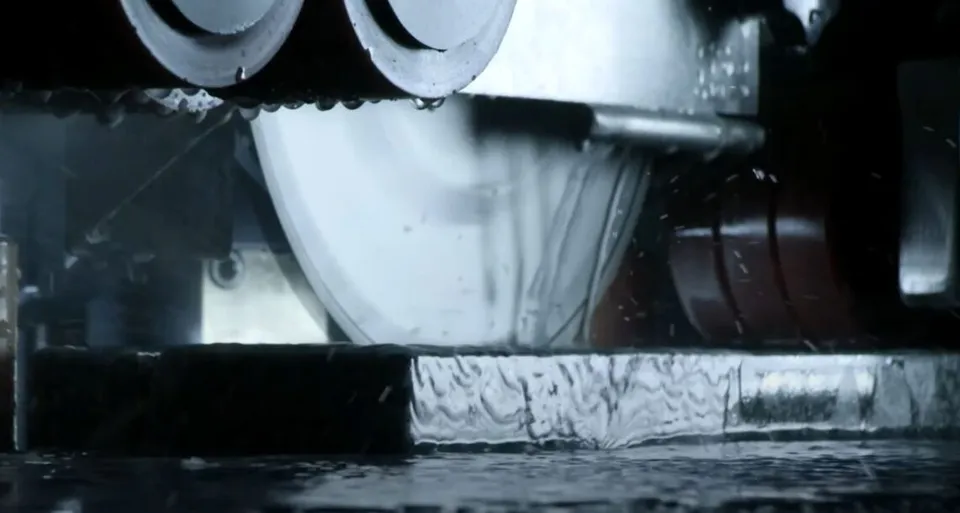

Feature 10

Feature 10

Omega 60

Designed and manufactured according to the up-to-date concepts and structural principles, the OMEGA series, automatic multispindle belt polishing machine, is remarkable for its performance and production on every kind of marble and granite. Its complete equipment allows it to perform all the finishing operations on the materials used in the building field, furnishings and monuments. On steps, window sills and other works with thickness from 10 to 60 mm (Omega 60) and from 10 to 100 mm (Omega 100) this machine is able to perform: calibration/gauging, straight edge, bevels, upper groove, lower groove, sloping cuts and their polishing, quirk miters (QM), slot cuts in general, bullnose, edges with regular round shapes (quarter bullnose, half bullnose, etc…). The machine can perform all the processing without the operator manual intervention.

Technical data

Frontal spindles6 n°
Bevelling spindles2 n°
Diameter of the gauging wheel260 mm
Diameter generating wheel130 mm
Diameter of the gauging wheel130 ÷ 150 mm
Diameter of the disc for upper/lower groove260 mm
Advancing/feed speed (conveyor belt)0 ÷ 3 m/1'
Conveyor belt width600 mm
Working thickness10 ÷ 60 mm
Minimum working width175 mm
Loading plane heigh950 mm
Power required45 kw
Dimensions (rollers excluded)5,7 x 2,3 x 2,2 m
Weight6000 kg
