Comandulli · Belt Edge Polishing
The evolution of a species
Benefits

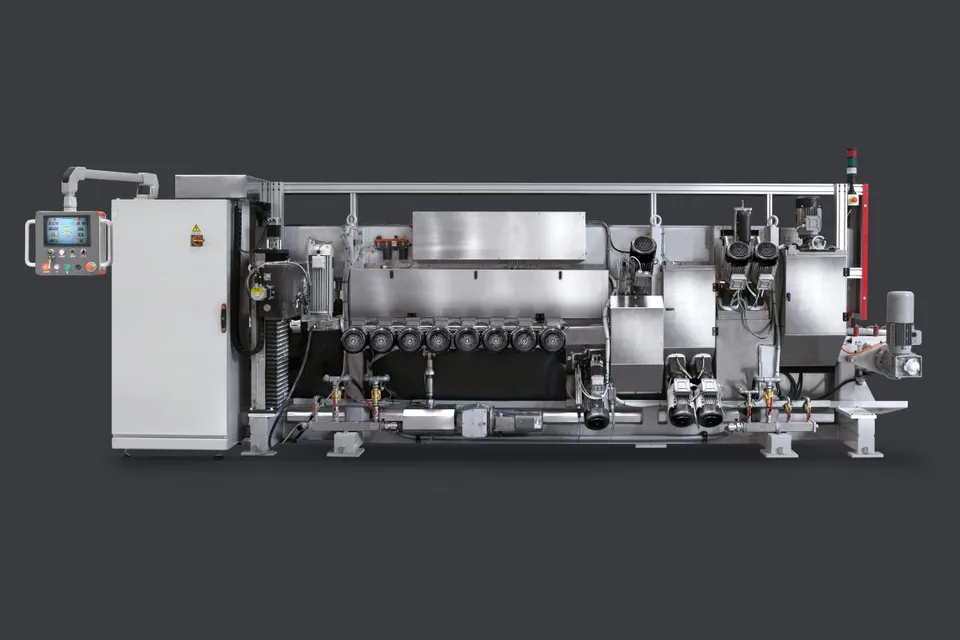

Backside of the machine

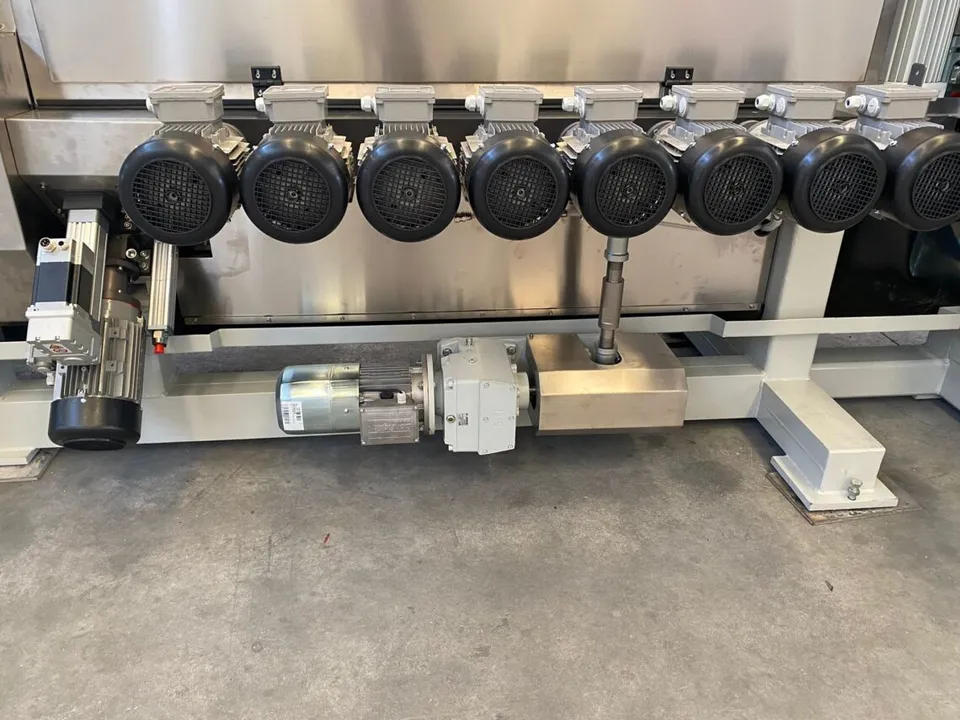

Multipurpose unit

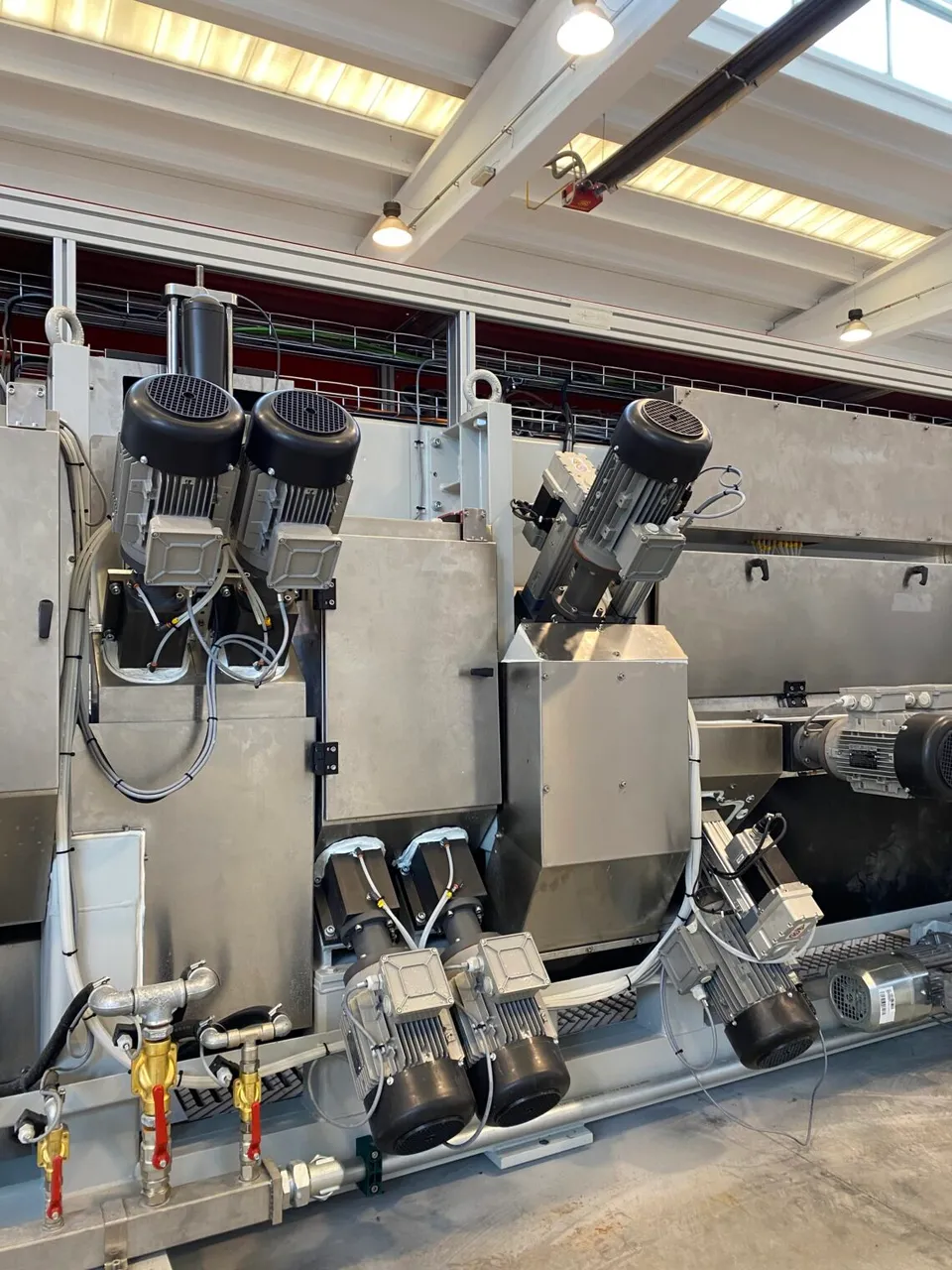

Polishing spindles

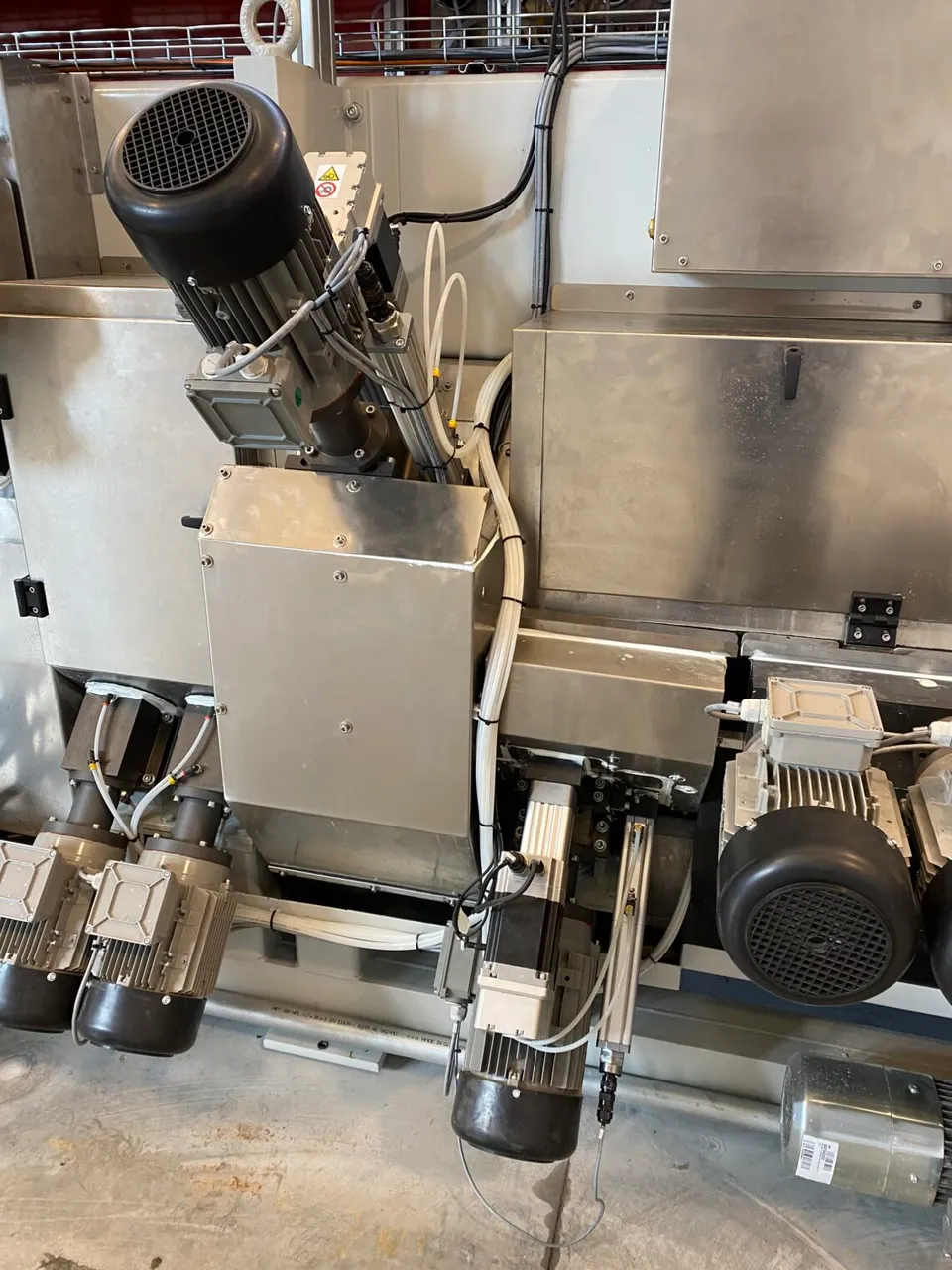

Bevelling units

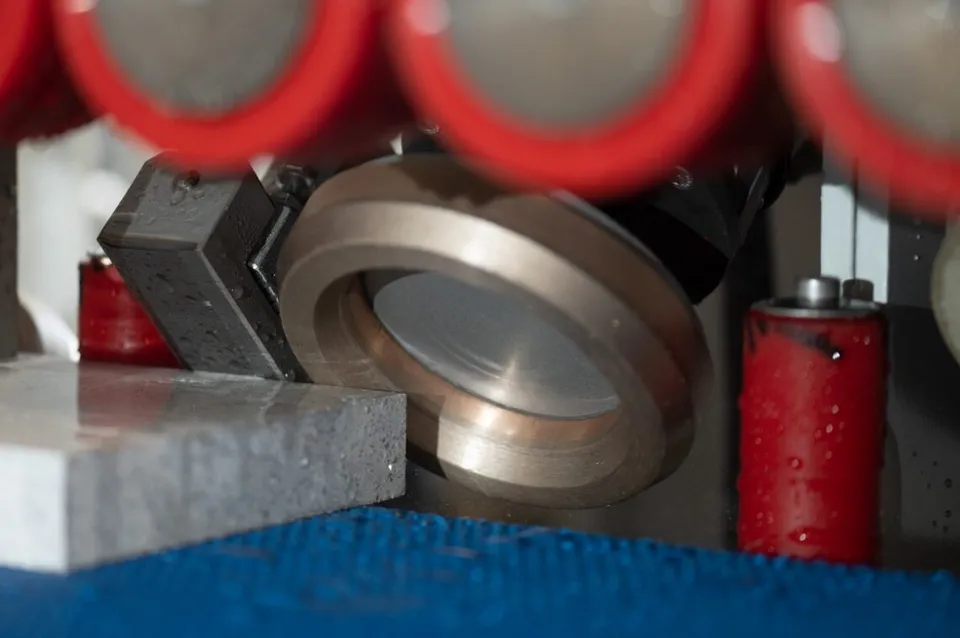

Device for calibrated bevel

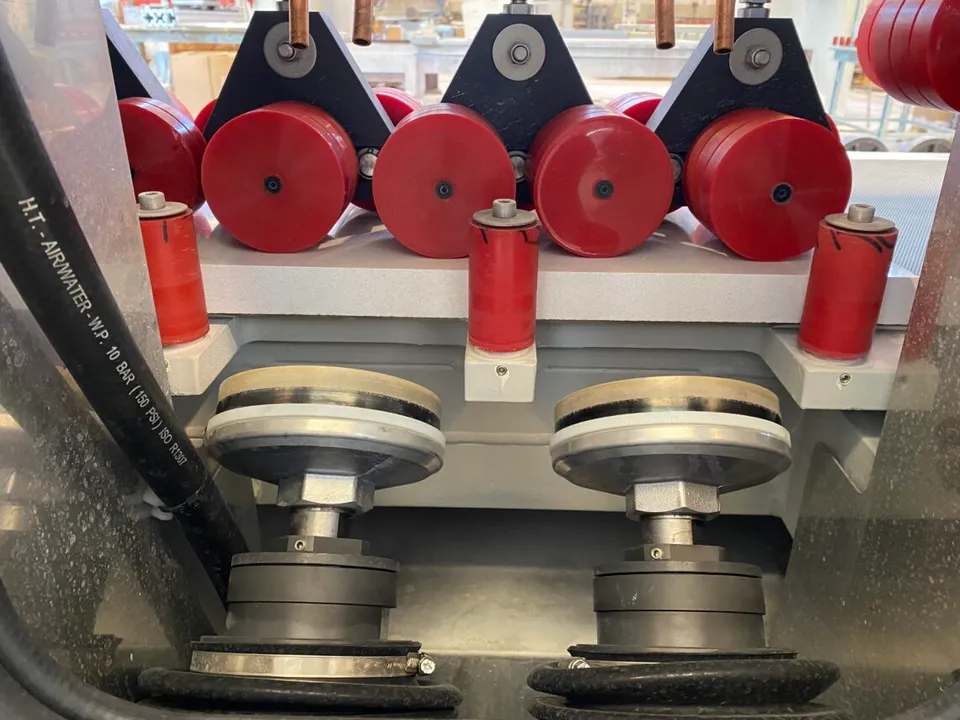

Calibratura smusso

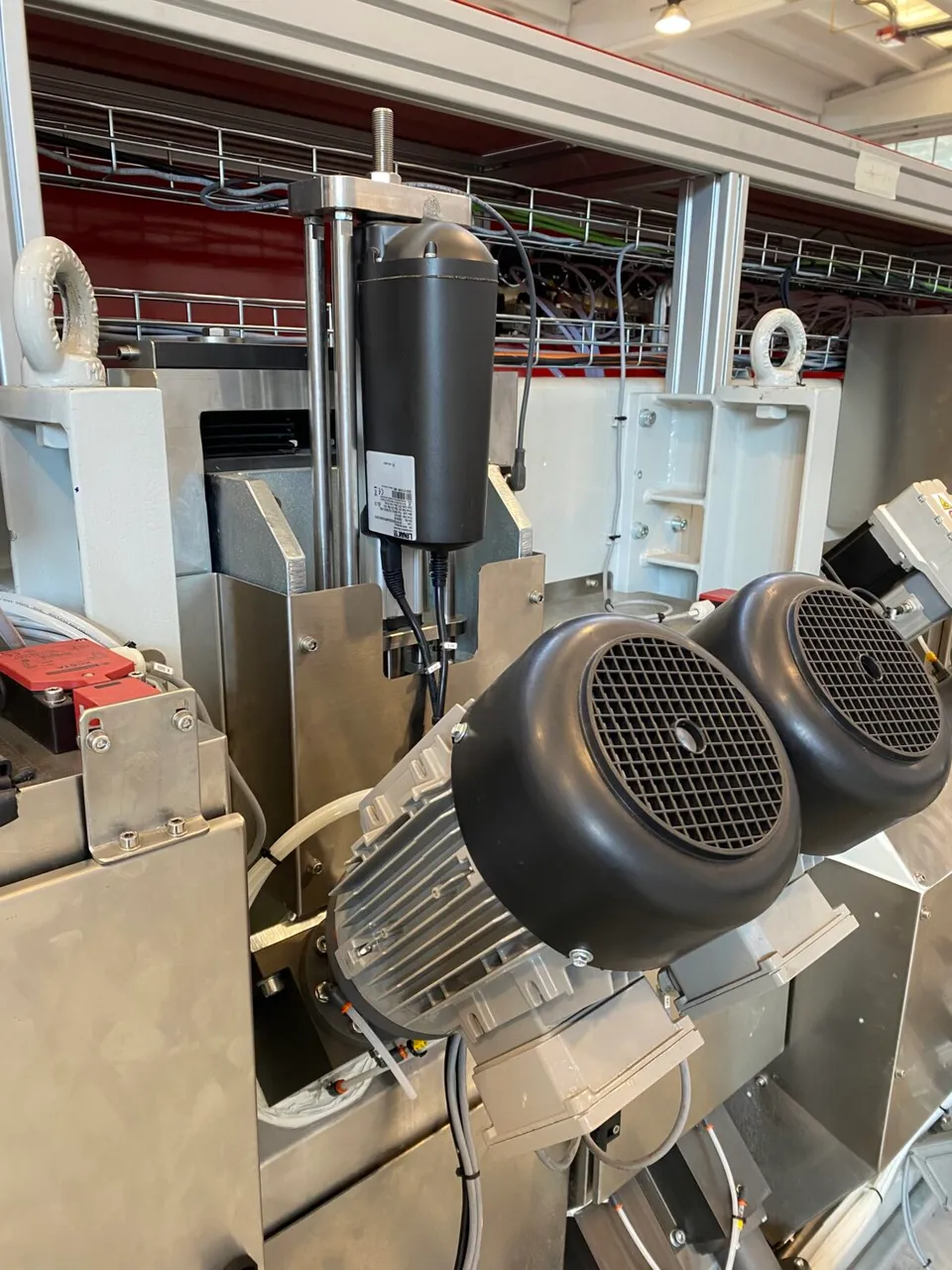

Lower bevelling unit

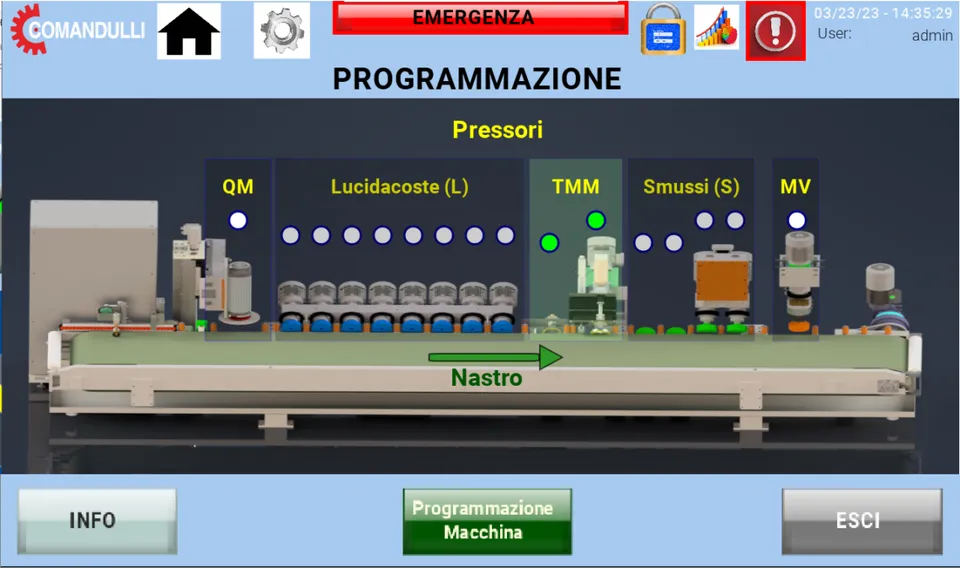

Automatic positioning of the upper bevelling units
Vertical spindle

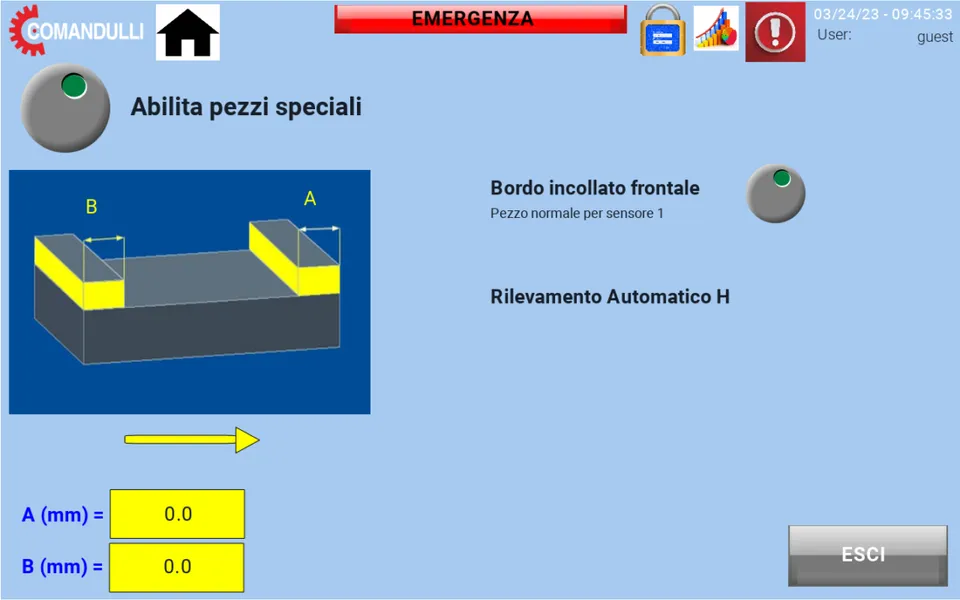

Vertical spindle working

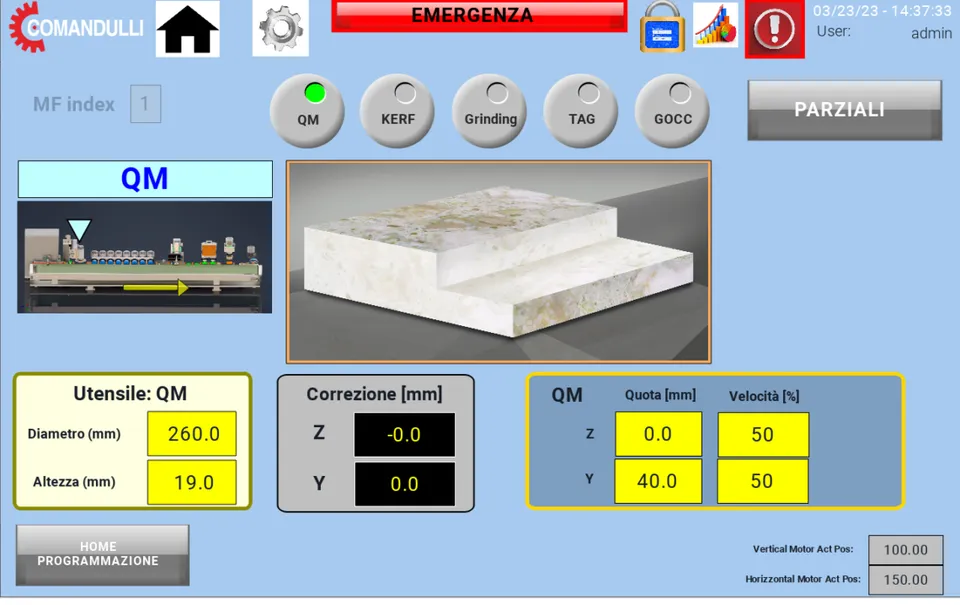

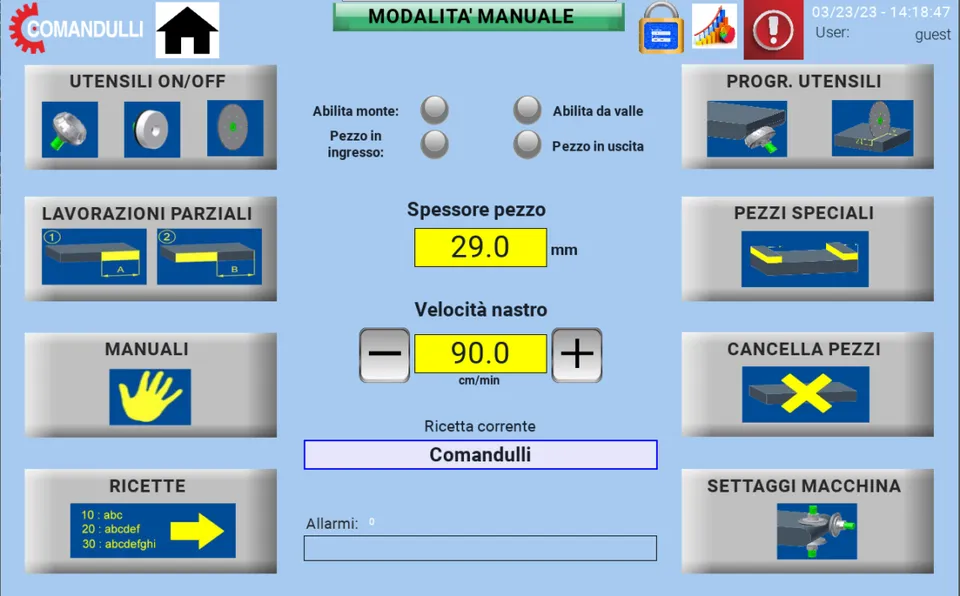

Programming of the spindles
Ruby
Ruby is an innovative, next-generation machine, the first of its kind from Comandulli.
Technical data
| Frontal spindles | 8 n° |
|---|---|
| Bevelling spindles with TMM4 for calibrated bevels | 2 n° |
| Bevelling spindles | 4 n° |
| Diameter calibrating wheel | 260 mm |
| Diameter polishing tools | 130 mm |
| Diameter cutting blade | 165 mm |
| Belt speed | 0 - 3 m/1' |
| Belt width | 600 mm |
| Processable slab thickness | 5 - 80 mm |
| Minimum width | 60 mm |
| Belt height | 780 mm |
| Total power installed | 24 kW |
| Dimensions (excluded roller tables) | 5,5 x 1,8 x 1,7 m |
| Weight | 4500 kg |
Features
