Dal Prete · Air Treatment

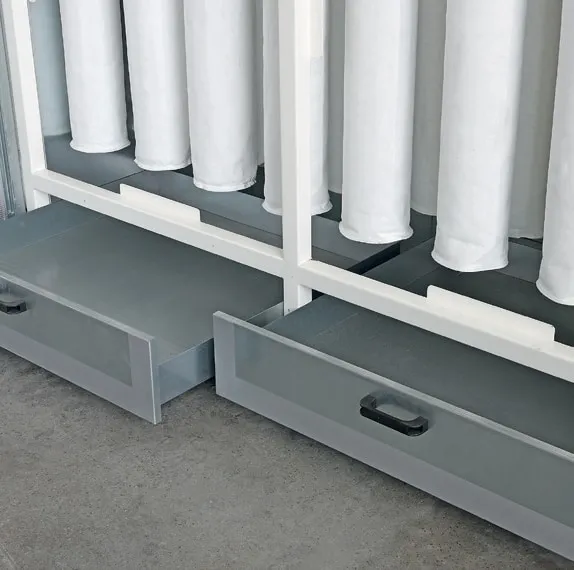

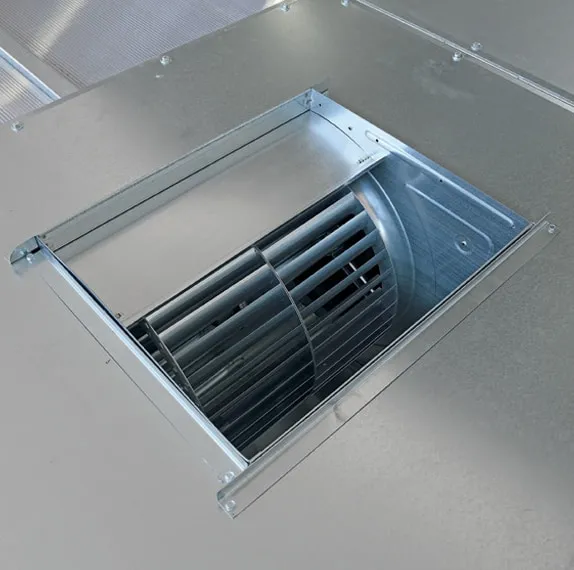

The DRY model wall-mounted air purifier works in a simple way: dust-laden air, drawn in by internal fans, passes through cartridge filter units that trap the dust and cause it to fall into the drawers below.
Designed for
• If you want to reduce the presence of dust generated by dry processing. • If you want to maintain high air quality in a humidity-free work environment.
Benefits
Extremely intuitive and simple maintenance. Save time and reduce human error.

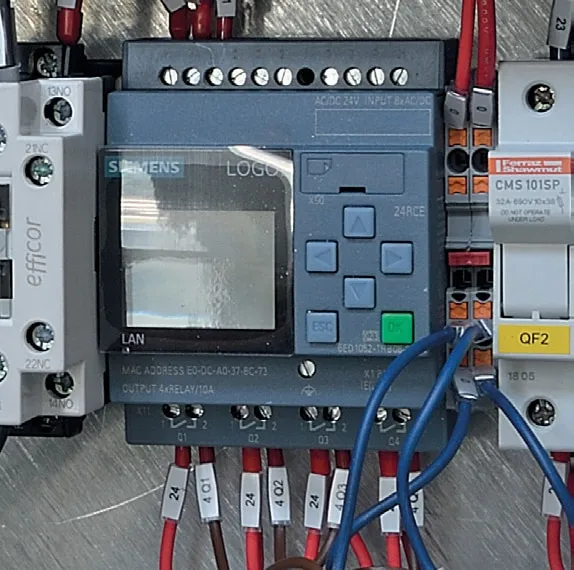

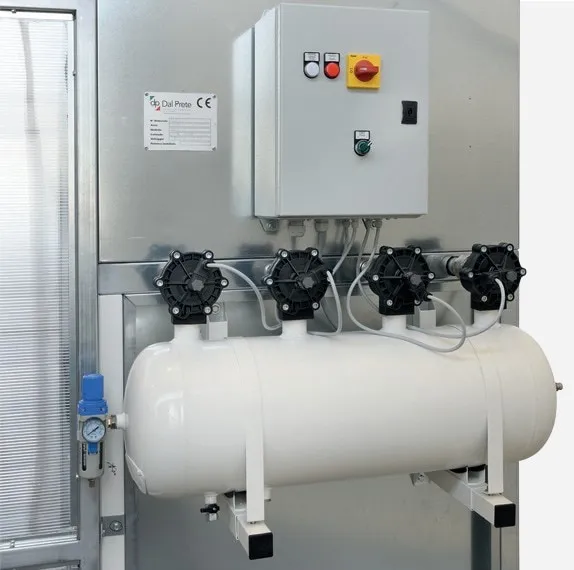

Equipped with an automatic cleaning cycle. Minimal operator intervention required.
High air filtration level. Lower risk of silicosis, protecting operator health.

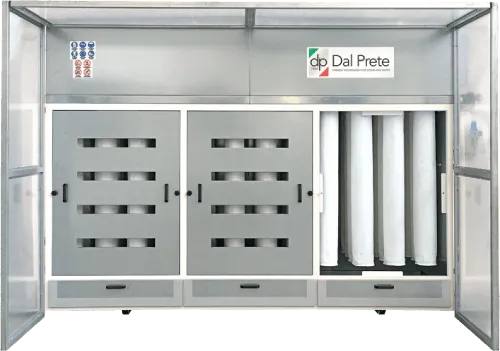

DRY Suction Wall
The DRY model wall-mounted air purifier works in a simple way: dust-laden air, drawn in by internal fans, passes through cartridge filter units that trap the dust and cause it to fall into the drawers below.
Technical data
| Air filtration efficiency | 99% |
|---|---|
| Purifier noise level in dB | 69 |
| Galvanized steel structure | 100% |
Details
Models
DRY 2 M
| Width | 2.000mm |
|---|---|
| Height | 2.350mm |
| Depth | 1.000mm |
| Fans | 1 |
| Power hp | 3,0 |
| m3/hour | 9.000 |
DRY 3 M
| Width | 3.000mm |
|---|---|
| Height | 2.350mm |
| Depth | 1.000mm |
| Fans | 1 |
| Power hp | 3,0 |
| m3/hour | 11.000 |
DRY 4 M
| Width | 4.000mm |
|---|---|
| Height | 2.350mm |
| Depth | 1.000mm |
| Fans | 2 |
| Power hp | 6,0 |
| m3/hour | 22.000 |
DRY 5 M
| Width | 5.000mm |
|---|---|
| Height | 2.350mm |
| Depth | 1.000mm |
| Fans | 2 |
| Power hp | 6,0 |
| m3/hour | 26.000 |
DRY 6 M
| Width | 6.000mm |
|---|---|
| Height | 2.350mm |
| Depth | 1.000mm |
| Fans | 2 |
| Power hp | 6,0 |
| m3/hour | 33.000 |
Customizations
- Length and width.
- Number of fans.
- Suction from both sides.
Accessories
- Plenum.
- External box.
- Side extensions.
- External suction arm.
