Dal Prete · Air Treatment

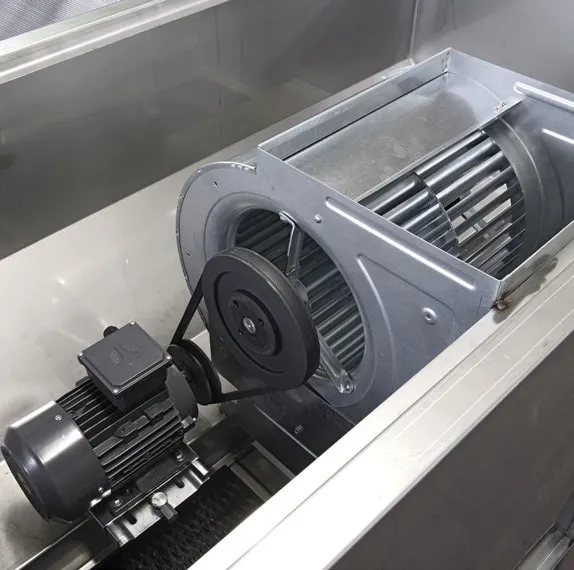

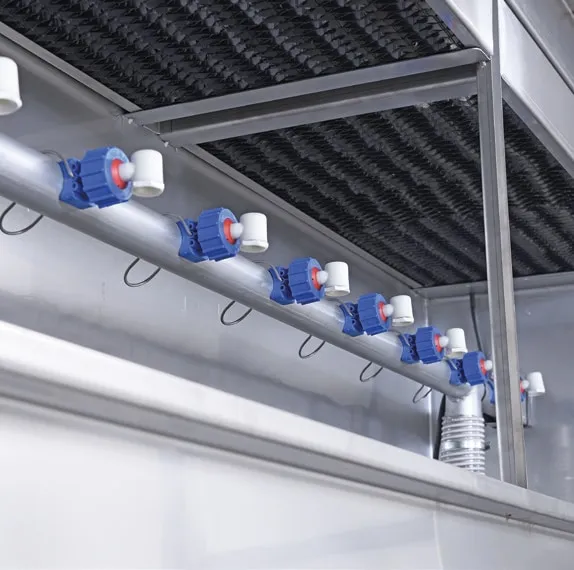

The IWATER model wall-mounted air purifier works in a simple way: dust-laden air is drawn in by dedicated fans inside the cabin. Here, nebulized water weighs down the dust and causes it to settle into the lower tank.
Designed for
• If you want to reduce the presence of dust resulting from dry processing.
Benefits
Extremely intuitive and simple maintenance. Save time and reduce human error.
Internal water nebulization. Dry external environment.
High air filtration level. Lower risk of silicosis, protecting operator health.

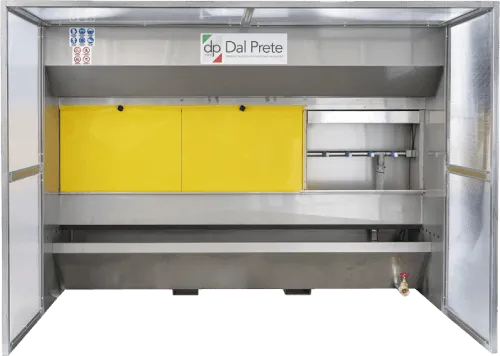

IWATER Suction Wall
The IWATER model wall-mounted air purifier works in a simple way: dust-laden air is drawn in by dedicated fans inside the cabin. Here, nebulized water weighs down the dust and causes it to settle into the lower tank.
Technical data
| Air filtration efficiency | 98.3% |
|---|---|
| Purifier noise level in dB | 69 |
| Stainless steel structure | 100% |
Details
Models
IWATER 2 M
| Width | 2.000mm |
|---|---|
| Height | 2.350mm |
| Depth | 1.000mm |
| Fans | 1 |
| Power hp | 4,2 |
| m3/hour | 9.000 |
IWATER 3 M
| Width | 3.000mm |
|---|---|
| Height | 2.350mm |
| Depth | 1.000mm |
| Fans | 1 |
| Power hp | 4,2 |
| m3/hour | 11.000 |
IWATER 4 M
| Width | 4.000mm |
|---|---|
| Height | 2.350mm |
| Depth | 1.000mm |
| Fans | 2 |
| Power hp | 8,0 |
| m3/hour | 22.000 |
IWATER 5 M
| Width | 5.000mm |
|---|---|
| Height | 2.350mm |
| Depth | 1.000mm |
| Fans | 2 |
| Power hp | 8,0 |
| m3/hour | 26.000 |
IWATER 6 M
| Width | 6.000mm |
|---|---|
| Height | 2.350mm |
| Depth | 1.000mm |
| Fans | 2 |
| Power hp | 8,0 |
| m3/hour | 33.000 |
Customizations
- Length and width.
- Number of fans.
- Suction from both sides.
Accessories
- Plenum.
- External box.
- Side extensions.
- External suction arm.
