Dal Prete · Water Treatment

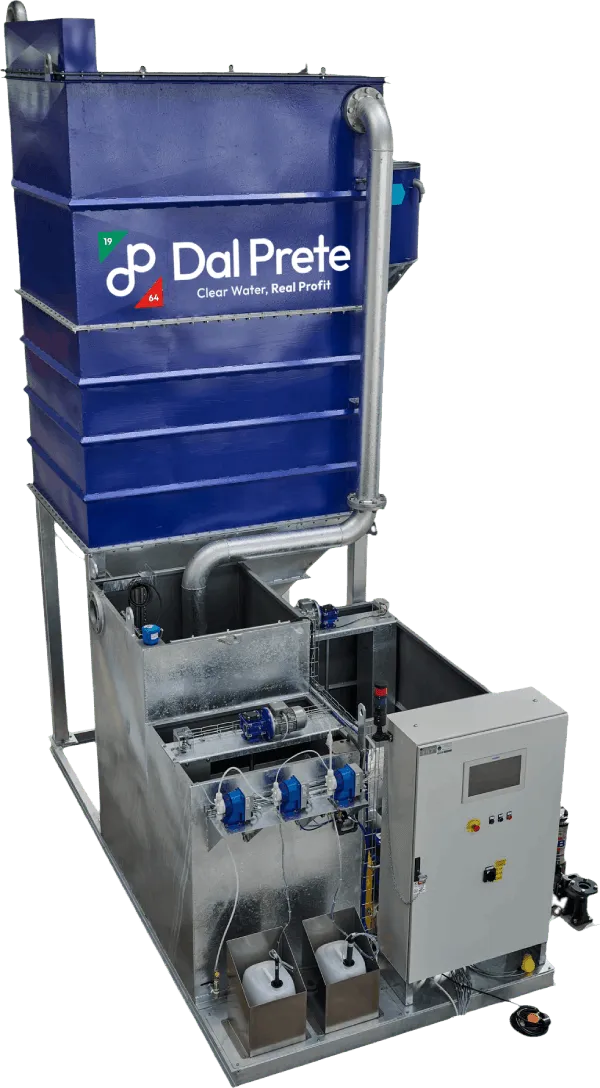

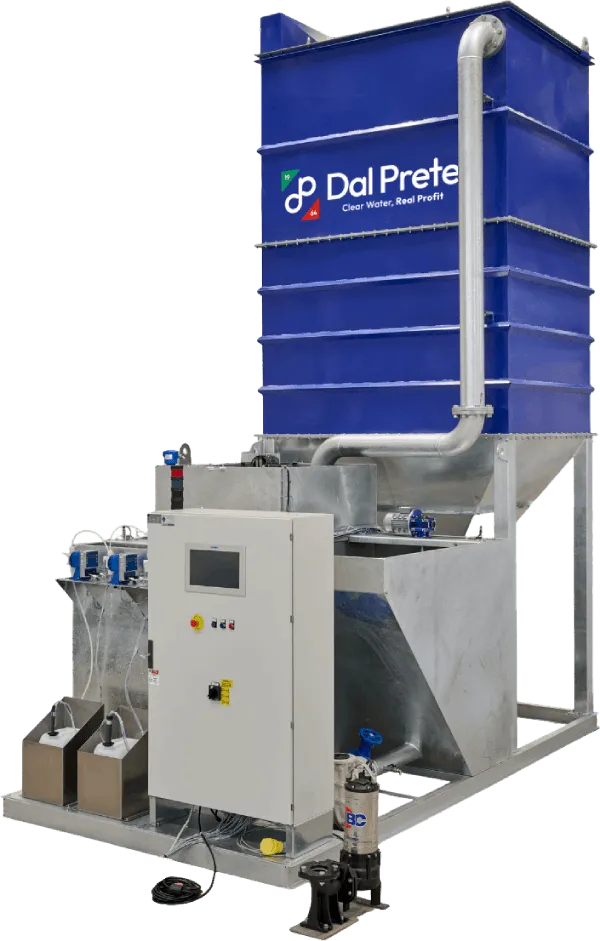

The Maxi S-Compact 3.1 is the Dal Prete plant designed to handle high volumes of water. Equipped with an extendable filter press and centralized controls, it offers high automation and consistent performance.
Designed for
• You are a company combining slab processing with block cutting. • You frequently process large thicknesses.
Benefits
Two pre-assembled blocks. Save space.

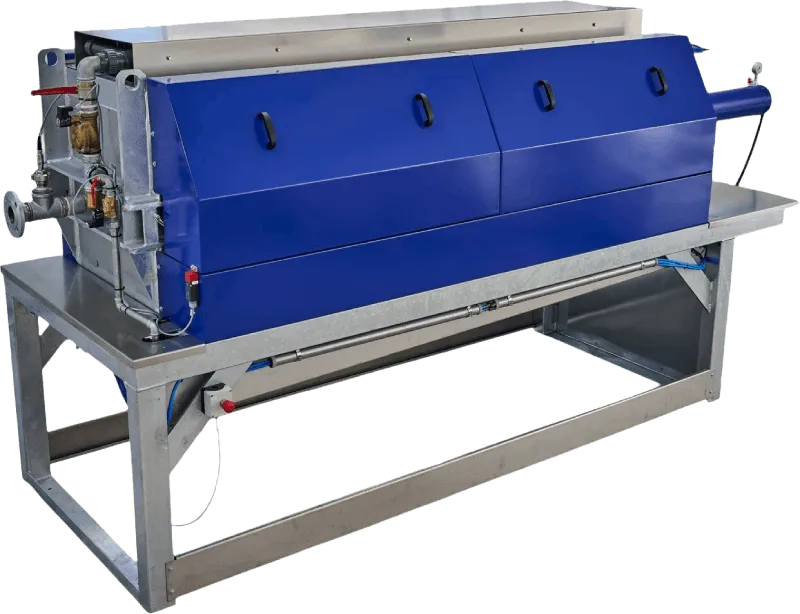

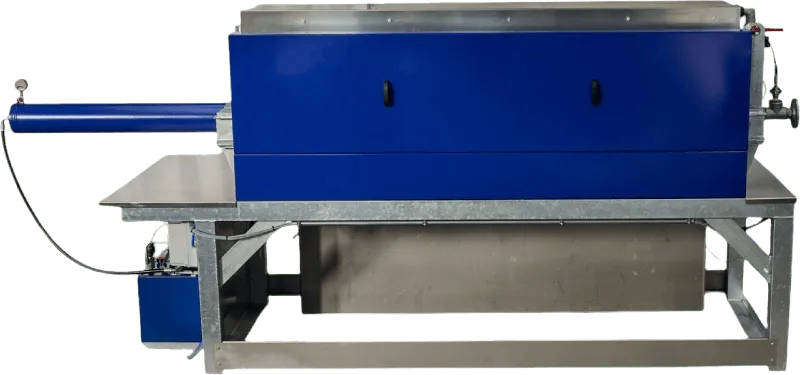

Filter press with independent structure. Full installation flexibility.
Schedulable automatic operations. Save time.
Integrated clarification and dehydration. Ease of use.

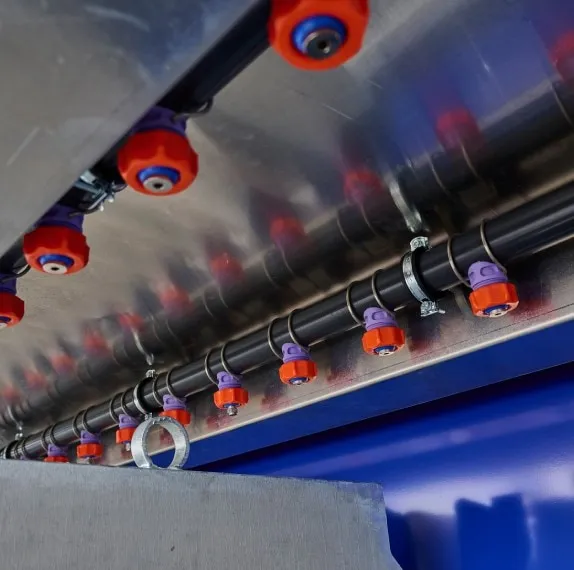

Automatic washing of the main accessories in contact with sludge. Long plant life.

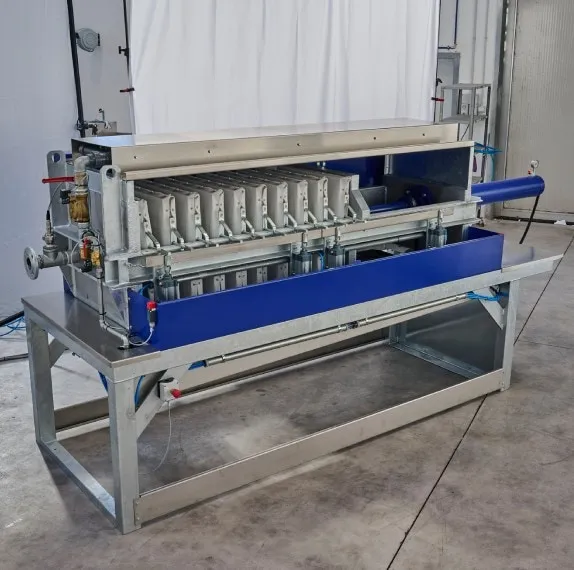

Extendable filter press from 10 to 15 plates. Adaptability to company growth.

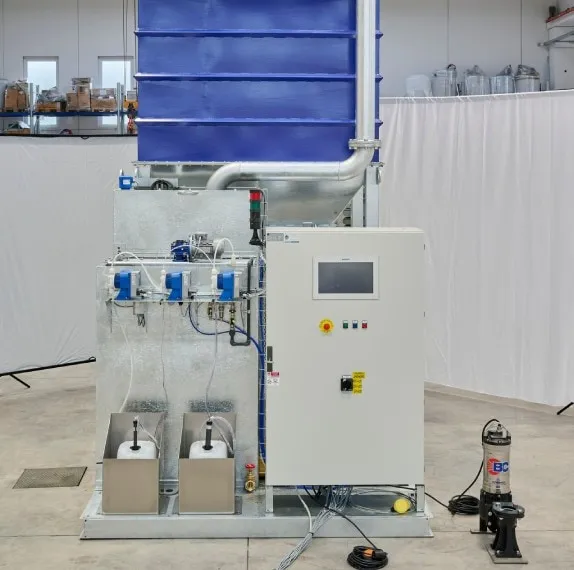

Automatic preparation and dosing of flocculant. Savings on chemical costs and elimination of human error.
Ready for 3-product dosing. Adaptability to different water treatment needs.
Series installation. Clarified water increases as needed.
Maxi S-Compact 3.1
The Maxi S-Compact 3.1 is the Dal Prete plant designed to handle high volumes of water. Equipped with an extendable filter press and centralized controls, it offers high automation and consistent performance.
Technical data
| Clarified water production l/min | 1.000 |
|---|---|
| Pressed sludge production m3/h | 0,875 |
| Transport dimensions m | 12 |
| Filter press plates | 10 + 5 |
| Plate dimensions in millimeters | 630x630 |
| Total installed power kW | 24 |
| On request |
|
Other features

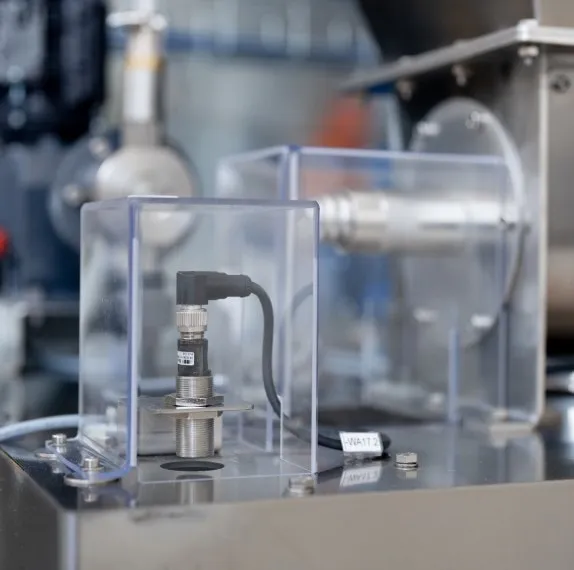

- Ultrasonic sensors and pressure transducer provide a digital signal to the plant’s software.

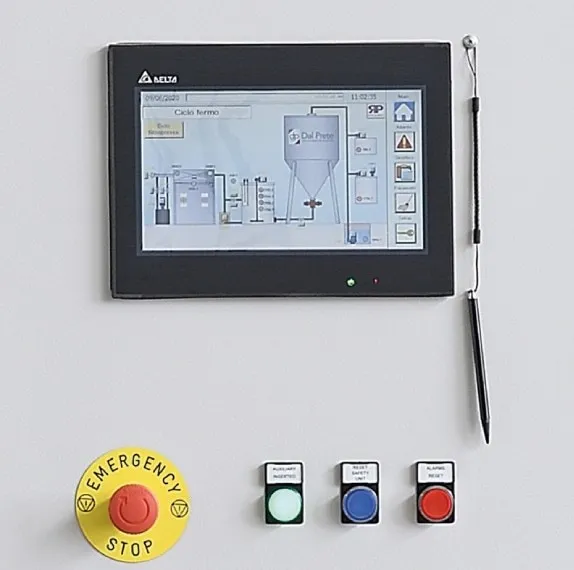

- 15,6” touch screen with intuitive software. Remote control.
- Maintenance reminder service. IP55 protection against dust and water jets.
Details
