Dal Prete · Water Treatment

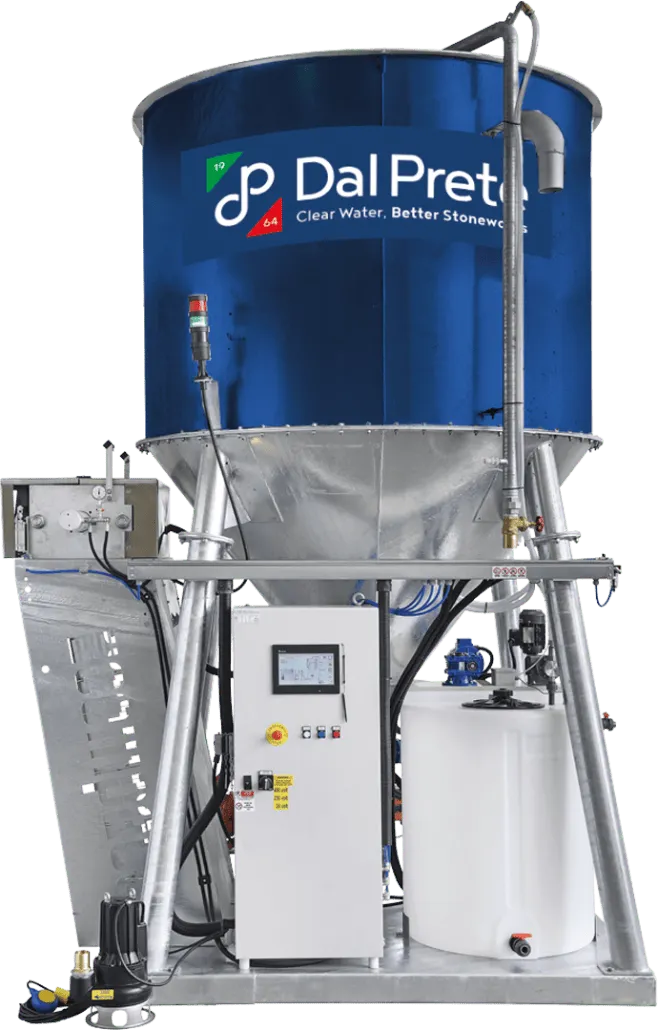

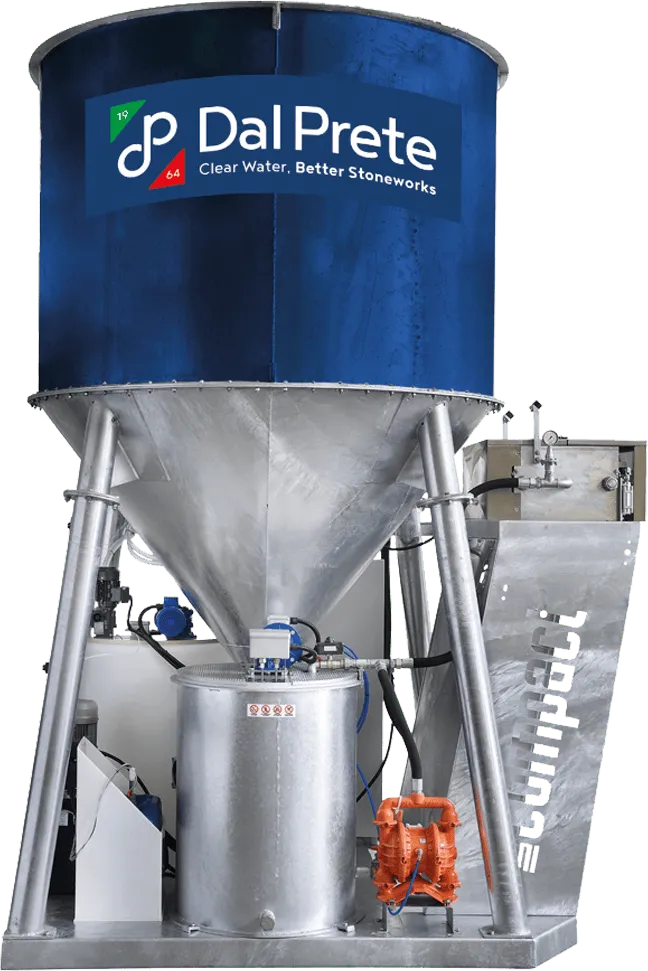

The Mini Compact M 2.1 is the second-largest unit in the range of compact systems by Dal Prete.
Designed for
• installing new machines to shift from artisanal to industrial production. • but generates little sludge.
Benefits
Single block of only 6 m2 Saves space.
Automated operations. Saves time and reduces human error.
The resulting waste is dewatered sludge. Keeps the workplace clean.
Integrated clarification and dewatering. Easy to use.
10” touchscreen with D•PURE 2.1 software. Full control.
Series installation. Clarified water increases as needed.

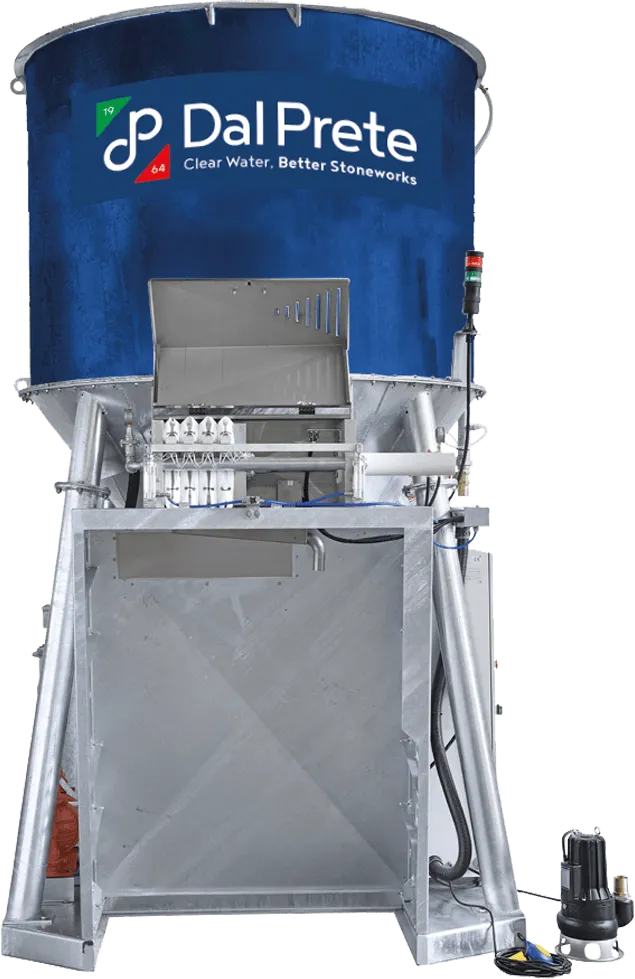

Mini Compact M 2.1
The Mini Compact M 2.1 is the second-largest unit in the range of compact systems by Dal Prete.
Technical data
| Clarified water output l/min. | 300 |
|---|---|
| Pressed sludge output m3/h | 0,1 |
| Transport footprint m | 4,5 |

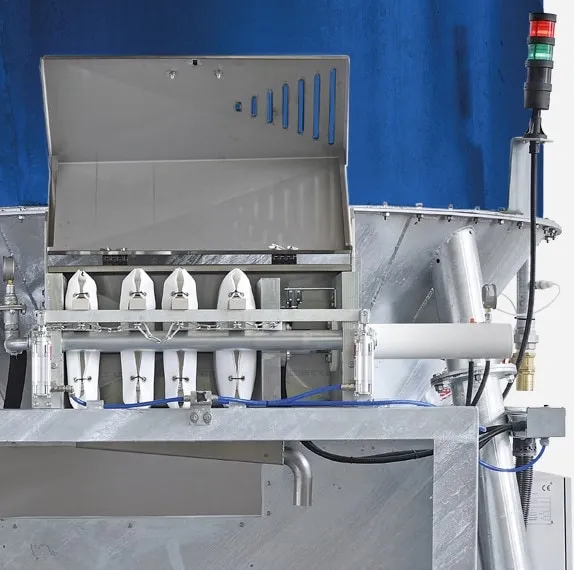

| Filter press plates | 4 |
| Plate dimensions in millimetres | 300x300 |
| Total installed power kW | 6,5 |
| On request |
|
Other features
- IP55 protection against dust and water jets.
- Shipped in two parts: the cylinder and the platform containing all components.

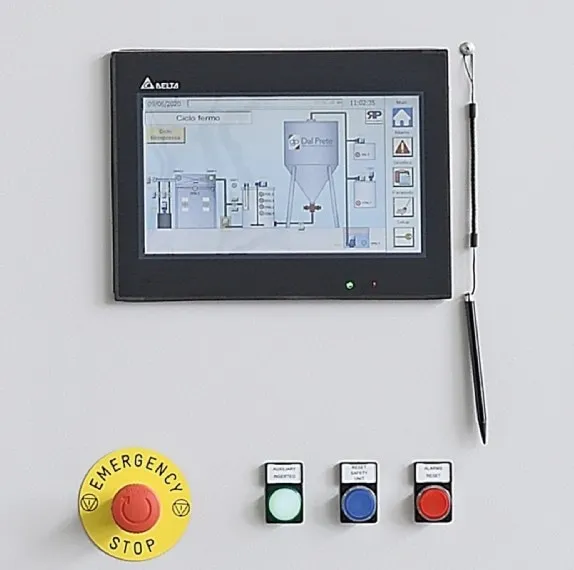

- 10” touchscreen for viewing and controlling all system components.
- Alarm management with alerts on the integrated touchscreen and optionally via SMS.
- Fully automated control of clarification and dewatering cycles.
- Scheduling of dewatering cycles based on production needs.
- Optional LAN connection.
- Customizable software.
